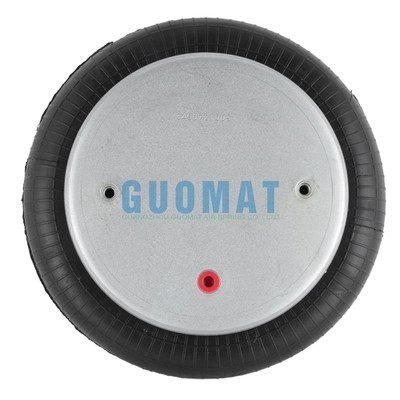

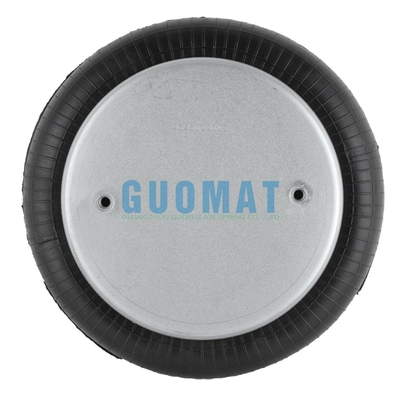

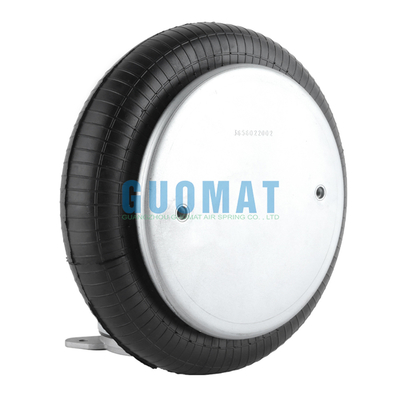

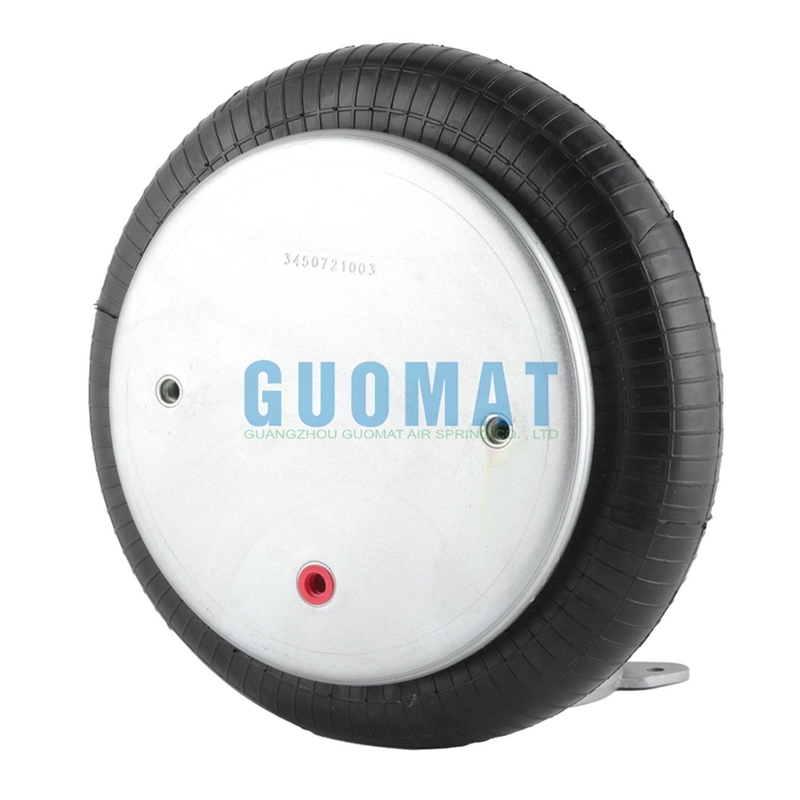

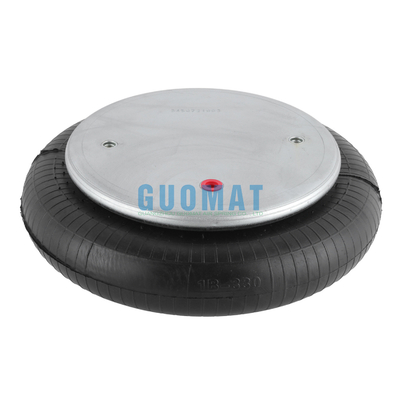

Firestone Industrial Air Spring W01-358-7008 1/4 NPT Air Inlet Air Shock Absorber

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B7008

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B7008	Function:	Reduce Shock
Condition:	Brand New	Trademark:	GUOMAT
Type:	Gas-Filled	Minimum Height:	2.0 Inches
Maximum Height:	6.0 Inches	Car Make:	For Truck Cab
Highlight:	Firestone Industrial Air Spring , W01-358-7008 Industrial Air Spring

Firestone Industrial Air Spring W01-358-7008 1/4 NPT Air Inlet Air Shock Absorber

Product Specification

Cover Plate
Top Cover Plate Diameter: 9.0 in.
Screw Center Distance of Top Cover Plate: 6.20 in.
Bottom Cover Plate Diameter: 9.0 in.
Screw Center Distance of Bottom Cover Plate: 6.20 in.

Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts
Bottom Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts

Gas Hole/Air Inlet/Air Fitting
Gas Hole: 1/4 NPT

Rubber Bellow
Rubber Bellow Max. Diameter: 12.9 in.
Minimum Height: 2 in.
Maximum Height: 6 in.

Exchange Number

Firestone	W01-358-7008, W013587008, W01/358/7008 w013587008, w01-358-7008, w01/358/7008
Contitech	FS330-11474, FS 330-11474, fs330-11474
Goodyea	1B12-300, 1B 12-300, 1B12-313, 1B 12-313
Triangle	6374, 4474
Holland	90557226, 9055 7226

Every Standard Air Spring Consists of 4 Layers

The inner layer which actually contains the air.
The first layer of fabric reinforced rubber applied at a specific angle.
The second layer of fabric reinforced rubber which is laid to a specific angle to the first layer.
The cover to protect the bias fabric plies.

Firestone Style 19 Bellows Has Other OEM Numbers

Blind nuts, 1/4 NPT

W01-358-7008, W01 358 7008, W013587008, WO1-358-7008, WO1 358 7008, WO13587008

Blind nuts, 1/4 NPT, bumper

W01-358-7009, W01 358 7009, W013587009, WO1-358-7009, WO1 358 7009, WO13587009

Blind nuts, 3/4 NPT

W01-358-7011, W01 358 7011, W013587011, WO1-358-7011, WO1 358 7011, WO13587011

Blind nuts, 3/4 NPT, bumper

W01-358-7012, W01 358 7012, W013587012, WO1-358-7012, WO1 358 7012, WO13587012

Countersunk steel bead rings, 1^5/8bolts, nuts, washers

W01-358-7023, W01 358 7023, W013587023, WO1-358-7023, WO1 358 7023, WO13587023

Rubber bellows only

W01-358-0134, W01 358 0134, W013580134, WO1-358-0134, WO1 358 0134, WO13580134

Advantages

100% Brand New
Durable and long service life.
Direct replacement for your old or broken one, easy installation.
Built to meet standard specification, strictly follow factory quality control.
Due to the light and screen difference, the item's color may be slightly different from the pictures.
