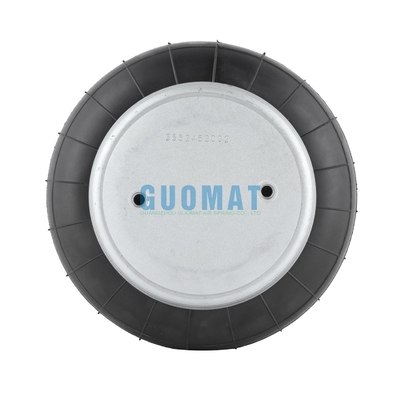

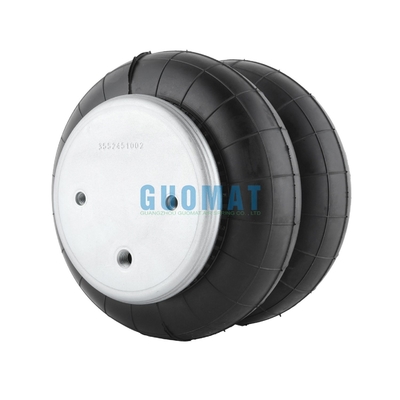

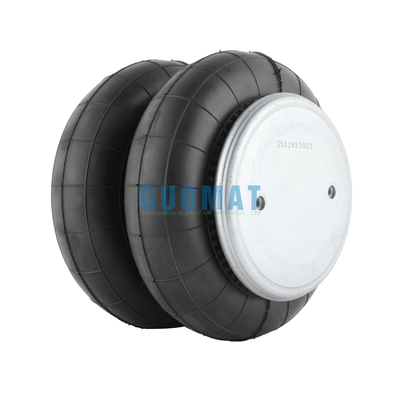

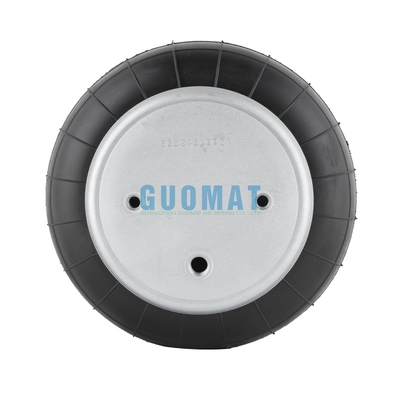

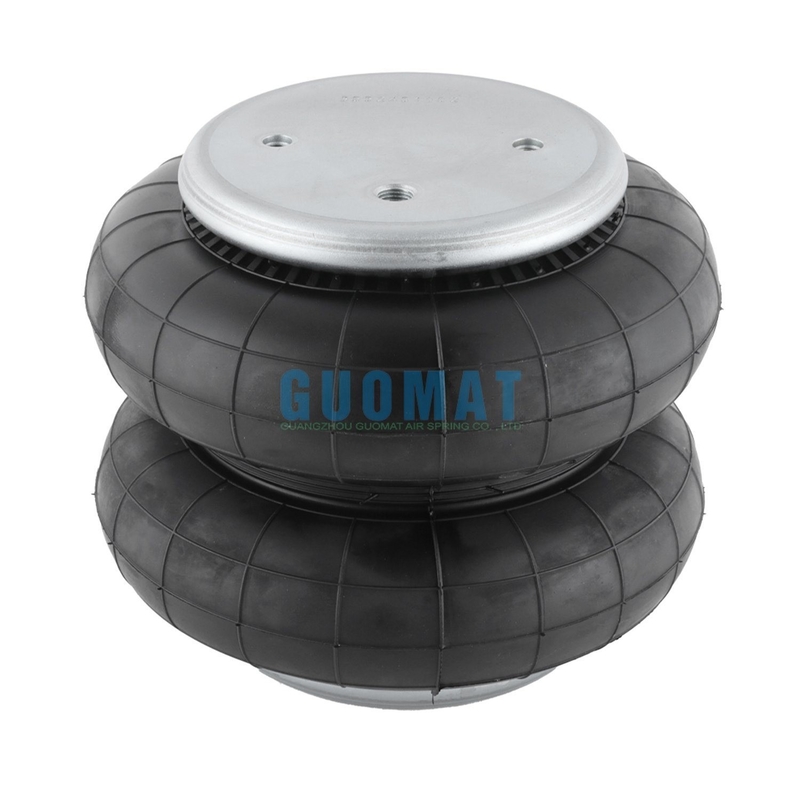

W01-358-6910 Firestone Double Convoluted Air Spring For Industrial Machine Bellows # 20

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6910

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product:	Air Suspension Spring Assembly \| Customized Request	Material:	Rubber And Steel
Warranty:	12 Months	Convolutions:	2
Cross Firestone:	W013586910	Goodyear:	2B9-200/2B9-202/2B9-216
Fitment:	Industrial Machine	Spring Weight:	305KG
Highlight:	Firestone Double Convoluted Air Spring , W01-358-6910 Double Convoluted Air Spring

W01-358-6910 Firestone Double Convoluted Air Spring For Industrial Machine Bellows# 20

Product Details

Type	Industrial Air Spring	GUOMAT	2B6910
Material	Rubber and Steel	Warranty	12 Months
Rubber Type	Natural Rubber	MOQ	1 Piece

Exchange Number

FIRESTONE W01-358-6910/W01 358 6910/W013586910
FIRESTONE WO1-358-6910/WO1 358 6910/WO13586910
CONTITECH FD 200-19 320/FD200-19 320
GOODYEAR 2B9-200/2B 9-200/2B 9 200
GOODYEAR 2B9-202/2B 9-202/2B 9 202
GOODYEAR 2B9-216/2B 9-216/2B 9 216
GOODYEAR 578423202/578 423 202/578-423-202
TRIANGLE 6325/4320
TAURUS KF218-6910/KF 218-6910
Brake&Wheel M3501
Dina A812719
Dina AZ812719
Dayton 3546910
Leland Sc2011

Every Standard Air Spring Consists of 4 Layers

•The inner layer which actually contains the air.

•The first layer of fabric reinforced rubber applied

at a specific angle.

•The second layer of fabric reinforced rubber which

is laid to a specific angle to the first layer.

•The cover to protect the bias fabric plies.

Technical Data: GUOMAT 2B6910 Double Convoluted Suspension Air Sping

Max stroke: 200 mm
Max load at 7 bar: 22.4 kN
Max diameter at 7 bar: 252 mm
Max height: 279 mm
Min height: 79 mm
Recommended max working height: 225 mm
Plate diameter: 160 mm
Mounting thread: 3/8-16
Plate material: Galvanized steel
Air connection: NPT 1/4"
Temperature range: -40 to + 70°C

Description		Assembly Order No.
Style 274	Blind nuts, 1/4 NPT	W01-358-6910
Style 274	Blind nuts, 1/4 NPT, bumper	W01-358-6911
Two Ply Bellows	Blind nuts, 3/4 NPT	W01-358-6900
	Blind nuts, 3/4 NPT, bumper	W01-358-6901
	Countersunk steel bead rings,1 3/4 bolts,nuts,washers	W01-358-6923
	Rubber bellows only	W01-358-0138

Force Table
Assembly Height(in.)	Volume@100 PSIG(m3)	Pounds Force
Assembly Height(in.)	Volume@100 PSIG(m3)	@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
9.0	392	392	770	1195	1642	2114
8.0	365	576	1128	1713	2309	2940
7.0	331	707	1396	2104	2832	3582
6.0	291	806	1601	2410	3237	4082
5.0	247	903	1796	2702	3624	4562
4.0	197	993	1966	2953	3948	4958
