GUOMAT 1B8X4 Presses Convoluted Air Spring 1B8-550 Goodyear Rubber Air Bellows

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B8X4

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Cross Reference:	W01-358-7564	Package:	Strong Cartons
Warranty:	12 Year	Firestone Type:	116
Temperature Range:	- 40°C / +70°C	Air Connection:	1/4 NPT
Goodyear:	1B8-550
Highlight:	1B8X4 Presses Convoluted Air Spring , Convoluted Air Spring 1B8-550

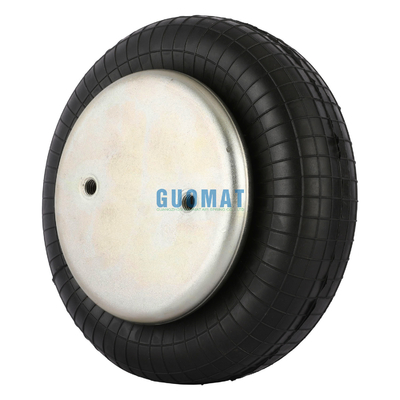

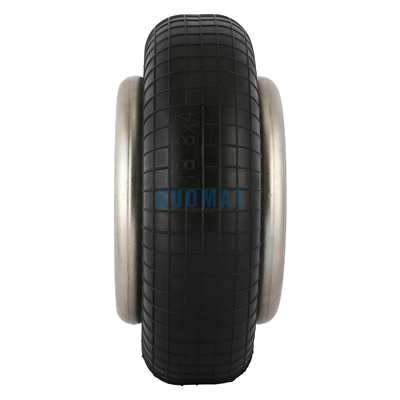

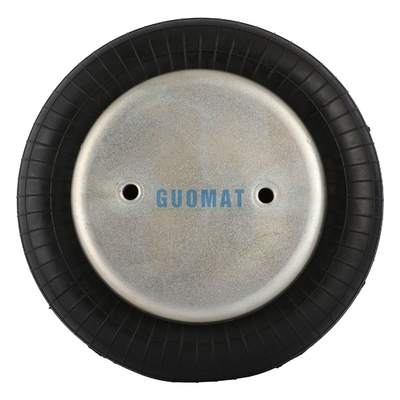

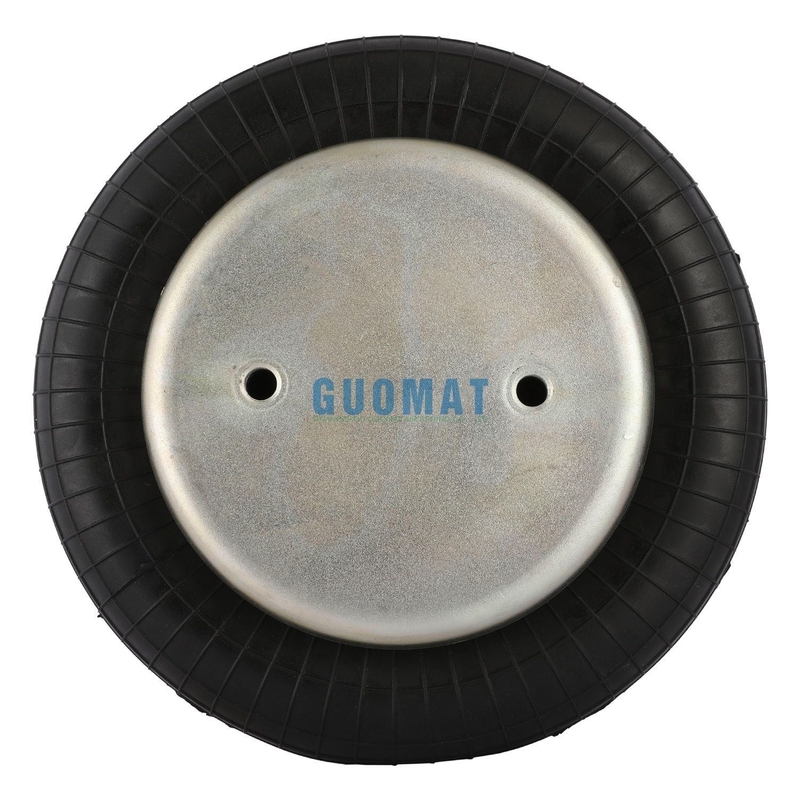

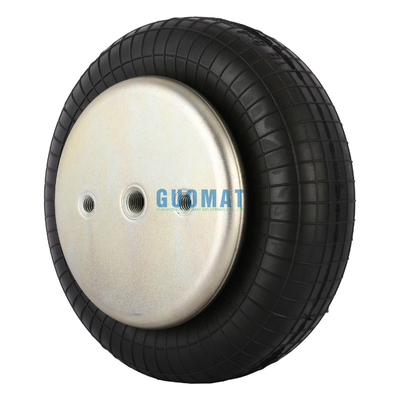

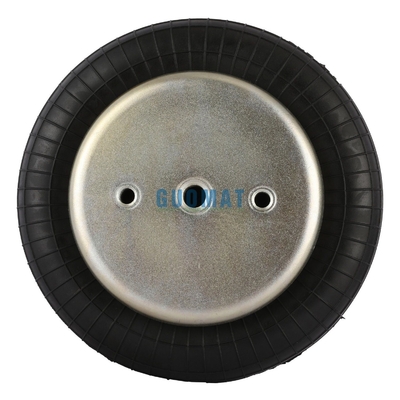

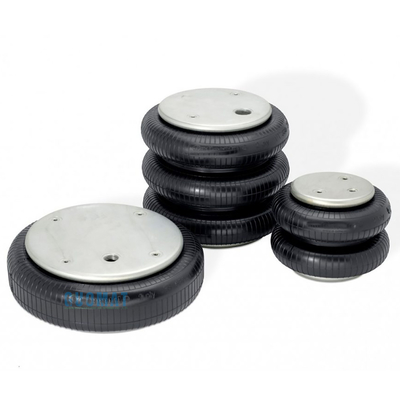

GUOMAT 1B8X4 Presses Convoluted Air Spring 1B8-550 Goodyear Rubber Air Bellows

Item Name	Single Convoluted Industrial Air Spring
Model Number	1B8x4
Factory Warranty	12 Months
Product Material	Natural Rubber and Steel
Package	Strong Carton Box
Delivery Time	2-8 working day
Product Weight	2.5kg
Fire-Stone	W01-358-7564 / W01 358 7564 / W013587564
Goodyear	1B8-550 / 1B 8-550
Contitech	FS120-10 / FS 120-10

Top Cover Plate Diameter : 135mm
Bottom Cover Plate Diameter : 135mm
Top Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC
Screw Center Distance of Top Cover Plate : 70mm
Bottom Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 70mm
Gas Hole : 1/4 NPTF
The Rubber Bellow MAX Diameter : 230mm
The Working Stroke : MAX 140mm To MIN 50mm
Maximum Height : 140mm
Minimum Height : 50mm
Compression Height : 90mm

Bellow cylinder W01-358-7564

Max. stroke: 4 in / 101 mm
Max. load: 3.41 psi / 16.55 kN
Max. diameter: 5.31 in / 231 mm
Max. height: 6 in / 152 mm
Min. height: 2 in / 51 mm
Recommended max. working height: 5.1 in / 130 mm
Plate diameter: 5.31 in / 135 mm
Mounting thread: 2x3/8-16 UNC
Air connection: 1/4 NPT
Bellows material: NR
Temperature range min./max.: - 40°C / +70°C
Style: 116

Description		Assembly NO.
Style 116	Blind nuts,1/4 NPT	W01-358-7564
Style 116	Blind nuts,3/4 NPT	W01-358-7561
Two Ply Bellows	Countersunk steel bead rings,1 3/4 bolt, nuts,washers	W01-358-7568
	Blind nuts with installed 1/4 tank valve	W01-A72-7518
	Rubber bellows only	W01-358-0133

Force Table

Assembly Height(in.)	Volume@100 PSIG(in3)	Pounds Force
Assembly Height(in.)	Volume@100 PSIG(in3)	@20 PSIG	@40 PSIG	@60 PSIG	@80 PSIG	@100 PSIG
5.0	161	290	600	970	1,370	1,800
4.0	135	52	1,050	1,630	2,210	2,820
3.0	102	650	1,310	2,000	2,690	3,410
