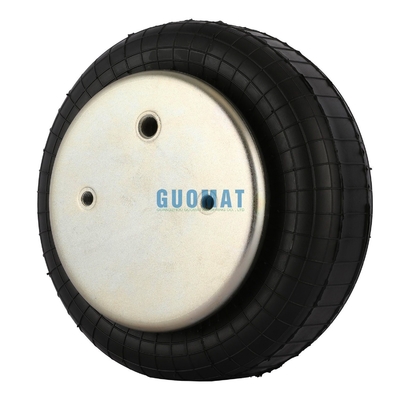

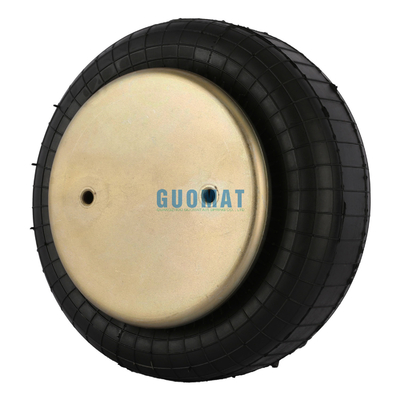

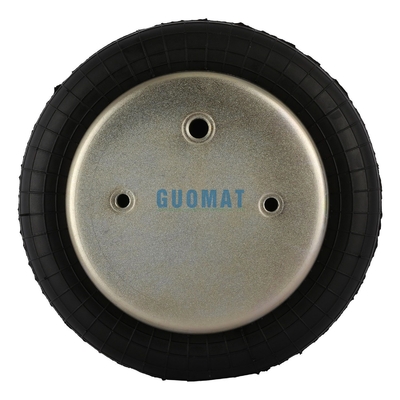

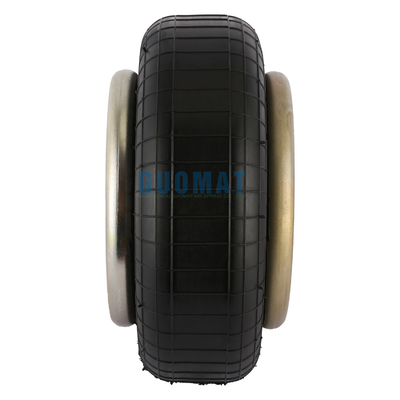

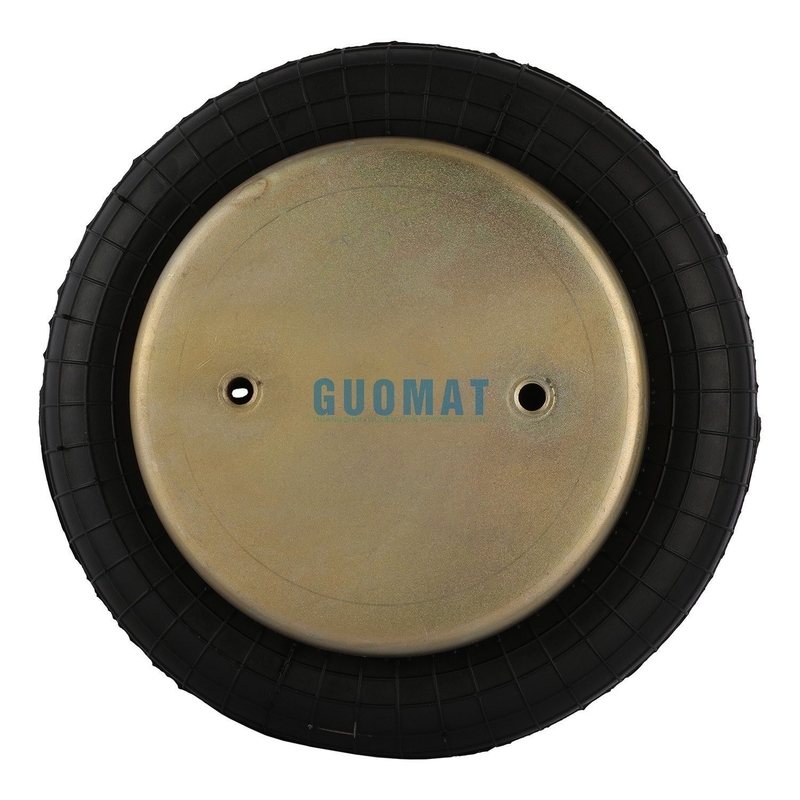

1B9-202 Goodyear Air Spring Single Convoluted Bellows For Industrial Lifting Air Bag

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B9X5

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B9X5	Function:	Reduce Shock
Quality:	100% Tested	Condition:	Brand New
OEM:	578 91 3 201	Warranty:	1 Year
Compressed Height:	2.3 Inches	Expanded Height:	5.9 Inches
Highlight:	1B9-202 Goodyear Air Spring , Single Convoluted Bellows Goodyear Air Spring

1B9-202 Goodyear Air Spring Single Convoluted Bellows For Industrial Lifting Air Bag

Product Specification

Usable Storke	3.6
Max Dia @ 100 psi In	11.0
Min Height Inches	2.3
Max Height Inches	5.9
Bumper	NO
Air Fitting Size (in)	1/4 OS

Product Details

GUOMAT 1B9X5
GOODYEAR 1B9-202 / 1B 9-202 / 1B9 202
GOODYEAR 578913201 / 578 91 9 201 / 578-91-9-201
ENIDINE YI-1B9-202 / YI 1B9 202 / YI1B9-202

Single Convoluted Type Air Spring

Part Number	Usable Storke	Max Dia @ 100 psi In	Min Height Inches	Max Height Inches	Bumper	100 psi	80 psi	60 psi	40 psi	100 psi	80 psi	60 psi	40 psi	Air Fitting Size (in)
Part Number	Usable Storke	Max Dia @ 100 psi In	Min Height Inches	Max Height Inches	Bumper	Force Available At Actuator Height Limit (Pounds)				Force Available At Compressed Height Limit (Pounds)				Air Fitting Size (in)
1B9-202	3.6	11.0	2.3	5.9	NO	1575	1215	875	560	5625	4500	3350	2225	1/4 OS
1B9-204	3.6	11.0	2.3	5.9	NO	1575	1215	875	560	5625	4500	3350	2225	1/2 OS
1B9-205	2.7	11.0	3.2	5.9	YES	1575	1215	875	560	5130	4500	33045	2010	1/2 OS
1B9-207	3.6	11.0	2.3	5.9	NO	1575	1215	875	560	5625	4500	3350	2225	3/4 OS
1B9-208	2.7	11.0	3.2	5.9	YES	1575	1215	875	560	5130	4090	3045	2010	3/4 OS
1B12-301	13.2	4.6	2.6	7.2	YES	3640	2710	1840	1095	9035	7110	5250	3480	1/4 OS
1B12-304	13.2	4.9	2.3	7.2	NO	3640	2710	1840	1095	9195	7185	5305	3520	3/4 OS

Advantages

Excellent materials
Effective shock
In situ installation
Comfortable and stable
Long life
Slove the abnormal noise

FAQ

Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

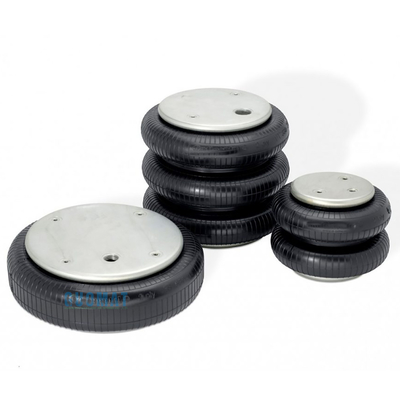

Product Images

FAQ

1. Are you a Manufacture factory?
Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 15years experience from 2008 years.

2. What is your main products?
Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.

3. Is the sample available?
Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS.

4. What is your warranty term?
There is a 12months warranty for our export products has run out from the date of the shipment.

5. Can i use my own logo and design on products?
YES,OEM is welcomed.

6. I can not find out the items what i want from your website, can you offer the products i need?
YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
