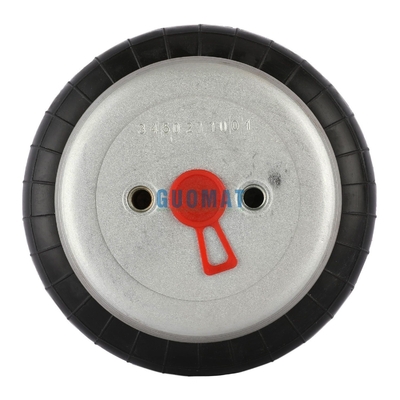

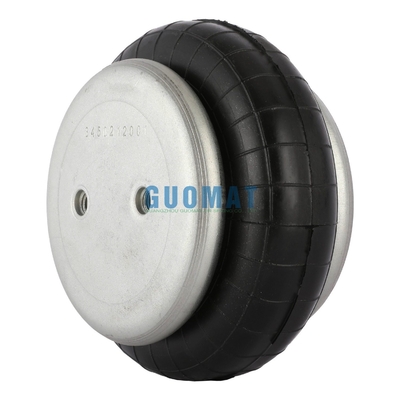

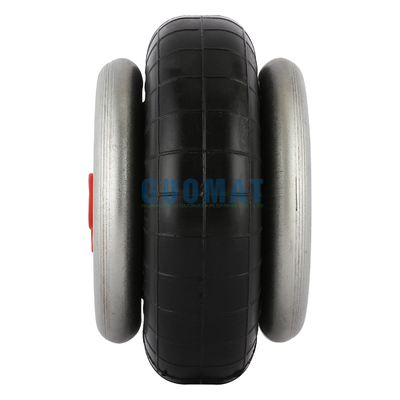

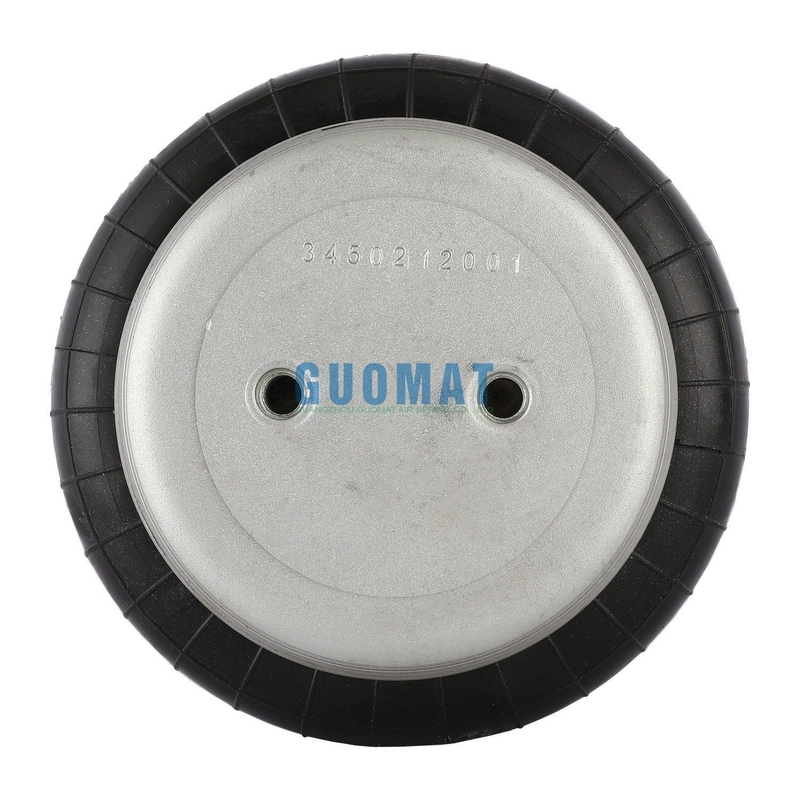

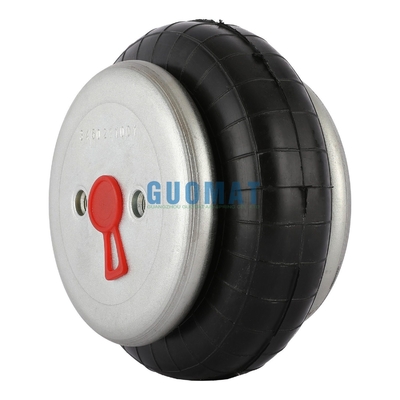

W01-358-7731 Firestone Air Spring Assembly Style 131 Rubber Bellow Air Actuator

W01-358-7731 Firestone Air Spring Assembly Style 131 Rubber Bellow Air Actuator

Product Specifications

• Cover Plate

Top Cover Plate Diameter: 4.50 Inches
Screw Center Distance of Top Cover Plate: 1.75 Inches
Bottom Cover Plate Diameter: 4.50 Inches
Screw Center Distance of Bottom Cover Plate: 1.75 Inches

• Nut/Blind Nut

Top Cover Plate Screw(Nut) Tooth: 3/8-16 Blind Nuts
Bottom Cover Plate Screw(Nut) Tooth: 3/8-16 Blind Nuts

• Gas Hole/Air Inlet/Air Fitting

Gas Hole: 1/4 NPT

• Rubber Bellow

Rubber Bellow Max. Diameter: 6.50 Inches
Minimum Height: 2.0 Inches
Maximum Height: 4.5 Inches

Manufacturer Part Number

Air Spring Introduction

Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. Air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.

Applications

• Overhead conveyors
• Lift Tables and Roll Tensioning
• Clutch and Brake Systems
• Commercial Laundry Machines and
• Vibratory Conveyors
• Electronic Equipment
• Compressors
• Palletizers
• Labeling Equipment
• Bin-Tilting Devices

Advantages

The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.

1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.

Company Profile


Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

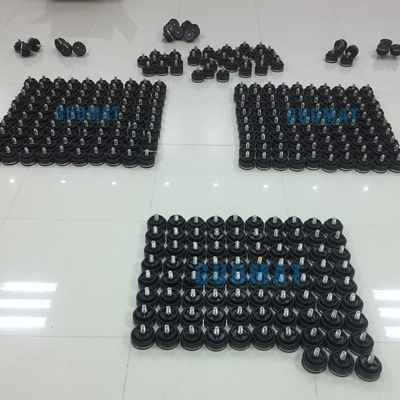

Product Related Pictures
