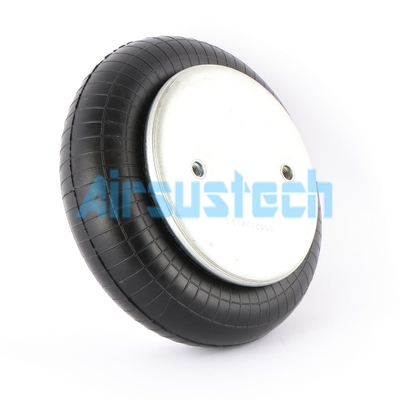

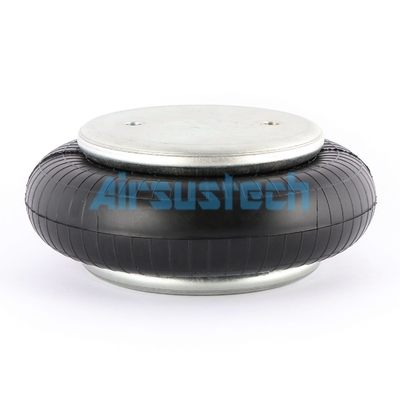

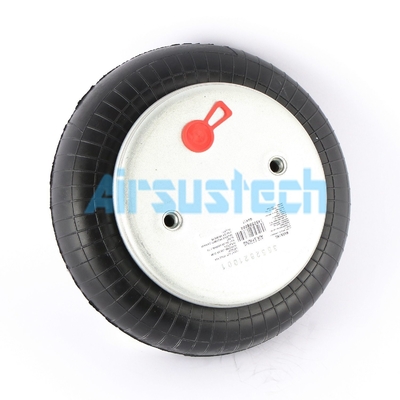

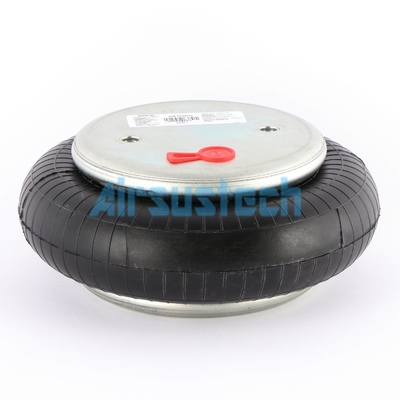

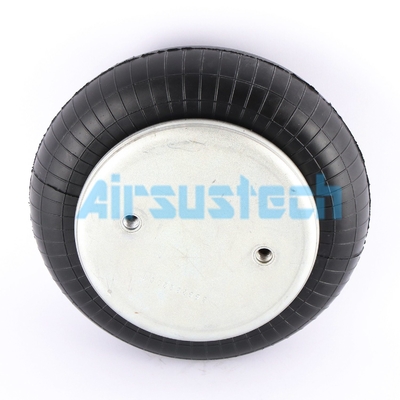

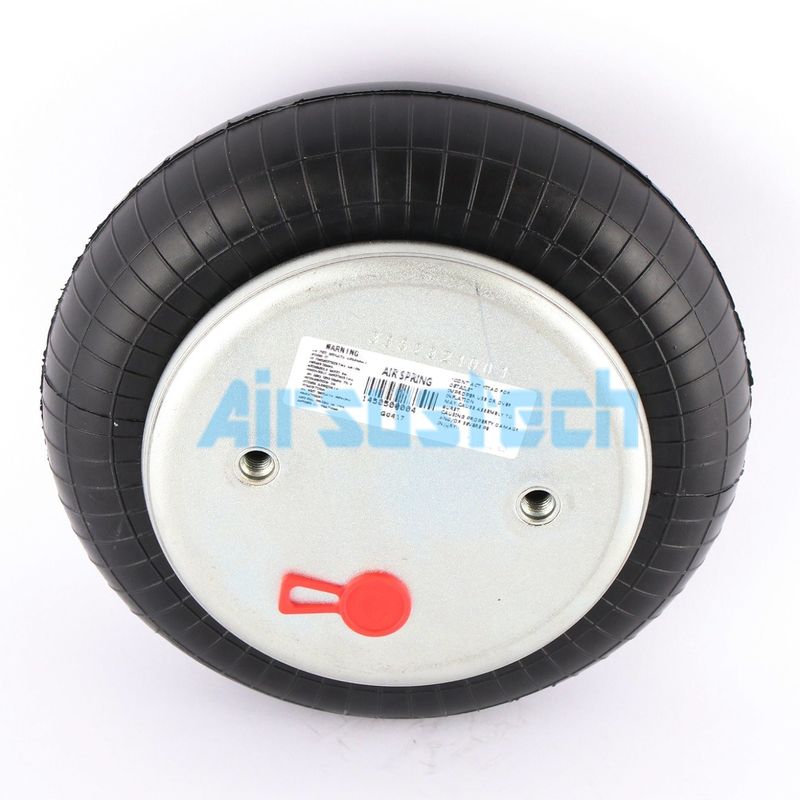

Contitech Industrial Style FS200-10 Air Spring Suspension M8 Bolts Air Shocks

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B20010-1/4

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B20010-1/4	Quality:	100% Tested
Weight:	2.1kg	Trademark:	GUOMAT
Nut Type:	2×M8×15	Top Cover Plate Dia:	161 MM
Installation Space:	265 MM	Alternative Items:	W01M586375
Highlight:	FS200-10 Air Spring , Contitech Industrial Air Spring

Contitech Industrial Style FS200-10 Air Spring Suspension M8 Bolts Air Shocks

Product Specification

Rubber Bellow Max Dia	250 mm
Installation Space Required	265 mm
Minimum Height	51 mm
Maximum Height	140 mm
Top Cover Plate Diameter	161 mm
Screw Center Distance of Top Cover Plate	89 mm
Bottom Cover Plate Diameter	161 mm
Screw Center Distance of Bottom Cover Plate	89 mm
Top Cover Plate Screw(Nut) Tooth	2×M8-15mm
Bottom Cover Plate Screw(Nut) Tooth	2×M8-15mm
Gas Fitting	G 1/4

Cross Reference
Contitech 60030
Contitech FS 200-10
Contitech FS200-10
Contitech FS 200-10 CI
Contitech FS200-10 CI
Contitech FS 200-10 CI G1/4
Contitech FS200-10 CI G1/4
Contitech FS 200-10 CI G1/4 OS
Contitech FS200-10 CI G1/4 OS
Fire stone W01M586375
Fire stone W01 M58 6375
Fire stone W01-M58-6375
Fire stone WO1M586375
Fire stone WO1 M58 6375
Fire stone WO1-M58-6375

Air Spring Applications

Pneumatic actuators are designed for machines, devices and vehicles in which it is necessary to eliminate vibrations and shocks. Used in the suspension of seats, bus axles, trucks, troley-buses, tractors, trains and trams.
Air springs are used to resiliently attach machines and devices that generate shocks and vibrations transmitted through the foundation to the environment (eg textile looms, conveyors, impact hammers, forging presses, etc.). They are perfect for isolating laboratory instruments against vibrations. They can also be used to suspend truck trailers and caravans. They are used in pneumatic lifts, e.g. in car repair shops. Operation as a single linear air motor is also a common application.
Benefits of application: vehicle and cargo protection; reducing tire wear; lower fuel consumption; low maintenance costs and a very long service life.
The rubber of the bellows is not resistant to petroleum products (oil, diesel, gasoline, kerosene, etc.). In case of contamination by any of these substances, rinse with warm water and wipe dry.

FAQ

Q: How to order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, you can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.

Q: When will make delivery ?
A: Delivery time is 3-8woring days.

Q: After-sales service?
A: One year warranty for all kinds of products. If you have any questions after receiving the goods, please feel free to contact me, as an experienced manufacturer, you can rest assured of the quality and after-sales service.

Q: What's your transportation?
A: Transportation by DHL, UPS, EMS, Fedex, Air freight, Sea freight.
