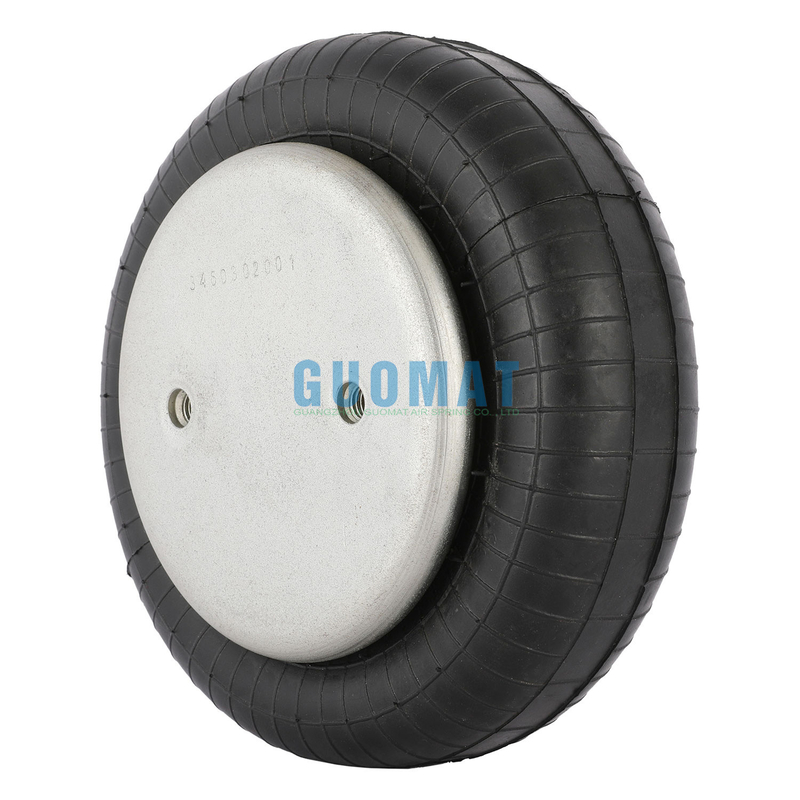

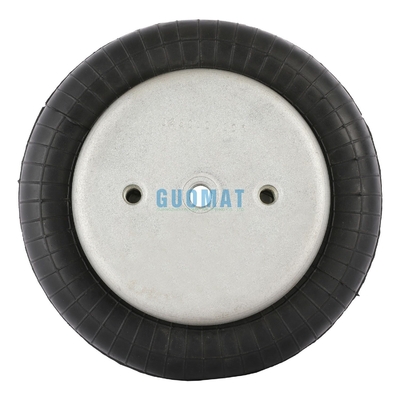

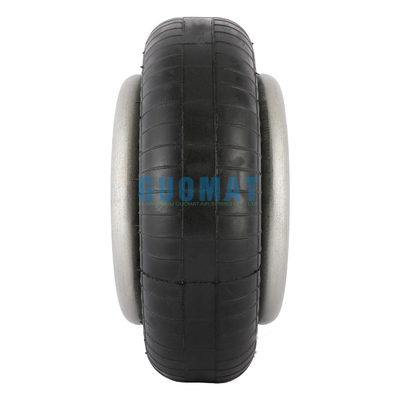

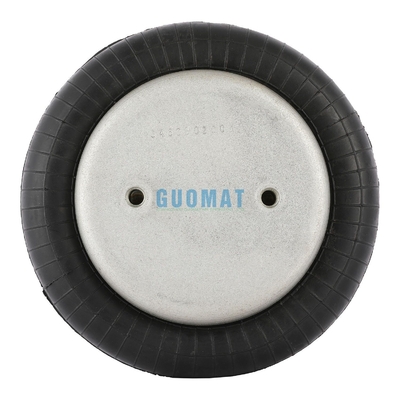

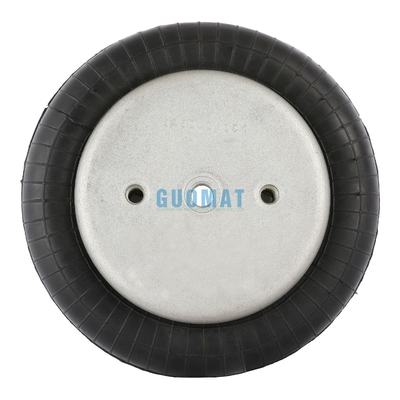

Guomat Air Spring 1B8X4 Cross Contitech FS120-10 Industrial Air Bag 1/4 NPTF

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B8X4

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B8X4	Structure:	Single Convoluted
Function:	Reduce Shock	OEM:	FS120-10
Trademark:	GUOMAT	After-sales Service:	1 Year
Applications:	Industrial Machine	Material:	Rubber And Steel
Highlight:	Guomat Air Spring 1B8X4 , Guomat Air Spring Industrial

Guomat Air Spring1B8X4 Cross Contitech FS120-10 Industrial Air Bag 1/4 NPTF

Product Information

Rubber Bellow Max. Diameter	230 MM
Minimum Height	50 MM
Maximum Height	140 MM
Gas Hole	1/4 NPTF
Top Cover Plate Screw(Nut) Tooth	2×3/8-16 UNC
Bottom Cover Plate Screw(Nut) Tooth	2×3/8-16 UNC
Top Cover Plate Diameter	135 MM
Screw Center Distance of Top Cover Plate	70 MM
Bottom Cover Plate Diameter	135 MM
Screw Center Distance of Bottom Cover Plate	70 MM

OEM Numbers

Fire-stone Air Spring

W01-358-7564
W01 358 7564
W013587564

WO1-358-7564
WO1 358 7564
WO13587564

Goodyear Air Spring

1B8-550
1B 8-550
1B8 550
1B 8 550
1B8550

Contitech Air Spring

FS120-10
FS 120-10
FS120 10
FS12010

The Reason Why Choose Us?

Variety of products and high quality. We have hundreds of models to meet your needs. And our products have passed ISO/TS 16949:2009 certification, reaching international standards, with high quality.
Respond promptly. We generally reply within one day.
Good after-sale service. Customer satisfaction is our greatest pursuit. Once the product has any damage or quality problem, please advise us and we will replace it.

Product Advantages

The products features low cost, wide use and easy operation.
It achieves long service life, and requires no maintenance and lubrication.
This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
It comes with no friction and soft medium.

FAQ

Q: What is the model number of the Suspension Air Springs?
A: The model number of the Suspension Air Springs is 1B8×4.

Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.

Q: How long does it take to get product after placing the order?
A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
