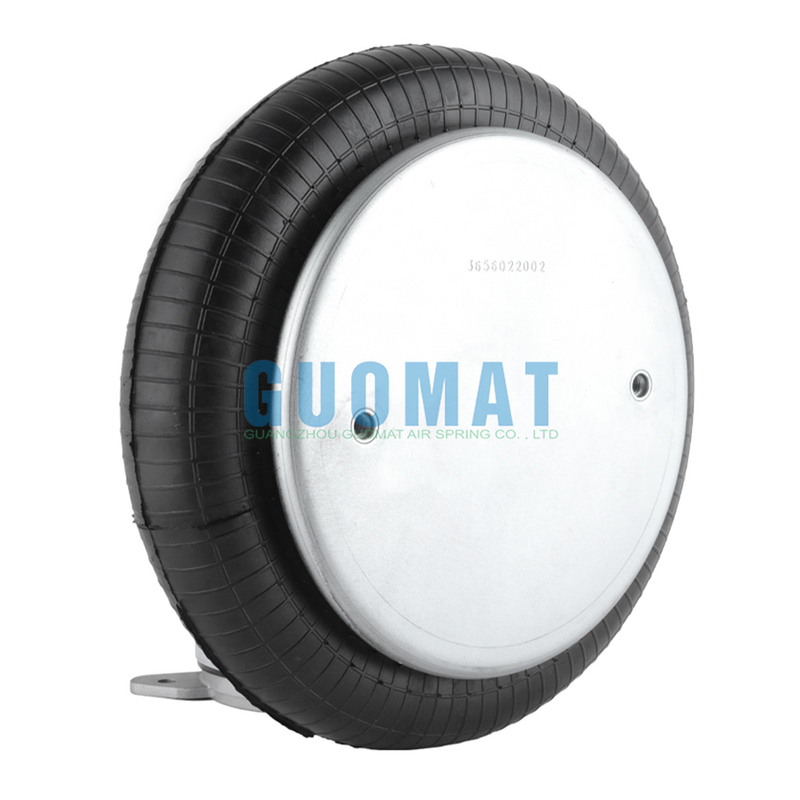

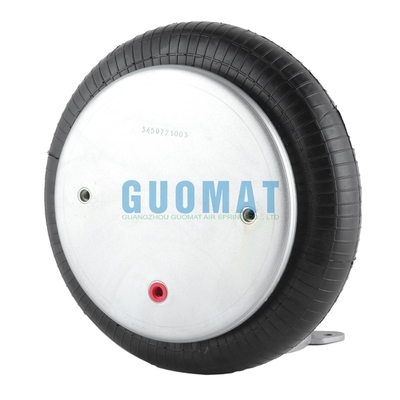

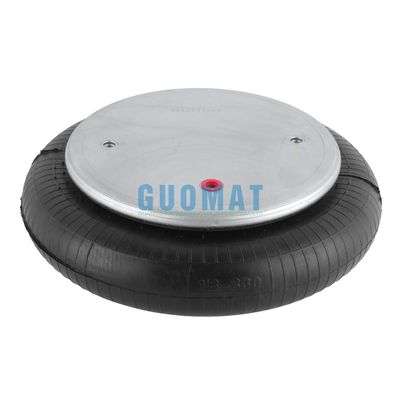

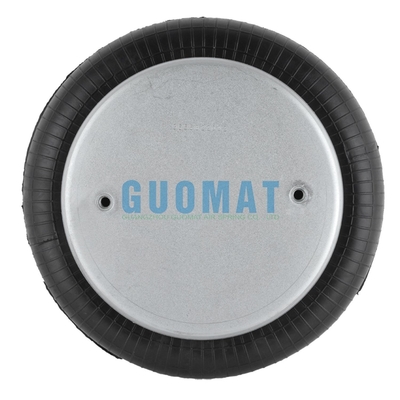

Firestone Shock Absorber W01-358-7008 Single Convoluted Style 19 Air Spring Assembly

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B5330

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B5330	Structure:	Single Convoluted
Function:	Reduce Shock	OEM:	FS 330-11 474
Type:	Gas-Filled	Product Name:	GUOMAT
Minimum Height:	2 Inches	Nuts Type:	3/8-16 Blind Nuts
Highlight:	Single Convoluted Style 19 Air Spring , W01-358-7008 Air Spring

Firestone Shock Absorber W01-358-7008 Single Convoluted Style 19 Air Spring Assembly

Product Information

Top Cover Plate Diameter	9.00 in.
Screw Center Distance of Top Cover Plate	6.20 in.
Bottom Cover Plate Diameter	9.00 in.
Distance Between Screw and Air Hole	2.88 in.
Top Cover Plate Screw(Nut) Tooth	3/8-16 blind nuts
Bottom Cover Plate Screw(Nut) Tooth	3/8-16 blind nuts
Gas Hole	G 1/4
Rubber Bellow Max Dia	12.9 in.
Minimum Height	2 in.
Maximum Height	6 in.

OEM Numbers

Firestone

W01-358-7008, W01 358 7008, W013587008, WO1-358-7008, WO1 358 7008, WO13587008

Contitech

FS330-11 474, FS 330-11 474, FS330-11474, FS330 11 474, FS 330 11 474, FS33011474

Goodyear

1B12-300, 1B 12-300, 1B12 300, 1B 12 300, 1B12-313, 1B 12-313, 1B12 313, 1B 12 313

Triangle

6374, 4474

Holland(Neway)

90557226

Firestone Style 19 Has Other OEM Number

Style 19 Two Ply Bellows	Blind nuts, 1/4 NPT	W01-358-7008, W01 358 7008, W013587008 WO1-358-7008, WO1 358 7008, WO13587008
	Blind nuts, 1/4 NPT, bumper	W01-358-7009, W01 358 7009, W013587009 WO1-358-7009, WO1 358 7009, WO13587009
	Blind nuts, 3/4 NPT	W01-358-7011, W01 358 7011, W013587011 WO1-358-7011, WO1 358 7011, WO13587011
	Blind nuts, 3/4 NPT. bumper	W01-358-7012, W01 358 7012, W013587012 WO1-358-7012, WO1 358 7012, WO13587012
	Countersunk steel bead rings, 1^5/8 bolts, nuts, washers	W01-358-7023, W01 358 7023, W013587023 WO1-358-7023, WO1 358 7023, WO13587023
	Rubber bellows only	W01-358-0134, W01 358 0134, W013580134 WO1-358-0134, WO1 358 0134, WO13580134

Product Advantages
Long service life
Maintenance-free
Highly operational safety
Frictionless
Lateral misalignment possible
Chemical resistance

FAQ

Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

Q:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
