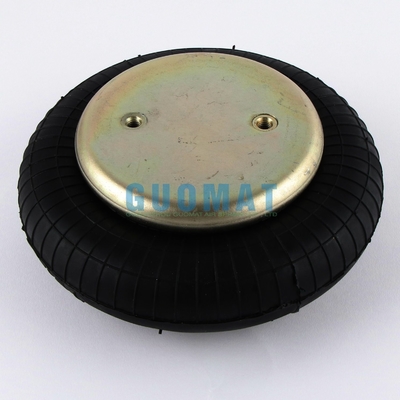

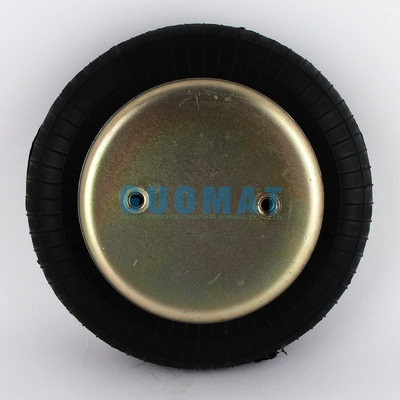

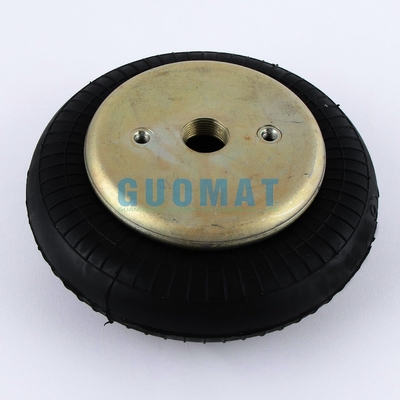

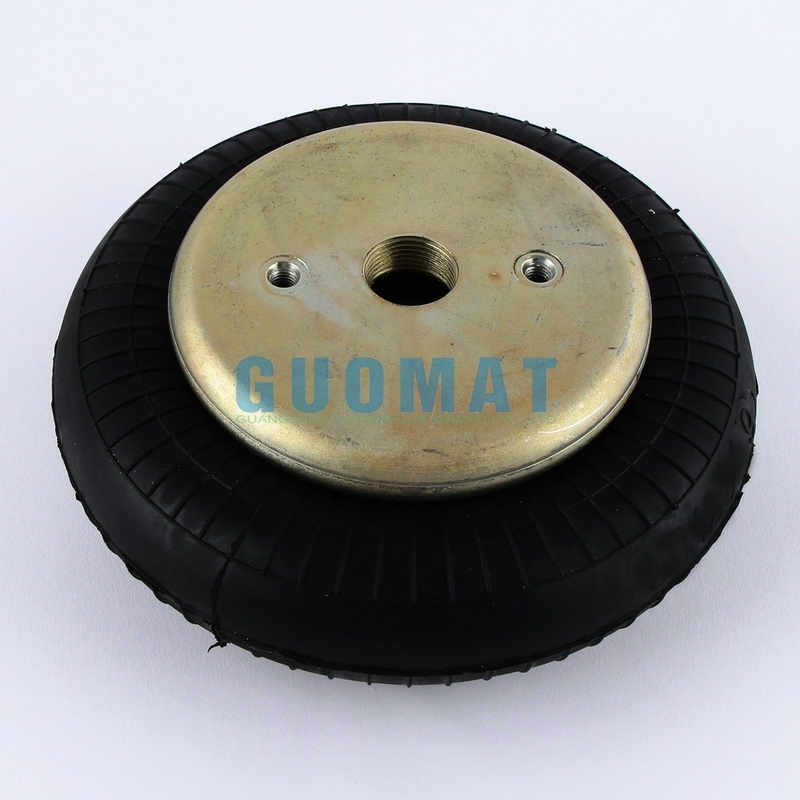

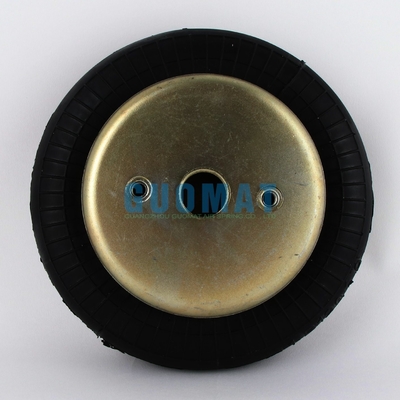

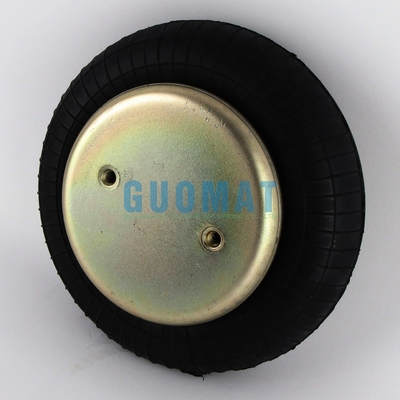

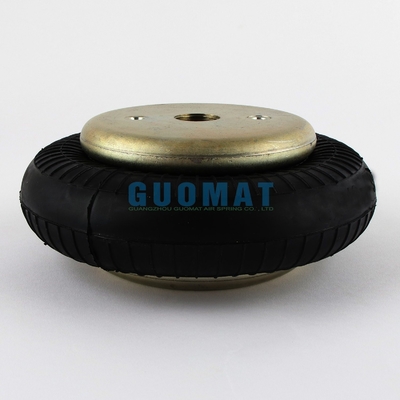

Festo EB-215-80 Compact Air Bellow Cross Dunlop 8''x1 S08101 Air Shock Absorber

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B1209-G3/4

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Item NO.:	1B1209-G3/4	Structure:	Single Convoluted
Brand:	Guomat/Neutral	Quality:	100% Tested
After-sales Service:	1 Year	Norgren:	PM/31081
Air Inlet:	G 3/4	Minimum Height:	50 MM
Highlight:	S08101 Air Bellow Cross Dunlop , Compact Air Bellow Cross Dunlop , Festo Compact Air Bellow

Festo EB-215-80 Compact Air Bellow Cross Dunlop 8''x1 S08101 Air Shock Absorber

Product Details

Top Cover Plate Diameter: 141 mm

Screw Center Distance of Top Cover Plate: 70 mm

Bottom Cover Plate Diameter: 141 mm

Screw Center Distance of Bottom Cover Plate: 70 mm

Top Cover Plate Screw(Nut) Tooth: 2×M8

Bottom Cover Plate Screw(Nut) Tooth: 2×M8

Gas Hole: G 3/4

Rubber Bellow Max Dia: 230 mm

Minimum Height: 50 mm

Maximum Height: 135 mm

Total Storke: 85 mm

OEM Numbers

Festo	EB-215-80, EB 215 80, EB 215-80, EB215 80 EB-215 80, EB-21580, EB21580
Firestone	W01-M58-6165, W01 M58 6165, W01M586165 WO1-M58-6165, WO1 M58 6165, WO1M586165
Contitech	FS 120-9, FS 120 9, FS120-9, FS 120 9, FS1209
Bosch	822419003
Norgren	PM/31081(8x1), PM31081(8x1), PM 31081(8x1)
Weforma	WBE 300-E1, QBE 300 E1, WBE300-E1 WBE 300E1, WBE300E1
Airtech	140293, 111003, 1B-190FB, 1B 190FB, 1B190FB
Megatech	1S120-9 3/4 M8, 1S120 9 3/4 M8, 1S1209 3/4 M8

Air Spring Properties

Maintenance-free
High operational reliability
Long service life
Resistance to different media
Simple, economical assembly

Storage Precautions

Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight
Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced
Air springs are best stored in a free state without any external force
Do not store in an environment with a temperature exceeding 50 degrees Celsius
