Air Spring Of Contitech FS50-5 Single Convoluted Rubber Bellow 1/4'' Air Inlet

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B130070

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B130070	OEM:	Fs50-5
Position:	Industrial Machine	Brand Name:	GUOMAT
Material:	Rubber And Steel	Function:	Shock Absorption
Minimum Height:	51 MM	Maximum Height:	95 MM
Highlight:	1/4 Air Inlet Air Spring , Contitech FS50-5 Air Spring

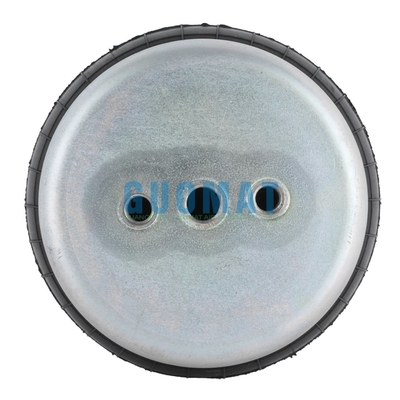

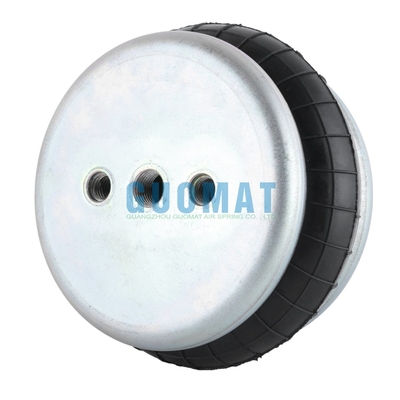

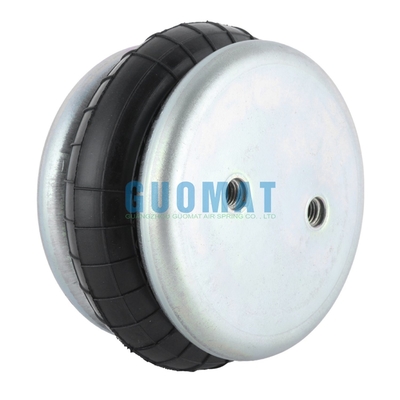

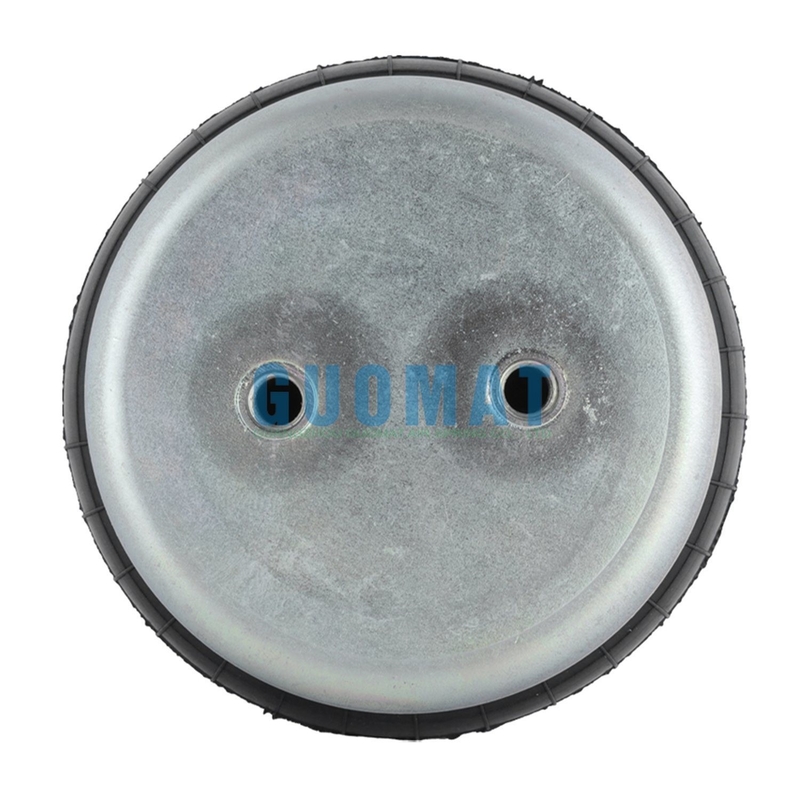

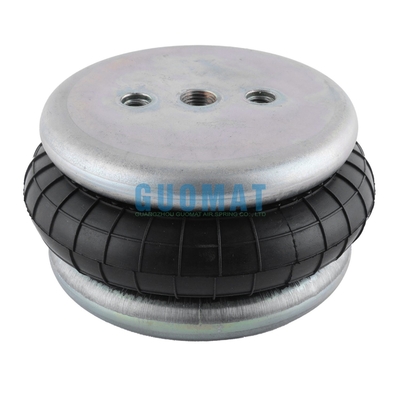

Air Spring Of Contitech FS50-5 Single Convoluted Rubber Bellow 1/4'' Air Inlet

1B130070 Specification

Cover Plate

Top Cover Plate Diameter: 108 mm

Screw Center Distance of Top Cover Plate: 44.5 mm

Bottom Cover Plate Diameter: 108 mm

Screw Center Distance of Bottom Cover Plate: 44.5 mm

Nut/Blind Nut

Top Cover Plate Screw(Nut) Tooth: 2×M8

Bottom Cover Plate Screw(Nut) Tooth: 2×M8

Gas Hole/Air Inlet/Air Fitting

Gas Hole: G 1/4

Rubber Bellow

Rubber Bellow Max Dia: 150 mm

Compressed Height: 51 mm

Expanded Height: 95 mm

1B130070 Technical Data
Force F [kN]

Pressure p	[bar]	3	4	5	6	7	8	Vol.V[I]
Height H [mm]	80	2	2.7	3.3	4	4.7	5.4	0.46
	70	2.6	3.4	4.3	5.1	6	6.8	0.4
	60	3.1	4	5	6	7	8	0.3

Single Convoluted Rubber Bellow Other Technical Data

Item code	Max. diameter (mm)	Max. stroke (mm)	Min. height (kN)	Max. stroke (kN)	Standard air inlet
Item code	Max. diameter (mm)	Max. stroke (mm)	Force with p = 8 bar		Standard air inlet
FS 40-6 CI	145	60	6.9	2.4	G 1/8
FS 50-5 CI	150	44	9.0	2.2	G 1/4
FS 70-7 CI	165	64	9.9	5.2	G 1/4
FS 100-10 CI	210	94	14.7	1.6	G 3/4
FS 120-9 CI	215	85	17.7	6.6	G 3/4
FS 120-10 CI	231	99	19.5	4.6	G 3/4
FS 120-12 CI	235	119	18.7	7.2	G 3/4
FS 200-10 CI	250	89	23.8	9.1	G 3/4

1B130070 Applications

The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.

The products features low cost, wide use and easy operation.
It achieves long service life, and requires no maintenance and lubrication.
This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
It comes with no friction and soft medium.
