Email:linda@662n.com Mob:+8613924100039(WhatsAPP)
Wechat:airspringG Skype:guomat
 |
| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 4.5X1 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD69.9-99.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Spring Material: | Rubber+Aluminum | Structure: | Single Convoluted |
|---|---|---|---|
| Brand: | Guomat / Neutral | Function: | Reduce Shock |
| Quality: | 100% Tested | Norgren: | PM/31041 |
| Transport Package: | Cartons | After-sales Service: | 1 Year |
| High Light: | GUOMAT 1B4.5X1 Air Lift Spring,W01R584050 Air Lift Spring |
||
GUOMAT 1B4.5X1 Air Lift Spring W01R584050 Firestone Plate Industrial Rubber Air Bellow
Product Details
| Item | Industrial Air Spring |
| Model | 1B4.5X1 |
| Material | Rubber+Aluminum Cover |
| Contitech | FS44-5/FS 44-5/FS44-5DI/FS 44-5 DI |
| Fire stone | W01R584050/W01 R58 4050/W01-R58-4050 |
| Norgren | PM/31041/PM 31041/PM31041 |
| Dunlop | 4 1/2X1 |
| Dunlop | SP2334 |
Cover plate diameter: 110 mm
Gas hole: G3/8
The center of the threaded hole: 93 mm
Natural height: 78 mm
Natural outer diameter: 120mm
Convolution: 1
Color: Black
Principle of Air Spring
An air spring is a non-metallic spring that adds pressurized air to a flexible closed container and utilizes the compressibility of air to achieve elasticity. It has excellent elastic properties, and its use in vehicle suspension devices can greatly improve the vehicle's dynamic performance, thereby significantly improving running comfort. Air springs are made of rubber and are widely used in various vehicle suspension systems, aircraft landing mechanisms, shock and vibration isolators, pneumatic instruments and mattress springs.
Advantages of Air Springs
A. The air spring has nonlinear characteristics, and its characteristic line can be designed into an ideal curve as needed.
B. The stiffness of the air spring changes with the load, so the natural vibration frequency remains unchanged under any load, making the spring device have almost constant performance.
C. Good performance in absorbing high-frequency vibration and sound insulation. Guangzhou high-mat air spring, Continental air spring, Firestone air spring, high-mat air spring, Goodyear air spring
D. Through the height control valve, the working height of the air spring can be kept constant under any load, and the spring can also have different heights under the same load. Therefore, it is beneficial to adapt to various structural requirements. High Matt air bag, Firestone air bag, Goodyear air bag, Continental air bag
E. The stiffness of the air spring can be selected according to needs by changing the volume of the additional air chamber, and it can be selected very low.
F. The same air spring can bear axial and radial loads at the same time, and can also transmit torque. By adjusting the internal pressure, different load-bearing capacities can be obtained, so it can adapt to the needs of various loads. High Matt air bag, Firestone air bag, Goodyear air bag, Continental air bag
G. An orifice is provided between the air spring body and the additional air chamber, which can play a damping role. If the aperture is appropriately selected, a shock absorber may not be required.

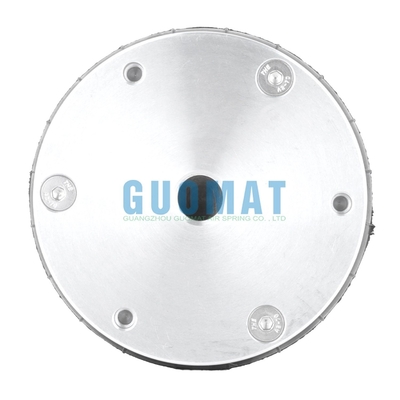

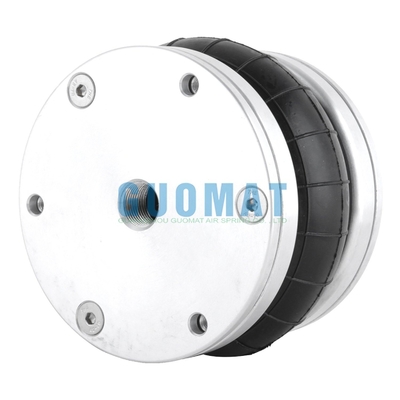

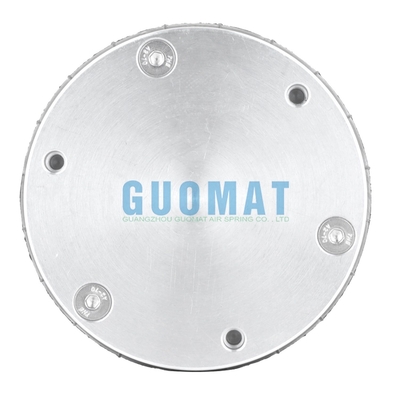

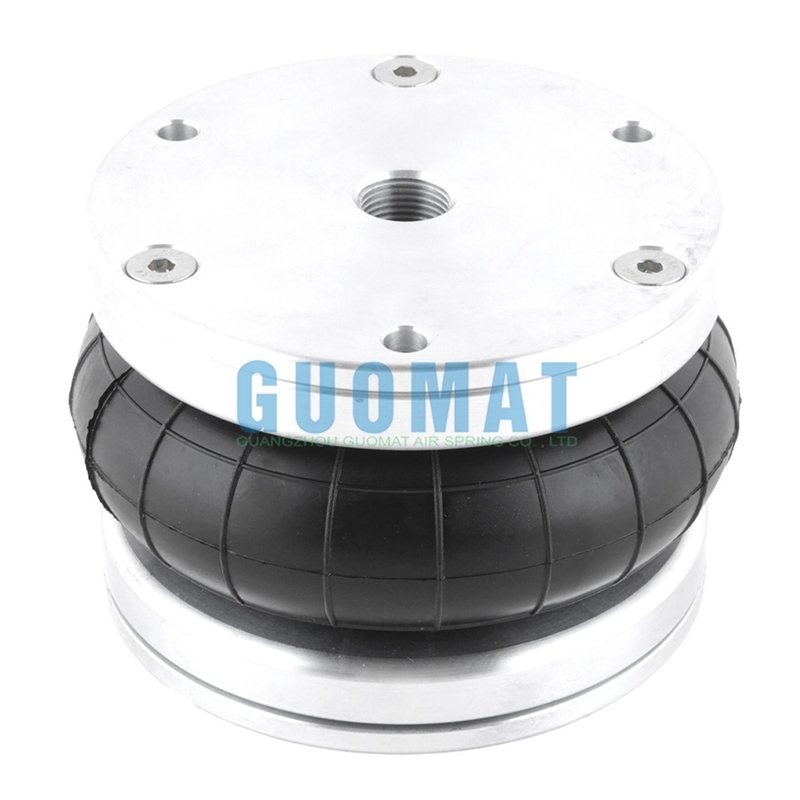

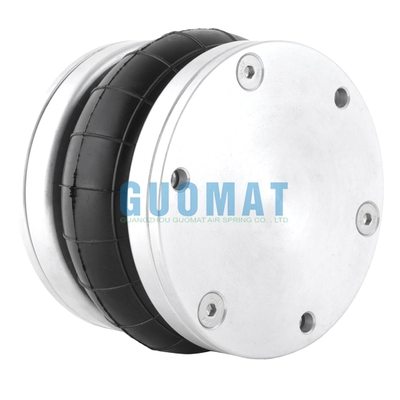

Product Images
