| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B8X1T |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD79.9-99.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Model Name: | Flange Air Spring | Structure: | Single Convoluted |
|---|---|---|---|
| Quality: | 100% Tested | Norgren: | M/31081 |
| After-sales Service: | 1 Year | Part: | Air Spring |
| Position: | Front/Rear | Firestone: | W01-R58-4054 |
8" x 1 Flange Rubber Air Spring W01R584054 Firestone Pickup Truck Air Bags
Product Details
Firestone Number W01R584054
Firestone Number W01 R58 4054
Firestone Number W01-R58-4054
Firestone Bellows Number 4054
Firestone Bellows Number WO1R584054
Firestone Bellows Number WO1 R58 4054
Firestone Bellows Number WO1-R58-4054
Dunlop Number 8" x 1 ; 8x1 ; 8X1
Dunlop Number SP1537
Dunlop Number SP 1537
Dunlop Number sp1537
Dunlop Number sp 1537
Contitech Number FS 138-8 DS
Contitech Number FS138-8 DS
Contitech Bellows Number FS138-8DS
Norgren Number M/31081
Norgren Number M31081
Norgren Number M 31081
Parker Number 9109014
Height max : 125 mm
Height min : 50 mm
Recommended max working height : 115 mm
Diameter plates : 230 mm
Air connection : 1/2 "
Mounting thread bolt : M10
Material plates : galvanized
How to Install a Flange Air Spring
To install a flange air spring, you need to follow these steps:
Preparation: Make sure you have the right tools and materials, including flange air springs, bolts, washers, etc.
Cleaning: Before installation, make sure the flange and mounting surface are clean to ensure a good seal.
Installing the flange air spring: Place the flange air spring on the flange and make sure it is fully aligned with the flange.
Securing the flange air spring: Use bolts and washers to secure the flange air spring to the flange. Make sure the bolts are properly tightened, but not too tight to avoid damaging the flange or spring.
1 Convolution Air Bellows
| Firestone | Dunlop Pneuride | Dunlop Springride | Contitech | Norgren | Parker |
| 2 3/4''x1 | SP2906 | FS 22-3 DI | 9109025 | ||
| W01R584050 | 4 1/2''x1 | SP2334 | FS 44-5 DI | PM/31041 | 9109400 |
| W01R584078 | 6''x1(AI) | SP2913 | FS 76-7 DI | PM/31061 | 9109004A |
| W01R584052 | 6''x1(Steel) | SP1536 | FS 76-7 DS | M/31061 | 9109004 |
| W01R584054 | 8''x1 | SP1537 | FS 138-8 DS | M/31081 | 9109014 |
| W01R584057 | 10''x1 | SP2523 | FS 210-10 DS | M/31101 | 9109024 |
| W01R584060 | 12''x1 | SP1540 | FS 412-10 DS | M/31121 | 9109044 |
| W01R5863 | 14''1/2x1 | SP1543 | FS 614-13 DS | M/31141 | 9109064 |
| W01R584066 | 16''x1 | FS 816-15 DS | M/31161 | 9109026 |

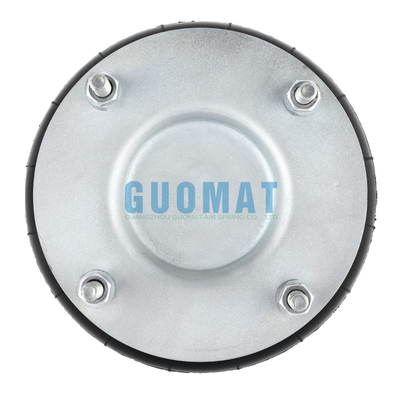

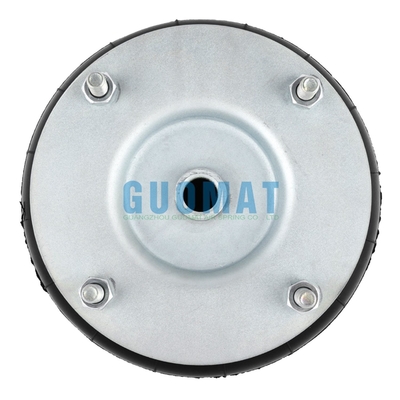

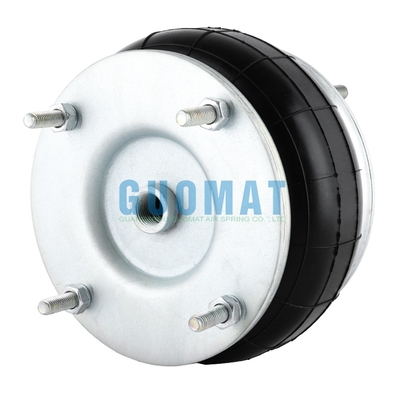

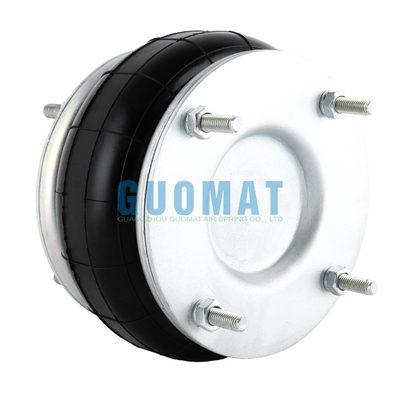

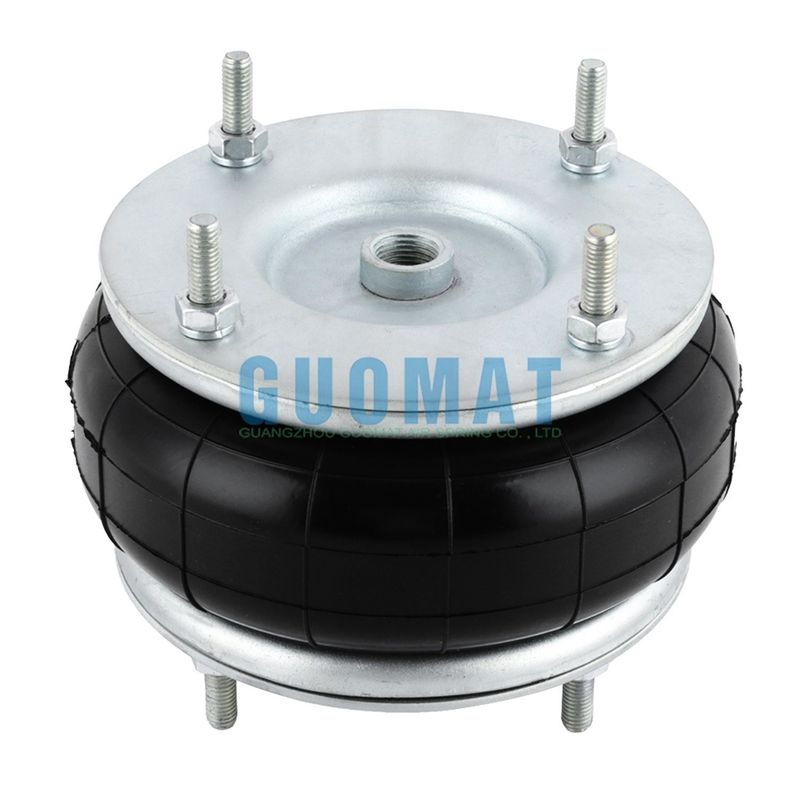

Product Images
