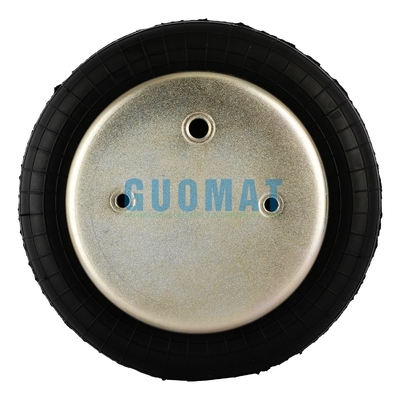

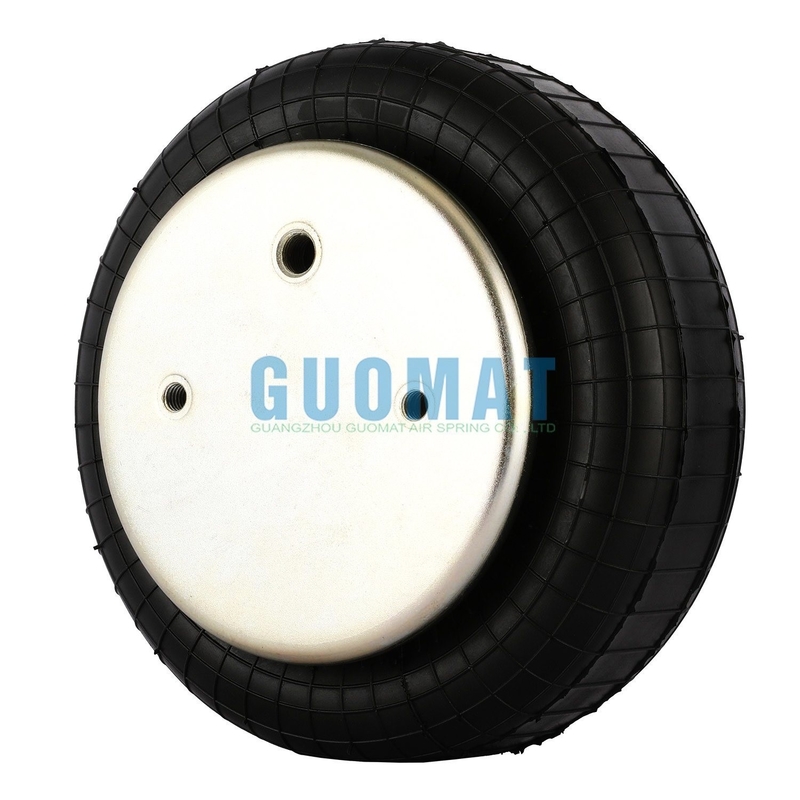

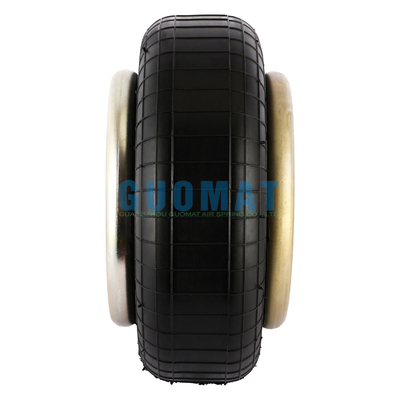

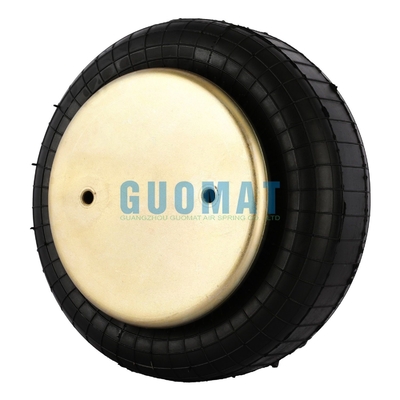

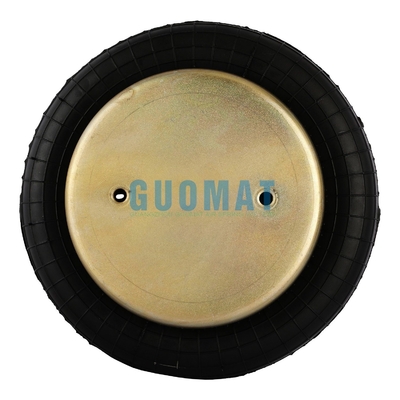

1B9-202 Goodyear Air Suspension Cross Firestone Air Shock Absorber W01-358-746
Product Information
| Top Cover Plate Diameter |
160mm |
| Bottom Cover Plate Diameter |
160mm |
| Top Cover Plate Screw(Nut) Tooth |
2x3/8-16UNC |
| Screw Center Distance of Top Cover Plate |
89mm |
| Bottom Cover Plate Screw(Nut) Tooth |
2x3/8-16UNC |
| Screw Center Distance of Bottom Cover Plate |
89mm |
| Distance Between Gas Hole and Screw |
44.5mm |
| Gas Hole |
1/4-18 NPTF |
| The Rubber Bellow MAX Diameter |
222mm |
| The Working Stroke |
MAX 160mm To MIN 60mm |
| Maximum Height |
160mm |
| Minimum Height |
60mm |
| Compression Height |
100mm |
1B9X5 Reference Number
- GOODYEAR 1B9-202 / 1B9202 / 578913201 / 578 91 3 201
- FIRE-STONE W013587460 / W01-358-7460 / w01-358-7460
Product Core Competitiveness
1. Imported rubber
It is smelted with advanced sol technology, which improves the acid resistance, corrosion resistance and longer life of the product.
2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness, anti-leakage, high density of skin, anti-burst.
3. Ensure in-situ installation
The shape and size are the same as the original, directly replace the original air spring, no need to change, easy to install.
4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant, long service life.
FAQ
Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc. |
Q:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. |
Q: How do you make our business a long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure our customers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from. |
Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers. |
The Related Picture of 1B9×1
Company Profile
Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.
The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.
