Goodyear Air Actuator 1B5-500 Air Spring Assembly For Pneumatic Applications

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1K130070

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1K130070	Warranty:	One Year
Pressure Ability:	0.2-0.8 M PA	Air Inlet:	G1/4
Function:	Reduce Vibration	Brand:	GUOMAT
Nuts Type:	M8	Sample:	Available
Highlight:	1B5-500 Air Spring Assembly , Goodyear Air Spring Assembly

Goodyear Air Actuator 1B5-500 Air Spring Assembly For Pneumatic Applications

Guomat 1K130070 Industrial Convoluted Air Spring Specifications

Top Cover Plate Screw number	2 pcs
Bottom Cover Plate Screw number	2 pcs
The Distance of Nut	44.5 mm
The Screw Of Nut	M8
Gas Hole / Air inlet	G1/4
Top Cover Plate Diameter	85 mm
Bottom Cover Plate Diameter	85 mm
Rubber Bellows Through Diameter	130 mm
In 0.7 pa,Rubber Bellows Diameter	150 mm
The Working Stroke	MIN 50 mm to MAX 100 mm
Rubber Bellows Design Height	70 mm

Single Convoluted Air Suspension Technical Data

OEM NO.	1B5-500	1B5-502	1B5-503	1B5-510	1B5-512	1B5-520	1B5-521
Usale Storke	2.0	2.0	2.0	3.0	3.0	4.0	4.0
Max Dia @100 psi In	5.7	5.7	5.7	6.0	6.0	6.5	6.5
MIN. H.(mm)	1.8	1.8	1.8	1.8	1.8	1.8	1.8
MAX. H.(mm)	3.8	3.8	3.8	4.8	4.8	5.8	5.8
Bumper	NO	NO	NO	NO	NO	NO	NO
Air Inlet Size (in)	1/4	3/4	1/4 TV	1/4	3/4	1/4	3/4

GUOMAT Air Spring Advantages

Air Spring products are industry-leading air suspension products in trucking safety and performance.
These products provide exceptional vibration isolation and durability, helping to reduce driver fatigue, equipment wear and tear, as well as minimizing maintenance costs.
Air Spring products are constructed from lightweight, high-strength materials that provide a smoother ride and outlast the competition.
The Super Cushion air springs give trucks, trailers, and buses new levels of safety, productivity and stretch the lifespan. These springs offer a quiet, cushioned ride that helps improve driver comfort by reducing fatigue, which keeps them more alert, therefore keeping the roads safer. Especially on rough roads, vehicles with STEMCO Super Cushion rolling lobe airbags bounce less than those with steel springs, which helps truck drivers remain in control. Additionally, cargo loads stay safer with improved protection from the shock and vibration.
This shock and vibration transferred to a tractor, bus, or trailer by steel springs will accelerate wear to things like lights, electrical components, instruments, bodies, cabs, axles, transmissions, tires, and all trailer hardware. By isolating these vibrations, Goodyear Air Springs can keep vehicles out of the shop longer.

Air Spring Applications

The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.

The products features low cost, wide use and easy operation.
It achieves long service life, and requires no maintenance and lubrication.
This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
It comes with no friction and soft medium.

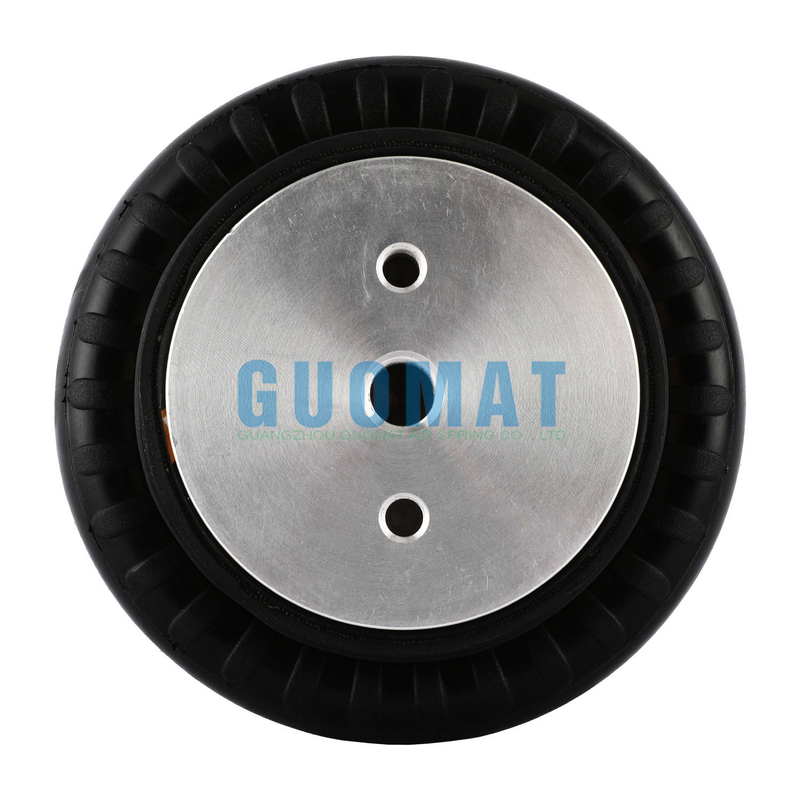

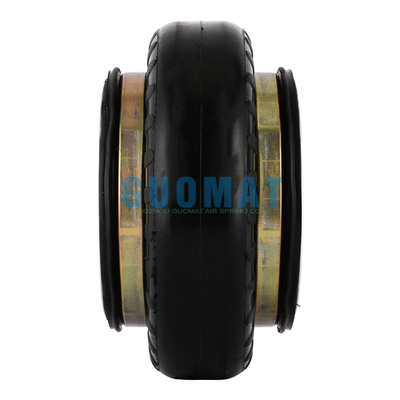

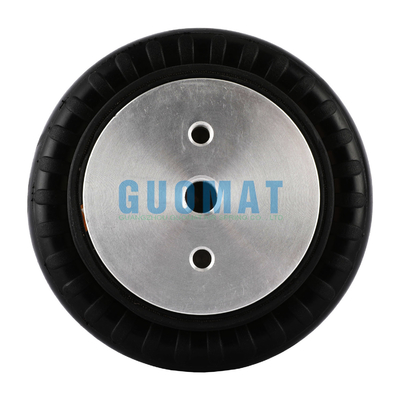

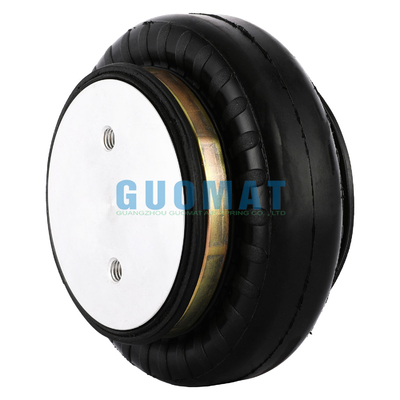

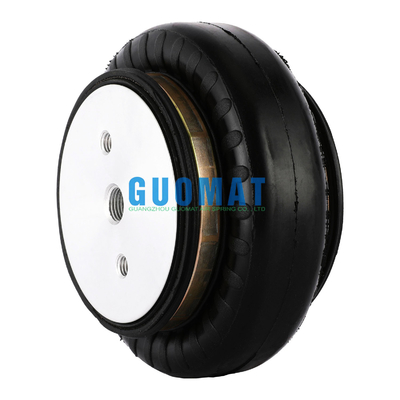

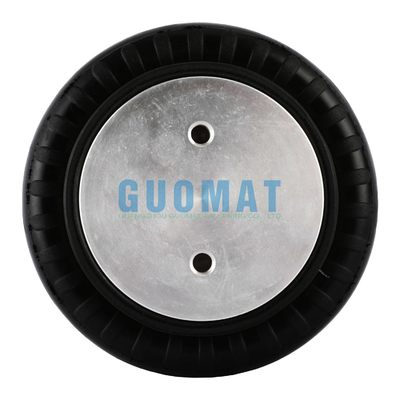

The Real Pictures

1K130070 Air Bellow Cross 1b5-500 Goodyear Rubber Air Spring Shock
