FD120-17 Ci Contitech Rubber Airride Springs For Industrial Machines Air Shocks

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B12017

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B12017	Warranty:	One Year
Air Inlet:	G3/8	Color:	Black
Trademark:	GUOMAT	Function:	Reduce Vibration
Load Type:	Compression	WEFORMA:	WBZ 300-E1
Highlight:	Industrial Machines Air Shocks , Industrial Machines Airride Springs

FD120-17 Ci Contitech Rubber Airride Springs For Industrial Machines Air Shocks

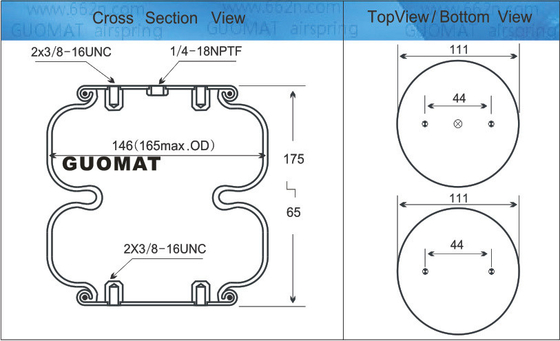

Product Specification

Top Cover Plate Diameter	5.55 in.
Screw Center Distance of Top Cover Plate	2.76 in.
Bottom Cover Plate Diameter	5.55 in.
Screw Center Distance of Bottom Cover Plate	2.76 in.
Top Cover Plate Screw(Nut) Tooth	2×3/8UNC
Bottom Cover Plate Screw(Nut) Tooth	2×3/8UNC
Gas Hole	G 3/4
Rubber Bellow Max Dia	8.46 in.
Minimum Height	3.0 in.
Maximum Height	9.1 in.
Total Storke	6.1 in.

Product Technical Data

Force F @ 40 Psi At 6.0 In. (Ibf): 1070

Force F @ 60 Psi At 6.0 In. (Ibf): 1580

Force F @ 80 Psi At 6.0 In. (Ibf): 2110

Force F @ 100 Psi At 6.0 In. (Ibf): 2650

Force F @ 120 Psi At 6.0 In. (Ibf): 3170

OEM Original Equipment Manufacturers

GUOMAT NO.2B12017	GUOMAT NO.2B12017
CONTITECH 603 N	BOS CH 822419042
FIRES TONE FLEX 26	CONTITECH FD120-17
FIRES TONE W01 358 0142	2682 030000
PIRELLI 26	DUNLOP (FR) SO 8201
PHOENIX 2B O7 R	FES TO EB-215-155
AIRKRAFT 114050	GOODYEAR 2B 7-540
PIRELLI T26 84181	NORGREN PM/31082 (8x2)
TAURUS KF 218	WEFORMA WBZ 300-E1
AIRKRAFT 113053

Product Core Competitiveness

Imported rubber

It is smelted with advanced sol technology, which improves the acid resistance, corrosion resistance and longer life of the product.

One-piece casting process

Adopt one-piece casting process, durable, strong air tightness, anti-leakage, high density of skin, anti-burst.

Ensure in-situ installation

The shape and size are the same as the original, directly replace the original air spring, no need to change, easy to install.

Using high-quality steel

Made of high-quality steel, anti-fracture, corrosion-resistant, long service life.

FAQ

Q: Is the sample available?
A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3-7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight.

Q: Can I use my own logo and design on products?
A: YES,OEM is welcomed.

Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.

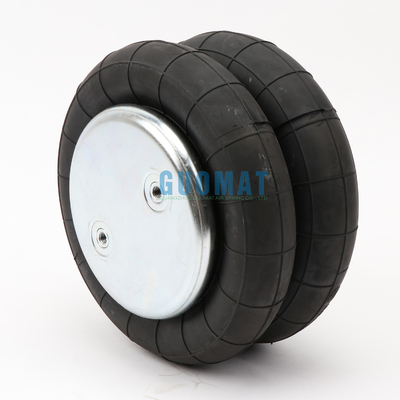

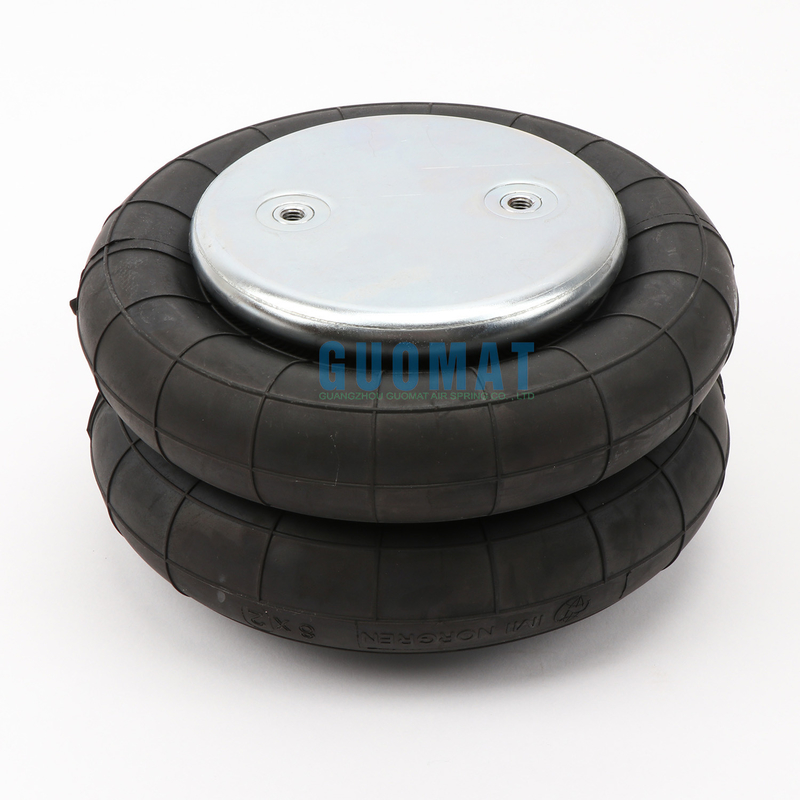

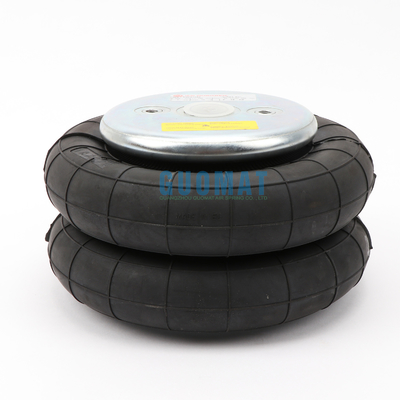

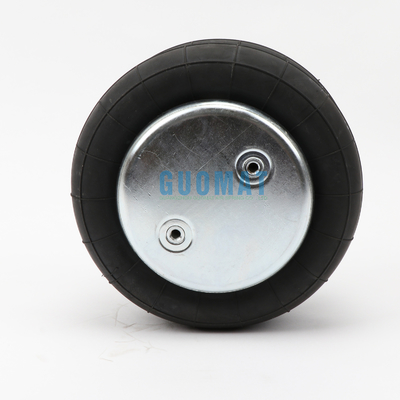

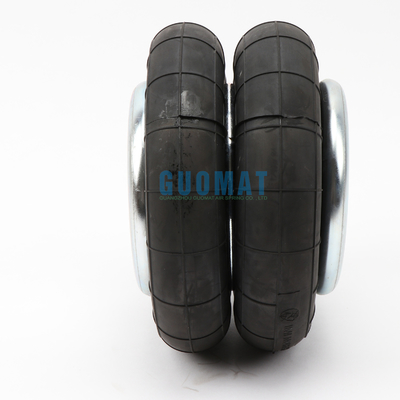

The Real Pictures

FD120-17 Ci Contitech Rubber Airride Springs For Industrial Machines Air Shocks 0
