FD200-19 Contitech W013586910 Double Convoluted Air Bags Contitech Air Spring Industrial Air Spring

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6910

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model:	Convoluted Air Bags	N.W.:	3.5 Kg
Pressure Ability:	0.2-0.8 M PA	Air Inlet:	1/4 NPT
Top Plate Hole/Stud:	3/8-16unc	Bottom Plate Dia:	160 Mm
Type:	Gas-Filled	Customization:	Available \| Customized Request
Highlight:	Contitech Industrial Air Spring , FD200-19 Industrial Air Spring

FD200-19 Contitech W013586910 Double Convoluted Air Bags Contitech Air Spring Industrial Air Spring

Specifications and Technical Data of 2B6910

Compressed Height: 3.12 / 79mm

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut 44.5 mm

Top Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter 224 mm

The Working Stroke : MAX 260 mm to MIN 75 mm

Gas Hole / Air inlet : 1/4 NPTF

Bellows Number:20

Goodyear Part Number:2B9-201/ 2B9201 / 2B9 201

Goodyear Bellows Number:578-92-3-202 / 578923202 / 578 92 3 202

OEM Original Equipment Manufacturer:

Reference	OEM
GUOMAT NO.	2B6910

Contitech	FD 200-19 310 / FD 200 19 310 / FD 20019 310
Goodyear	2B9-201 / 2B9 201 / 2B9201
Taurus	KF218-6902
Granning	4848
Hendrickson	S2630
R&STruck	1027505
Ridewell	1003586902C
Suspensions	2000-42
Watson&Chalin	AS-0002

The composition of convoluted air springs

Upper Steel Plate: upper cover plate is bearing pressure and seal air inside
Waist ring: Stable part skins to prevent deformation
The connotation of screw hole: fixed as the installation of air spring in car or equipment
Gas-Filled hole / Air Inlet: By filling air porosity for inflatable air spring
Flexible bellows: The main part, can lock the air and flexible activities up and down
Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision, You can choose to have also can not
The connotation of screw hole: fixed as the installation of air spring in car or equipment
Lower steel Plate: Lower steel Plate is bearing pressure and seal air inside

Description Assembly Order No.

Blind nuts, 1/4 NPT W01-358-6910

Blind nuts, 1/4 NPT, bumper W01-358-6911

Blind nuts, 3/4 NPT W01-358-6900

Blind nuts, 3/4 NPT, bumper W01-358-6901

Countersunk steel bead rings,

13/4 bolts, nuts, washers W01-358-6923

Rubber bellows only W01-358-0138

How to Calculation For Pneumatics, Such as

• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)

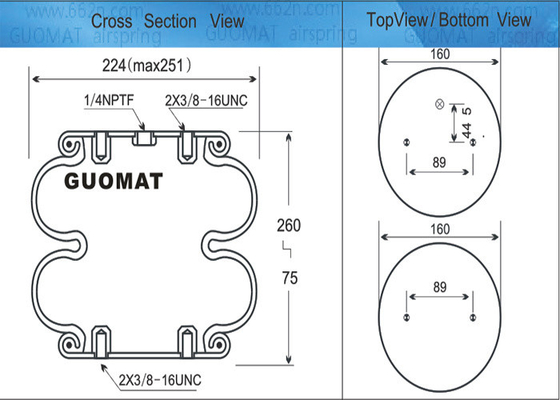

The drawing and data of GUOMAT 2B6910 air spring:

FD200-19 Contitech W013586910 Double Convoluted Air Bags Contitech Air Spring Industrial Air Spring 0

Other kinds of GUOMAT NO.

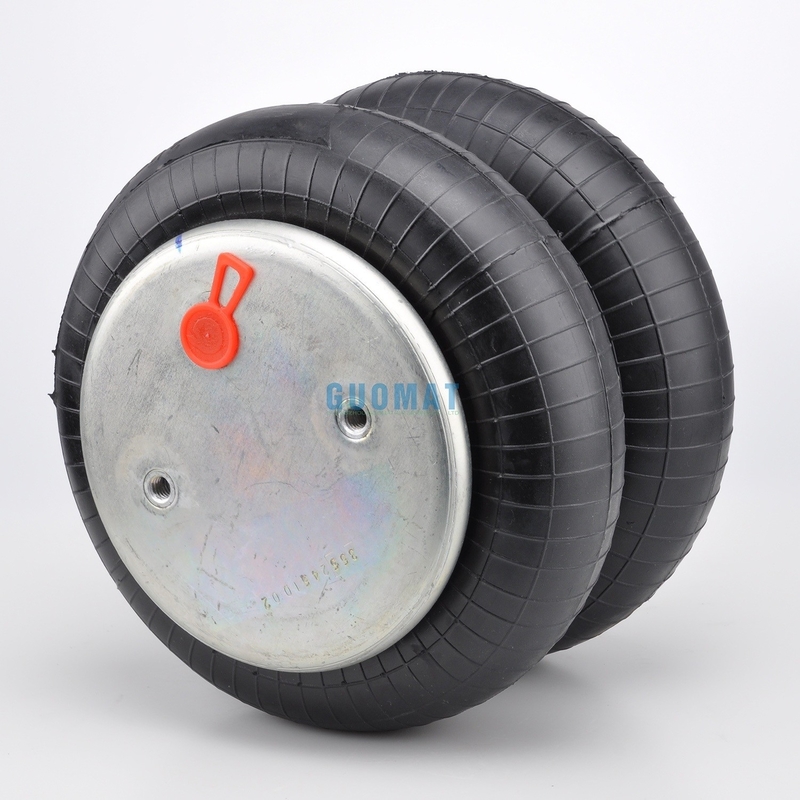

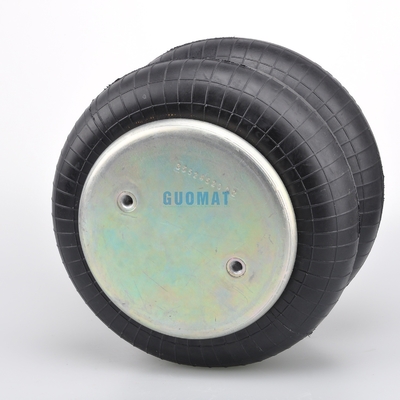

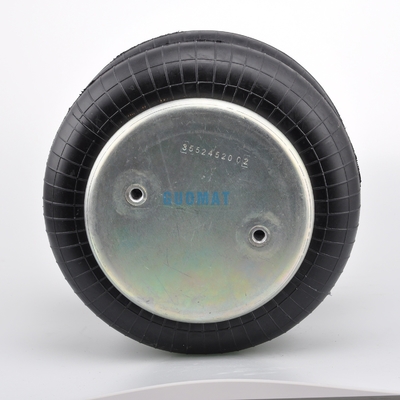

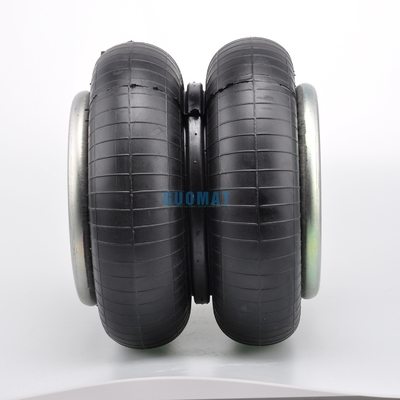

Details pictures of air spring 2B6910:
