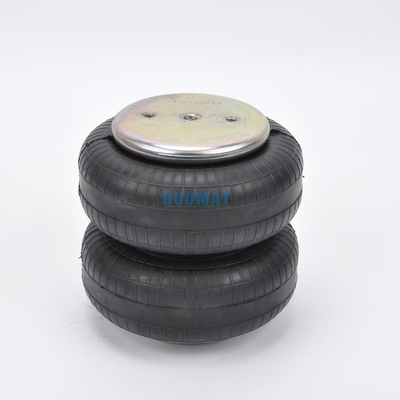

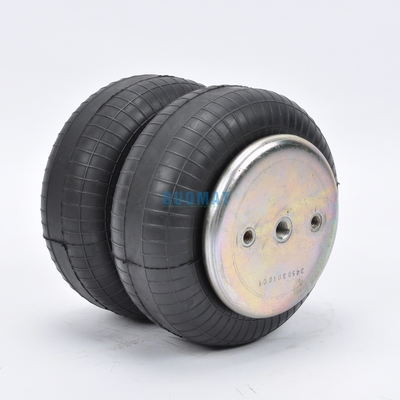

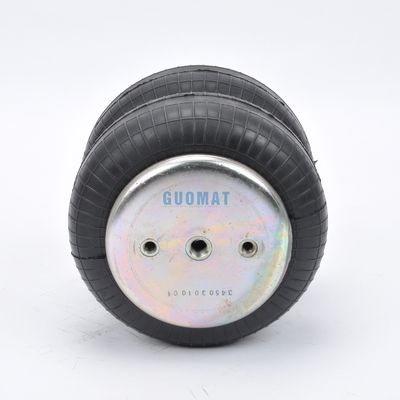

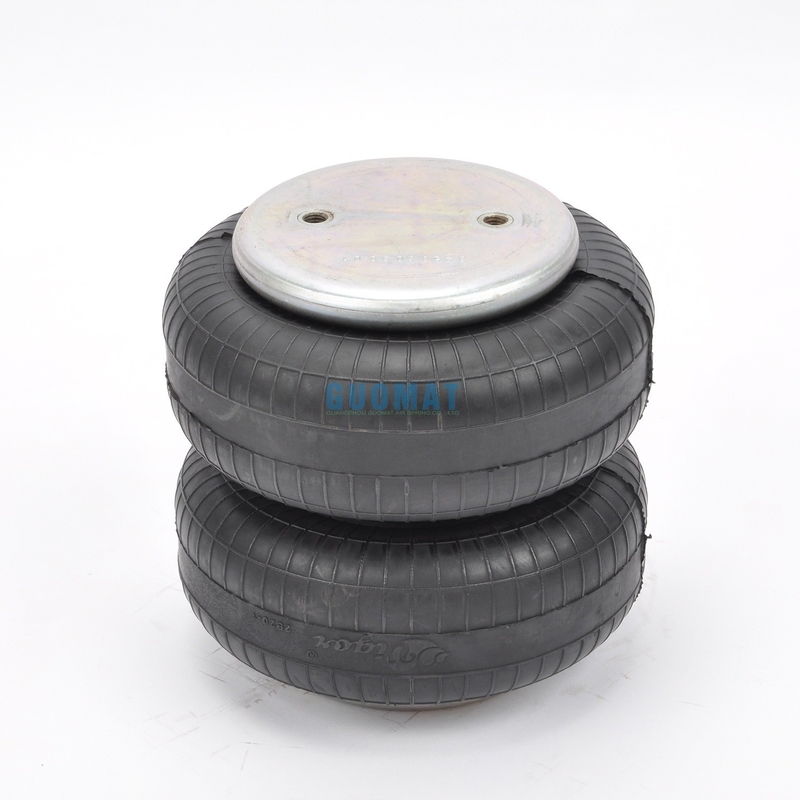

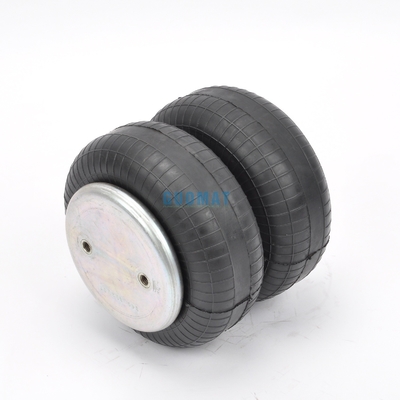

Industrial Air Suspension Replaces Contitech FD200-25 Double Convoluted Air Actuator
Product Information
Cover Plate
Top Cover Plate Diameter: 161 mm
Screw Center Distance of Top Cover Plate: 89 mm
Bottom Cover Plate Diameter: 161 mm
Screw Center Distance of Bottom Cover Plate: 89 mm |
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 2×M8
Bottom Cover Plate Screw(Nut) Tooth: 2×M8 |
Gas Hole/Air Inlet/Air Fitting
Gas Hole: G 1/4 |
Rubber Bellow
Rubber Bellow Max Dia: 265 mm
Minimum Height: 77 mm
Maximum Height: 325 mm
Total Storke: 248 mm |
Cross References
FD 200-25, FD 200 25, FD200-25, FS20025, FD 20025, FS20025
W01-358-6951, W01 358 6951, W013586951, WO1-358-6951, WO1 358 6951, WO13586951
578923206, 2B9-253, 2B9 253, 2B9253, 2b9-253, 2b9 253, 2b9253
6332, 4427
Sc2125, Sc 2125, SC2125, SC 2125
AS0119F, AS01451G, AS 0119F, AS 0119 F, AS 01451G, AS 01451 G
1003586945C
2B6291, 2B 6291
Product Applications
Rubber actuators, compared with traditional products (rigid actuators, spring...) offer numerous advantages such as
- Flexibility (no angle or alignment problem)
- Compactness
- Power / price ratio
- No maintenance or lubrication required
- Durability
- Reliability
- Resistance to aggressive or hot conditions
Support And Services
From Original Equipment Manufacturers (OEM) to aftermarket applications, Enidine offers a unique combination of product selection, engineering excellence and technical support to meet even the toughest application needs.
Global Manufacturing and Sales Facilities offer our customers:
- Highly Trained Distribution Network
- State-of-the Art Engineering Capabilities
- Custom Solution Development
- Customer Service Specialists
- Multiple Open Communication Channels
Through constant evaluation and testing, we bring our customers the most cost effective products with more features, greater performance and improved ease of use for every application requirement.

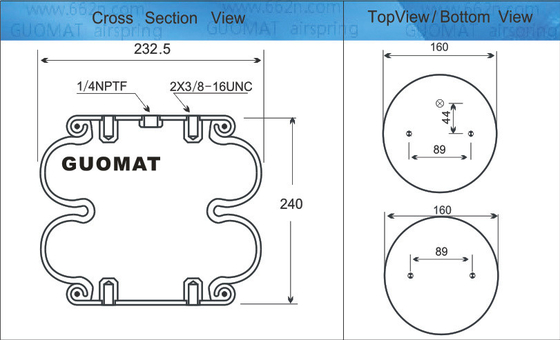

The drawing and data of GUOMAT 2B6951 air spring
