113053/2B-181 Air Actuator Airkraft Air Bag Rubber Bellows Design Height 189MM

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B1207

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B1207	N.W.:	3.0 Kg
Warranty:	One Year	CONTITECH:	FD120-17
Product Name:	GUOMAT	Nuts Type:	2×M8×1.25
Sample:	Available	Bellows Type:	Double Convoluted
Highlight:	189MM Air Actuator , 113053/2B-181 Air Actuator , Rubber Bellows Air Actuator

113053/2B-181 Air Actuator Airkraft Air Bag Rubber Bellows Design Height 189MM

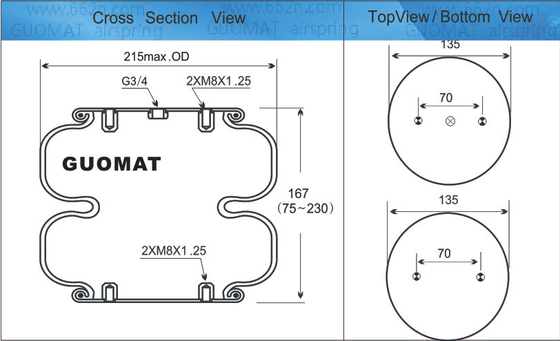

Product Information

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Top Cover Plate : 70 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Bottom Cover Plate : 70mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G3/4

Cover Plate

Top Cover Plate Diameter (Width): 135 mm / 5.31 inches

Bottom Cover Plate Diameter (Width): 135 mm / 5.31 inches

Top Cover Plate Number: 3450

Bottom Cover Plate Number: 3436

Rubber Bellows

Rubber Bellows Natural Diameter : 189 mm

Rubber Bellows Natural Height : 177 mm

Compressed Height: 79 mm / 3.12 inches

Design Height: 178mm-203mm / 7-8 inches

Maximum Diameter: 218 mm / 8.6 inches

Bellows # NO.: 26

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

OEM Original Equipment Manufacturers of FD120-17

CONTITECH 603 N

FIRE STONE air spring FLEX 26

PIRELLI 26

PHOENIX 2B O7 R

AIRKRAFT 114050

BOS CH air spring 822419042

CONTITECH FD120-17

2682 030000

DUNLOP (FR) SO 8201

FES TO FIRE ir spring EB-215-155

GOODYEAR 2B 7-540

NORGREN PM/31082 (8x2)

PIRELLI T26 84181

TAURUS KF 218

WEFORMA WBZ 300-E1

AIRKRAFT 113053

Product Applications

Industrial air springs are widely used in various fields such as paper-making machinery, vehicle detection equipment, mechanical grippers, and shaking tables. These springs effectively improve the working efficiency, safety, and service life of the equipment. In these fields, the products play an important role in damping, lifting, and supporting. They help customers save manufacturing costs and gain more economic profits.

The products feature low cost, wide use, and easy operation. This makes them a cost-effective solution for various applications.
They achieve a long service life and require no maintenance or lubrication. This reduces the need for frequent replacements and maintenance, saving time and resources.
The products allow for flexible expansion and contraction, providing strong loading capacity. Their convenient design and simple structure make them easy to install and use.
They come with no friction and a soft medium, ensuring smooth and reliable operation. This helps to reduce wear and tear on the equipment, improving its overall performance and lifespan.

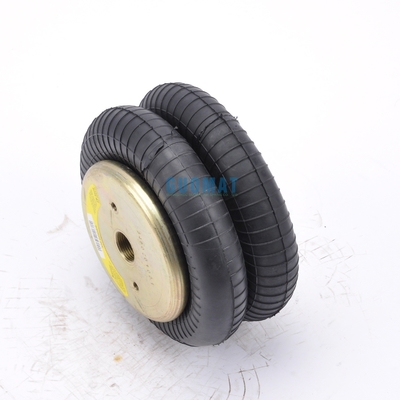

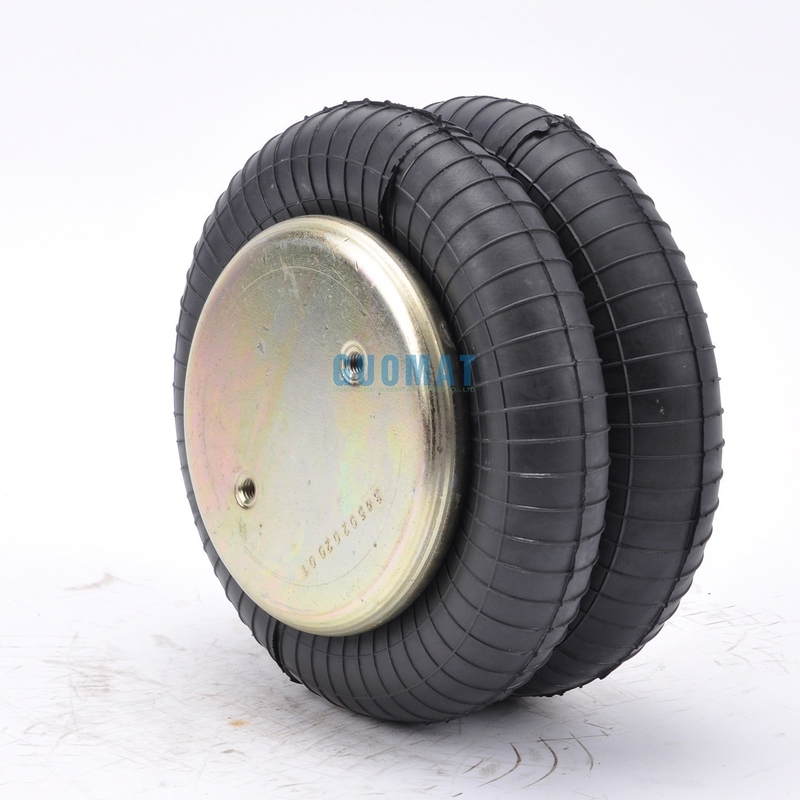

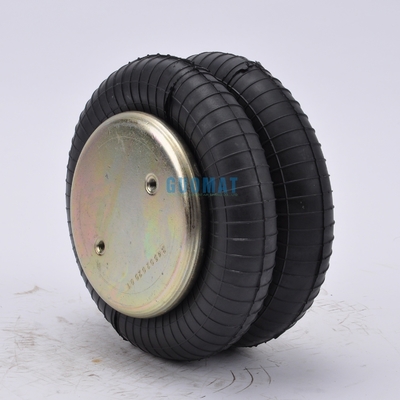

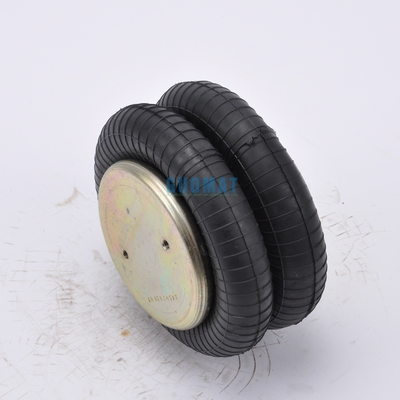

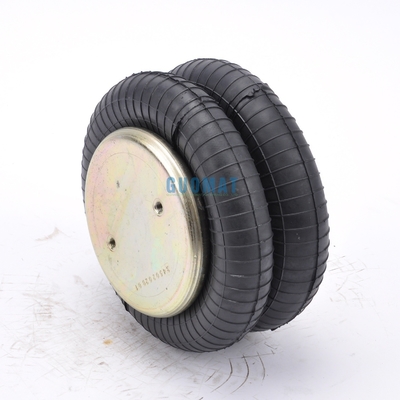

Double Convoluted Air Spring Related Pictures
