| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6927 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD59.9-69.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| N.W.: | 3.0 Kg | Pressure Ability: | 0.2-0.8 M PA |
|---|---|---|---|
| Air Inlet: | G3/4 | Top Plate Hole/Stud: | 3/4 NPT |
| Bottom Plate Hole/Stud: | 3/8 NPT | Bottom Plate Dia: | 160 Mm |
| Warranty: | One Year | Type: | Suspension Spring |
| High Light: | 2B9-218 Industrial Air Spring,578923206 Industrial Air Spring |
||

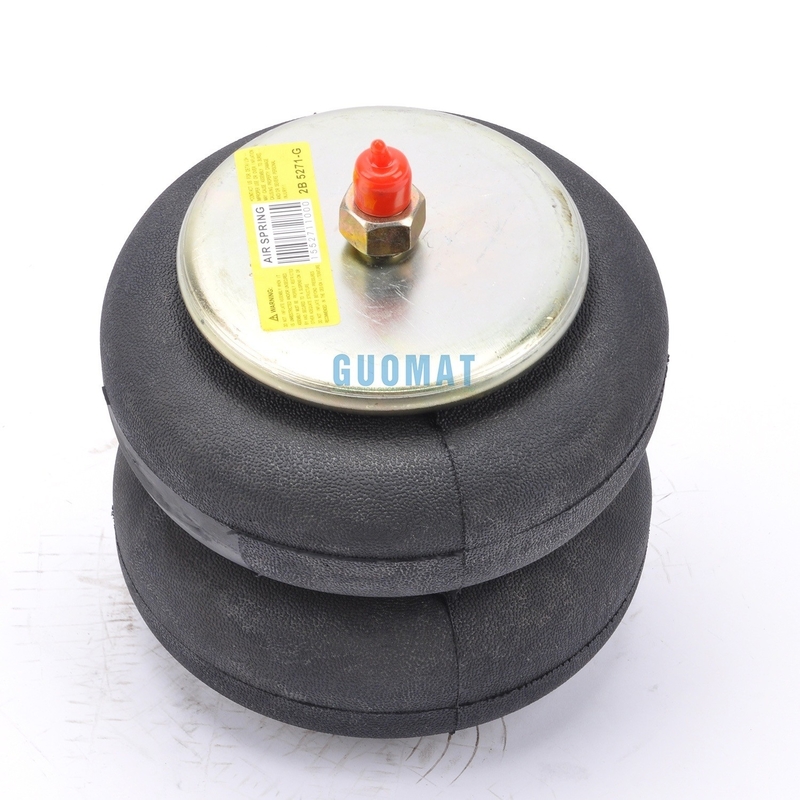

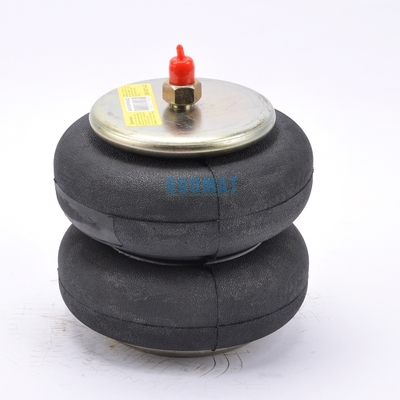

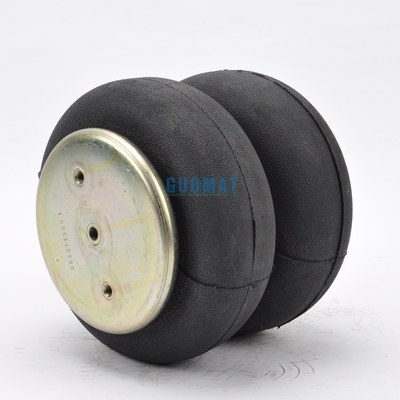

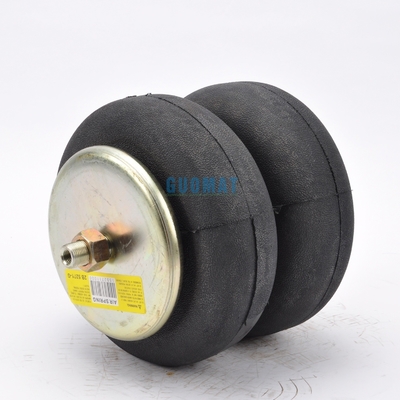

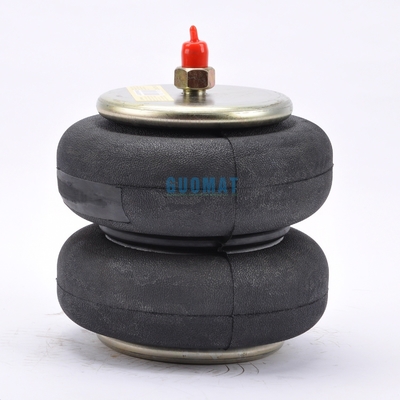

2B9-218 Goodyear Air Spring Industrial Air Spring Rubber Bellows 578923206 For SAF Holland 57006927
2B6927 Cross others OEM
| OEM References Numbers | References Numbers |
|
GUOMAT :2B6927 Fire stone Air Spring : W01-358-6927 |
Triangle : 6332/4453 |
| Contitech : FD 200-25 453 | Leland : Sc2072 |
| Contitech :: 161336 | SAF Holland : 57006927 |
| Goodyear : 2B9-218 | Tuthill Technology : 1290601 |
| Goodyear : 578923206/2 | Reyco : 12906-01 |
Airspring Supplier: ContiTech
Reference: 161336
Competitor / Supplier Number: FD20025453
Airspring Supplier: Goodyear
Reference: 578923206
Competitor / Supplier Number: 2B9218
Airspring Supplier: Triangle
Reference: 6332
Competitor / Supplier Number: 4453
Suspension Supplier: Leland
Competitor / Supplier Number: SC2072
Suspension Supplier: SAF Holland
Competitor / Supplier Number: 57006927
Suspension Supplier: Tuthill Technology
FSIP OEM: W017556927
Suspension Supplier: Tuthill Technology
Competitor / Supplier Number: 1290601
Fire stone Air Spring trimmed: w013586927
GUOMAT 2B6927 Technical parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1pcsX 3/4-16UNF
Top Cover Plate Screw (Nut) is Combined with the (Gas Hole / Air inlet / Air Fitting) which is In The Middle Of The Top Cover Plate
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF
Cover Plate
Top Cover Plate Diameter: 160 mm / 6.31 inches
Bottom Cover Plate Diameter: 160 mm / 6.31 inches
Rubber Bellows
Rubber Bellows MAX Diameter: 262 mm
Rubber Bellows Natural Diameter :225 mm / 8.88 inches
The Working Stroke : MAX 325mm to MIN 81 mm
Maximum Height : 325 mm
Minimum Height :81 mm / 3.12 inches
Stroke Height : 224 mm
Bumper block / Buffer block
With Bumper Block Or Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Fire stone Air Spring Part Number:W01-358-6927 / w013586927 / w01 358 6927
Fire stone Air Spring Bellows Number:20-2
ContiTech : FD20025453 / FD200-25453 FD200-25 453
ContiTech : 16133
Goodyear Part Number:2B9-218 / 2B9218 / 2B9 218
Goodyear Bellows Number:578-92-3-202 / :578923202 / :578 92 3 202
Reyco Number:12906-01
Triangle Part Number:4453
Triangle Bellows Number:6332
Leland : SC2072
SAF Holland : 57006927
Tuthill Technology : FSIP OEM: W017556927
Tuthill Technology : 1290601
Details Technical data at the below photo
Vibration isolation - dynamic characteristic values
|
Design height H: recommended 10 inch, minimum 9.06 inch |
||||||
|
Pressure p [psi] |
40 |
60 |
80 |
100 |
120 |
Vol. V [in.3] |
|
Force (Load) [lbf] |
1230 |
1890 |
2540 |
3190 |
3840 |
|
|
Spring rate [lbf/in.] |
389 |
552 |
741 |
932 |
1080 |
538 |
|
Natural frequency [Hz] |
1.8 |
1.8 |
1.7 |
1.7 |
1.7 |
|
Pneumatic application - static characteristic values Force F [kN]
|
Force F [lbf] |
|||||||
|
Pressure p [psi] |
40 |
6 0 |
80 |
100 |
120 |
Vol. V [in.3] |
|
|
Height H [in.] |
11.0 |
948 |
1470 |
2000 |
2550 |
3110 |
560 |
|
10.0 |
1180 |
1780 |
2430 |
3060 |
3720 |
540 |
|
|
9.0 |
1370 |
2070 |
2780 |
3510 |
4240 |
510 |
|
|
8.0 |
1530 |
2280 |
3070 |
3850 |
4640 |
470 |
|
|
7.0 |
1670 |
2490 |
3340 |
4200 |
5030 |
440 |
|
|
6.0 |
1790 |
2680 |
3570 |
4470 |
5360 |
400 |
|
|
5.0 |
1880 |
2800 |
3750 |
4700 |
5570 |
350 |
|
|
4.0 |
1960 |
2910 |
3910 |
4900 |
5750 |
300 |
|

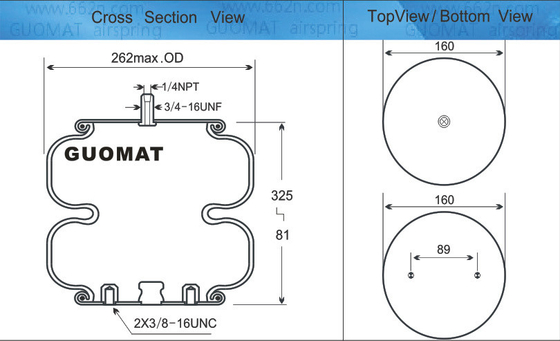

The drawing and data of GUOMAT 2B6927 air spring:
