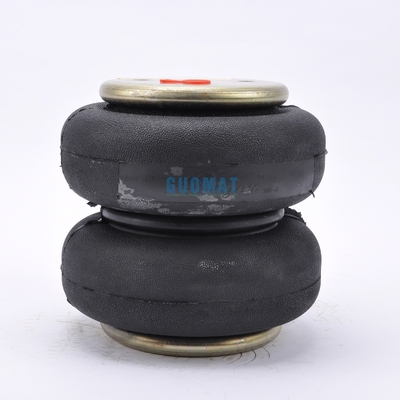

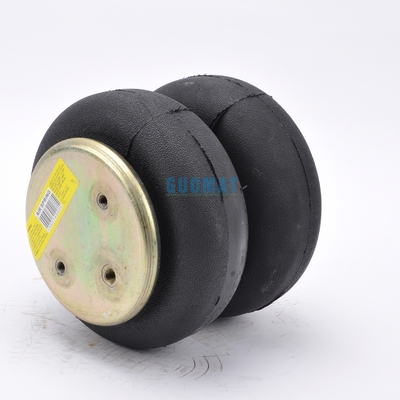

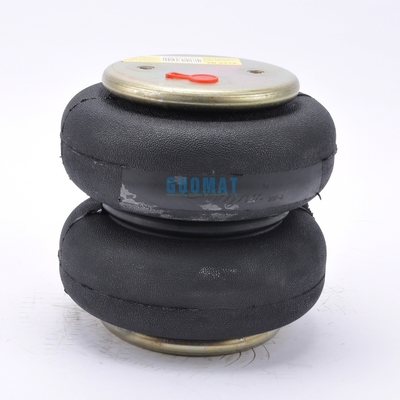

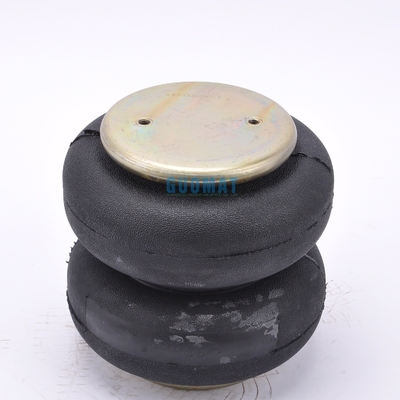

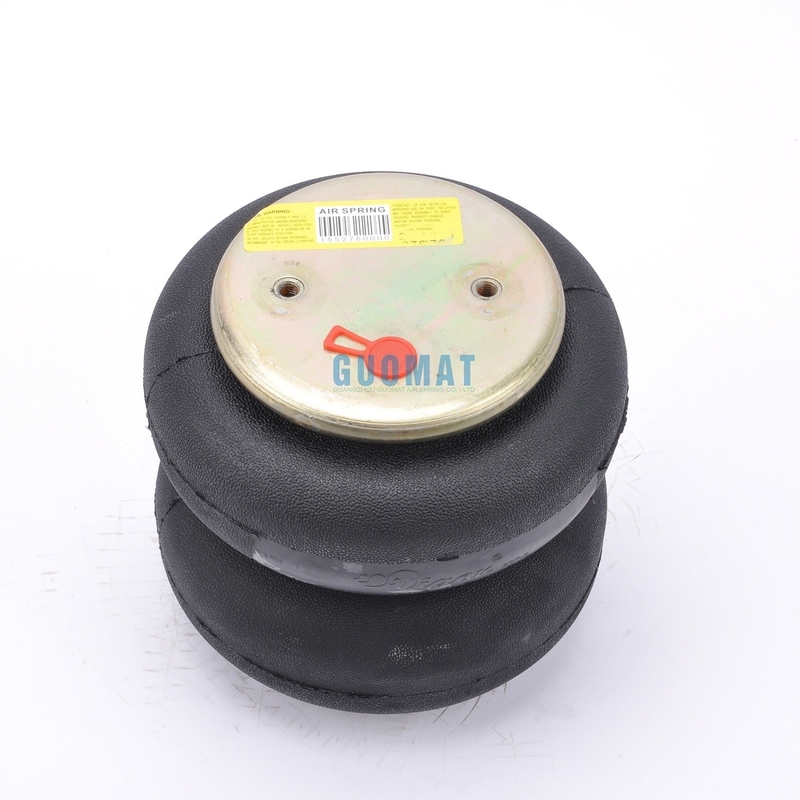

Dunlop S09280 Air Suspension Goodyear 2B9-269 Assembly Firestone Air Spring W01M587679

Dunlop S0 9280 Air Suspension Goodyear 2B9-269 Assembly Firestone Air Spring W01M587679


2B6276 Cross others OEM

GUOMAT 2B6276 Specifications and Technical Data

Firestone Air Spring : Part Number: W01-M58-7679 / W01M587679 / W01 M58 7679

Compressed Height: 3.12 inches /

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut 44 mm

Top Cover Plate Screw (Nut) Tooth : 2pcsXM10X1.5

Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM10X1.5

Rubber Bellows MAX Diameter: 262 mm

The Working Stroke : MAX 325 mm to MIN 95mm

Gas Hole / Air inlet : 1/4 NPTF

Fire stone Air Spring : Bellows Number: 20-2

Goodyear Part Number: 2B9-269

Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206

Triangle Part Number: 4426

Bellows NO.: 20-2

Order Number: W01-M58-7679

Assembly Weight: 8.1 lbs

Design Height: 9-11 inches

Loading Capacity at 20 psig: 648 lbsf

Loading Capacity at 60 psig: 1,944 lbsf

Loading Capacity at 90 psig: 2,916 lbsf

Maximum Diameter: 10.4 inches

Operating Temperature: 56Cº to -53Cº

Description convolution/ convoluted air spring

The winding air spring is the bellows GUOMAT air spring. The bellows air spring has one, two or three loops in the flexible member. The dual-compound air bags are commonly used as lift springs or shafts and trailers for air springs, as well as for industrial and commercial applications and devices for actuators or insulators. The specifications of your 2b9-269 will vary, but the double fold's GUOMAT bag can be found in the crimp design and the sleeve bellows. They will provide similar features and functions, but the sleeve type of the maintainer and the maintainer and the external interchangeable parts weave the final permanent connection between the rings.

Compared with the traditional coil springs and leaf springs, air suspension springs have the following characteristics:

Reduce energy consumption: air suspension intelligent balance system, according to the road conditions, weather, intelligent adjustment of body balance, to the maximum extent possible to ensure the smooth operation of the vehicle, saving energy consumption, such as: When the vehicle driving on the highway, Air suspension system based on the characteristics of high speed, straight road and other characteristics, a comprehensive analysis, intelligent adjustment of body height, so that the overall body to reduce the windward resistance of vehicles to achieve the purpose of saving fuel consumption.
