2B9-253 Goodyear Air Springs 578923206 Firestone W013586945 For Ridewell 1003586945C

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6945

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Pressure Ability:	0.2-0.8 M PA	Air Inlet:	M14X1.5
Top Plate Hole/Stud:	2xm10X1.5	Top Plate Dia:	160 Mm
Transport Package:	Cartons	Trademark:	Neutral
Origin:	China	Material:	Rubber And Iron
Highlight:	2B9-253 Goodyear Air Springs , Goodyear Air Springs 578923206

2B9-253 Goodyear Air Springs 578923206 Firestone W013586945 For Ridewell 1003586945C

Goodyear: 2B6945 Cross others OEM

GUOMAT NO.2B6945

Fire stone Air Spring Part NO.:W01-358-6945
Fire stone Air Spring Part NO.:W01 358 6945
Fire stone Air Spring Part NO.:W013586945
Fire stone Air Spring Bellows NO.:20-2

Contitech Part NO.: FD 200-25 427

Contitech Part NO. :FD200-25 427

Contitech Part NO.:FD20025 427

Goodyear Part NO.: 2B9-253

Goodyear Part NO.:2B9253

Goodyear Part NO.:2B9253
Goodyear Bellows NO.: 578-92-3-206

Goodyear Bellows NO.:578 92 3 206

Goodyear Bellows NO.:578923206

Triangle Part Number: 4427

Triangle Bellows Number:6332
Leland : Sc2125
Watson&Chalin: AS0119F
Watson&Chalin:AS01451G
Ridewell1003586945C

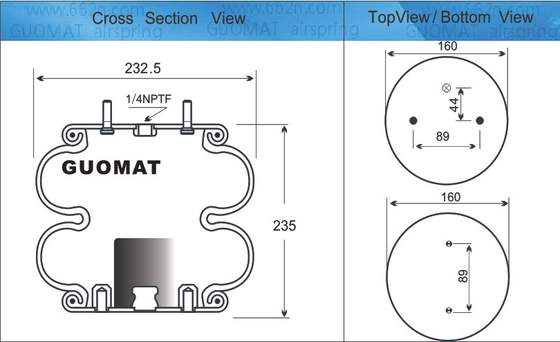

GUOMAT 2B6945 Specifications and Technical Data

Compressed Height: 3.12 inches /

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut: 44.5 mm

Top Cover Plate Screw (Nut) Tooth : 2X1/2-13UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

One hole in the middle of the Bottom Cover Plate:10.3

Rubber Bellows MAX Diameter: 262 mm

The Working Stroke : MAX 325 mm to MIN 95 mm

Gas Hole / Air inlet : 1/4 NPTF

Fire stone Air Spring Bellows Number: 20-2

Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206

Bellows NO.: 20-2

Assembly Weight: 8.1 lbs

Design Height: 9-11 inches

Loading Capacity at 20 psig: 648 lbsf

Loading Capacity at 60 psig: 1,944 lbsf

Loading Capacity at 90 psig: 2,916 lbsf

Maximum Diameter: 10.4 inches

Operating Temperature: 56Cº to -53Cº

Compressed Height: 4.10 inches
Top Plate Number:3101
Top Plate Width:6.31 inches
Piston Number:3100
Piston Width:6.31 inches

Description and application Of GUOMAT 2B6945 air spring:

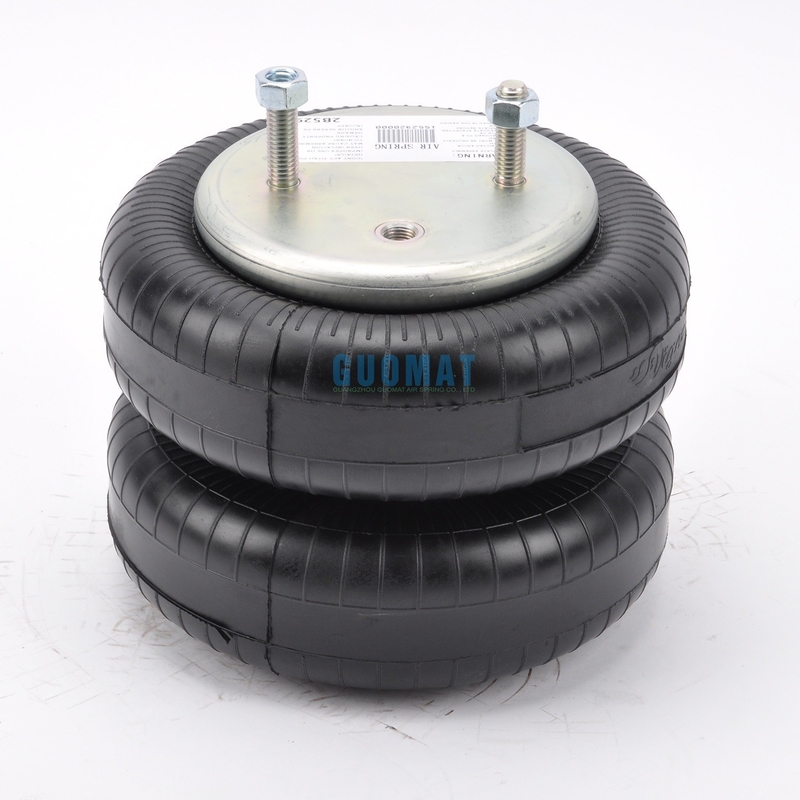

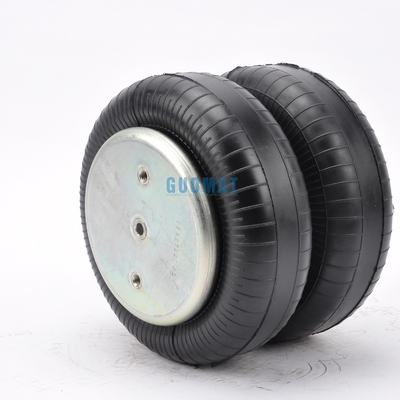

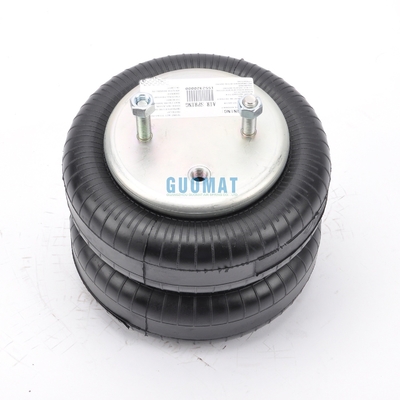

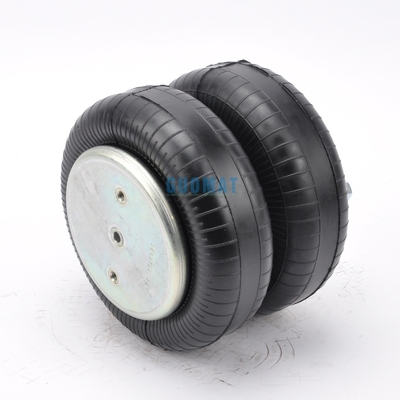

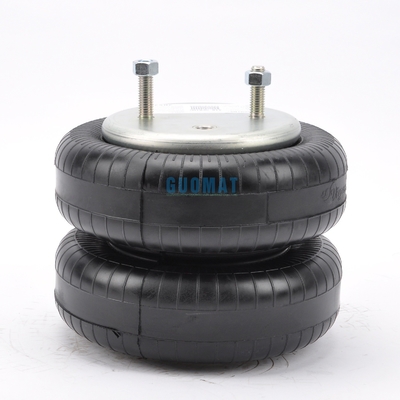

This kind of GUOMAT 2B6945 that has two Two Pillars Nuts at the top of the Cover Plate And Two Blind Nuts at the bottom of the Cover Plate. one Gas Hole / Air inlet 1/4 NPTF at the side of the top of the cover plate.This air spring can be used on trailers for retrofitting. At the same time can be used in many industrial equipment.It is very convenient to install.

W01-358-6945 Firestone Air Spring Assembly Cross Reference Numbers:

SC2125; SP2B12RA6945; 3546945; W013586945; 2B9253; FD20025427; SC2125/LoadGuard;

AS0119F/Watson&Chalin; AS01451G/Watson&Chalin/1003586945C/Ridewell;

	Description	Assembly Order No.
Style 20-2	Blind nuts,1/4 BSP	W01-M58-6183
Two Ply Bellows	Blind nuts,3/4 BSP	W01-M58-6194
	Countersunk steel bead rings,40 mm bolts, nuts, washers	W01-M58-6880
	Rubber bellows only	W01-358-0305
