FD 330-22 327 Contitech Air Springs Triangle 6316 / 4327 Hendrickson S13043 Suspension Air Bags

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B7424

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD69.9-79.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Item Name:	Suspension Rubber Bellows	Pressure Ability:	0.2-0.8 M PA
Air Inlet:	1/4NPT	Top Plate Hole/Stud:	2X1/2-13unc
Bottom Plate Hole/Stud:	2X1/2-13unc	Top Plate Dia:	231 Mm
Warranty:	One Year	Material:	Rubber And Iron
Highlight:	FD 330-22 327 Contitech Air Springs , S13043 Contitech Air Springs

FD 330-22 327 Contitech Air Springs Triangle 6316 / 4327 Hendrickson S13043 Suspension Air Bags

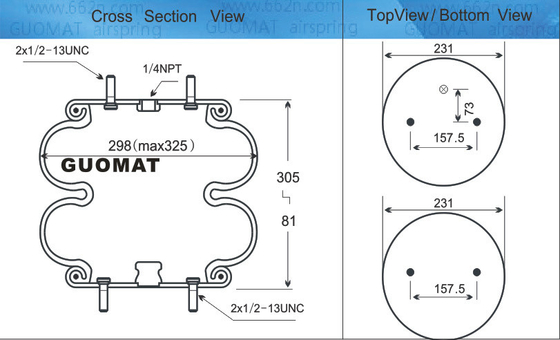

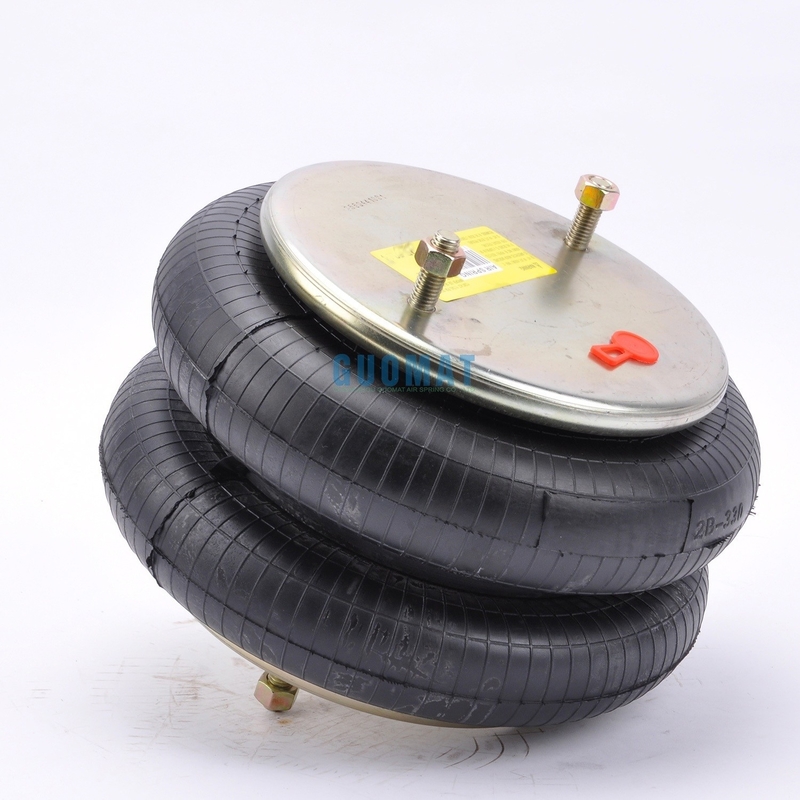

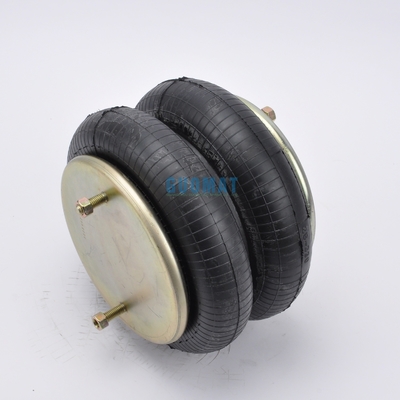

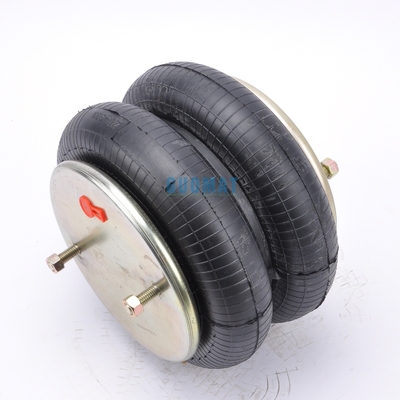

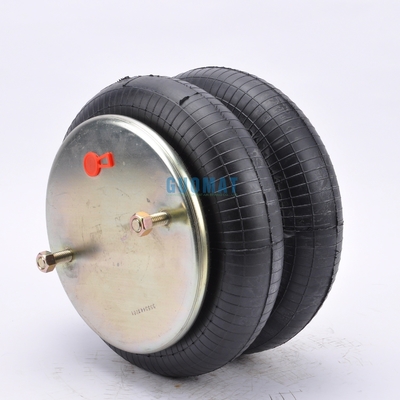

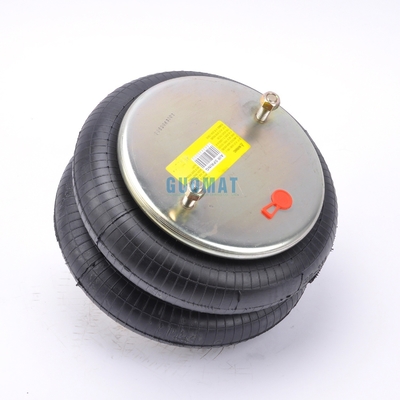

GUOMAT NO.2B7424 Detail information:

Nut/ Blind Nut

Top cover screw (nut) teeth: 2 X 1 / 2-13UNC
Top cover screw center distance: 157.5 mm
Bottom cover screw (nut) teeth: 2 X 1 / 2-13UNC
Bottom cover screw center distance: 157.5 mm

air hole / air inlet / air connector
Air vent / air inlet: 1 / 4 NPT
Center distance between air inlet and nut: 73 mm

cover
Top cover diameter (width): 231 mm / 9.00 inches
Bottom cover diameter (width): 231 mm / 9.00 inches
Threaded hole: 3 / 8-16

Rubber bellows

Rubber bellows natural diameter: 298 mm / 11.7 inches
Rubber bellows MAX diameter: 325 mm / 12.9 inches
Compressed height: 81 mm / 4.12 inches
Minimum bump height: 81 mm / 4.12 inches
Design height: 203 mm - 241 mm / 8-9.5 inches
Maximum height: 305 mm / 12 inches
Bellows #No. :twenty two
Working stroke: 224 mm / 8.8 inches

bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Girdle Hoop: a belt hoop

Manufacturer Cross OEM Reference	Other Cross OEM Reference
Fire stone Air Spring Bellows Number:22	Sauer : P10-755
Fire stone Air Spring : W01-358-7424 / W01 358 7424 / W013587424	SAF Holland : Tc1442
Fire stone Air Spring Top Plate Number:3220	Tuthill : 6421
Fire stone Air SpringPiston Number:3256	Brake & Wheel : M3509
Contitech : FD 330-22 327 /FD330 22 327 /FD33022327	Ridewell : 1003587424C
Goodyear Part Number:2B12-300 /2B12 300 /2B12300	Watson&Chalin : As0009
Goodyear Bellows Number:578-92-3-309 /578 92 3 309 /578923309	Vol vo Air Spring : 3130504
Triangle Bellows Number:6316	R & S Truck & Body: 1090215
Triangle Part Number:4327	Neway : 90557014(AL-41&45)
Hendrickson : S13043	Holland (Neway) Number:905-57-014
Dayton : 3547424	Watson & Chalin #:AS-0009
Leland : Sc2024	Note:R & S TRUCK & BODY # 1090215
Navistar : 554785C1

Airmount / Airstroke Actuator	WO1-358-7424, 22D 2ST1/4NPT 2ST.

Maximum Diameter @ 100 PSIG (mm)	327.66	Material	2-Ply Standard Cord
Maximum Height (mm)	256.54	Blind Nut Centers (mm)	157.48
Maximum Stroke (mm)	175.26	Port Offset from Blind Nut Centerline (mm)	73.152
Minimum Usable Height (mm)	81.28	Design Height	241.3
1 Inch (pounds)	7180	40 psig (pounds)	2060
3 Inch (pounds)	6470	60 psig (pounds)	3170
Maximum Stroke (pounds)	3700	80 psig (pounds)	4280
Equivalent High Strength Style Number	210	400 CPM %	92.4
Natural Frequency (@80 psig) (cpm)	106	800 CPM %	98.2
Extended Height (Similar End Closure) Style Number	22_Ì1.5	1500 CPM %	99.5
