| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6900 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD69.9-79.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| N.W.: | 3.5 Kg | Pressure Ability: | 0.2-0.8 M PA |
|---|---|---|---|
| Air Inlet: | 3/4 NPT | Top Plate Hole/Stud: | 3/8-16unc |
| Bottom Plate Hole/Stud: | 3/8-16unc | Top Plate Dia: | 160 Mm |
| Bottom Plate Dia: | 160 Mm | Transport Package: | Cartons |

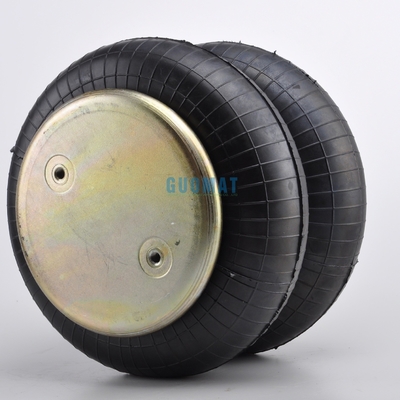

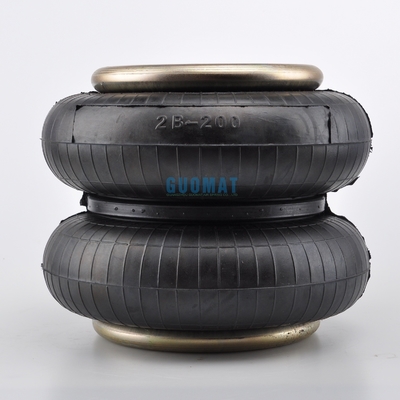

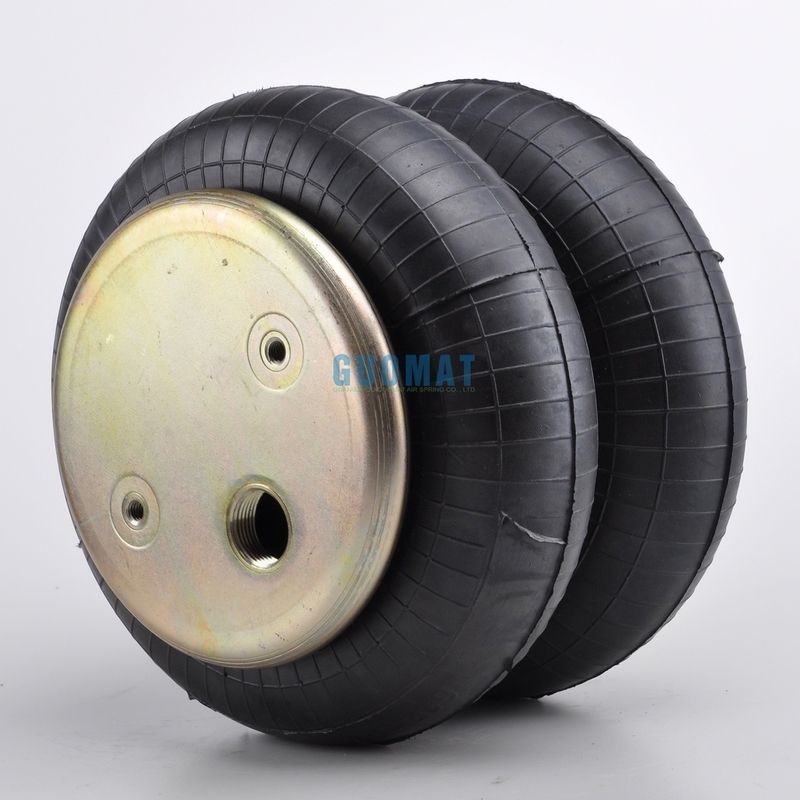

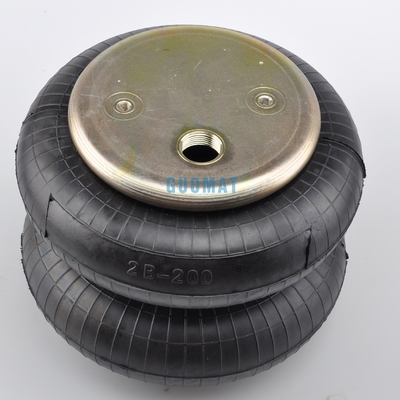

FD 200-19 319 Contitech Air Spring W013586900 Air Spring Actuator With 3/4 NPT Air Inlet Rubber Bellows 578923202
OEM Original Equipment Manufacturer:
| BELLOW Numbers | COMPLETE Numbers |
| CONTITECH FD 20019 S / 895 N CONTITECH FD20019S / 895 N |
FIRE STONE Air Spring : W01-358-6900 FIRE STONE Air Spring : W01 358 6900 FIRE STONE Air Spring : W013586900 |
| FIRE STONE Air Spring FLEX 20 | Contitech : FD 200-19 320 Contitech : FD 200 19 320 Contitech : FD200 19 320 |
|
FIRE STONE Air Spring W01-358-0138 FIRE STONE Air Spring W01 358 0138 FIRE STONE Air Spring W013580138 |
Goodyear : 2B9-200 Goodyear :2B9 200 Goodyear : 2B9-202 Goodyear : 2B9-216 |
| 095-0009 | Hendrickson : S8768/458433 |
| GOODYEAR 2B 9-200 | : 578423202 |
| 578923202 | Triangle: 6325 Triangle: 4320 |
| PHOENIX 2B 12R PHOENIX 2B12R |
Dayton : 3546910 |
| PIRELLI T20 86600 | Leland : Sc2011 |
| AIRKRAFT 114001 | Navistar : 554783C1 |
| Dina : A812719/AZ812719 | |
| SAF Holland : 57006910 | |
| Trailers De : 133128 | |
| Brake & Wheel : M3501 | |
| Ridewell : 1003586910C | |
| Tuthill : 1371 | |
| Watson&Chalin : AS-0001/AS-0156G |

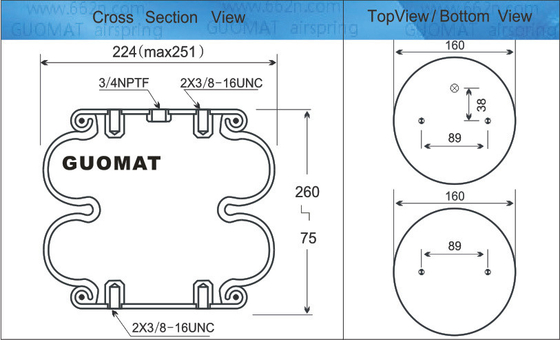

Specifications and Technical Data of W01-358-6900
Fire stone Air Spring part number: W01-358-6900 / W013586900 / W01 358 6900
Compressed height: 3.12
Number of top plates: 3079
Top cover diameter: 6.31 inches / 160 mm
Number of bottom pistons: 3090
Bottom cover diameter: 6.31 inches / 160 mm
Screw center distance: 89 mm
The distance between the nuts is 44.5 mm
Top cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Bottom cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Rubber bellows MAX diameter: 251 mm
Rubber bellows natural diameter 224 mm
Working stroke: up to 260 mm to MIN 75 mm
Air vent / air inlet: 3/4 NPTF
Fire stone Air Spring Corrugated Tube Number: 20
Goodyear part number: 2B9-200 / 2B9200 / 2B9 200
Goodyear Bellows Number: 578-92-3-202 / 578923202/578 92 3 202
Number of grids: 1371
Hendrickson Trailer No.: S-8768
Hendrickson Truck Number: 45843-3
Ridewell number: 1003586910C
Triangle part number: 4320
Triangle bellows number: 6325
Watson&Chalin#:AS-0001
Description Assembly Order No.
Blind nuts, 1/4 NPT W01-358-6910
Blind nuts, 1/4 NPT, bumper W01-358-6911
Blind nuts, 3/4 NPT W01-358-6900
Blind nuts, 3/4 NPT, bumper W01-358-6901
Countersunk steel bead rings,
13/4 bolts, nuts, washers W01-358-6923
Rubber bellows only W01-358-0138
The composition of convoluted air springs
Upper Steel Plate: upper cover plate is bearing pressure and seal air inside
Waist ring: Stable part skins to prevent deformation
The connotation of screw hole: fixed as the installation of air spring in car or equipment
Gas-Filled hole / Air Inlet: By filling air porosity for inflatable air spring
Flexible bellows: The main part, can lock the air and flexible activities up and down
Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision, You can choose to have also can not
The connotation of screw hole: fixed as the installation of air spring in car or equipment
Lower steel Plate: Lower steel Plate is bearing pressure and seal air inside
How to Calculation For Pneumatics, Such as
• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)
