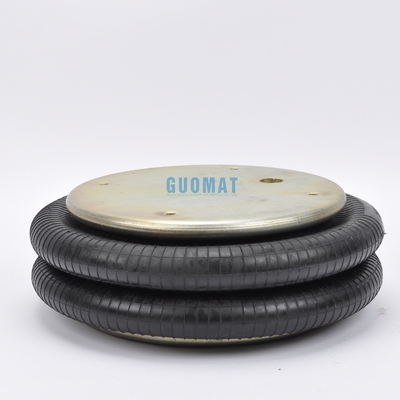

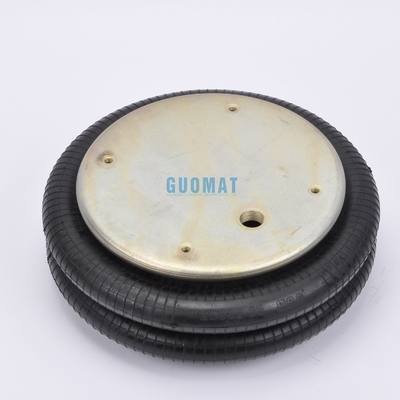

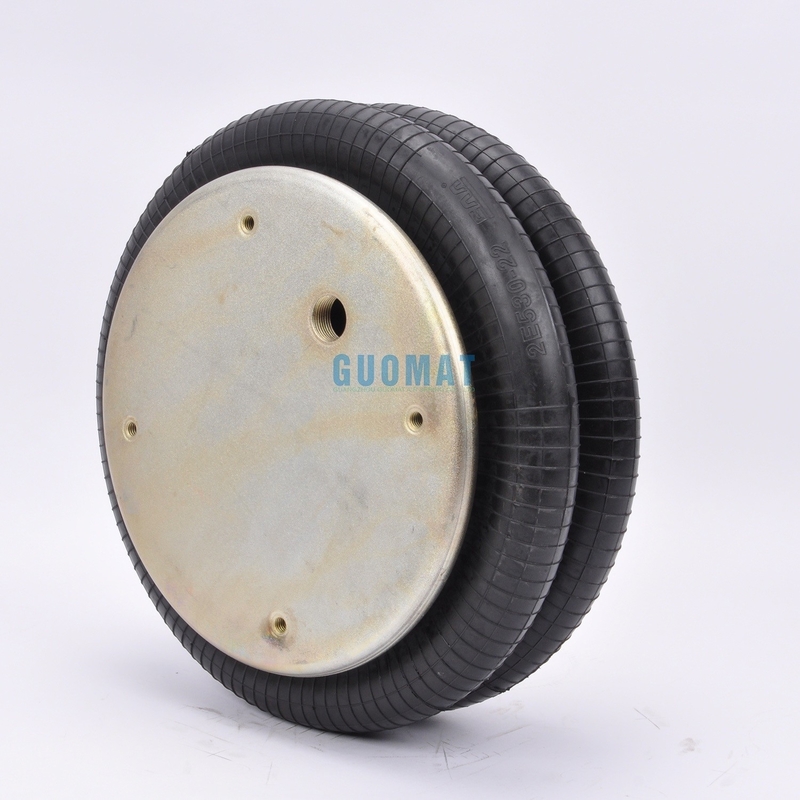

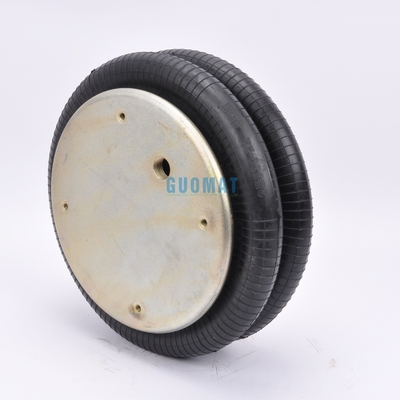

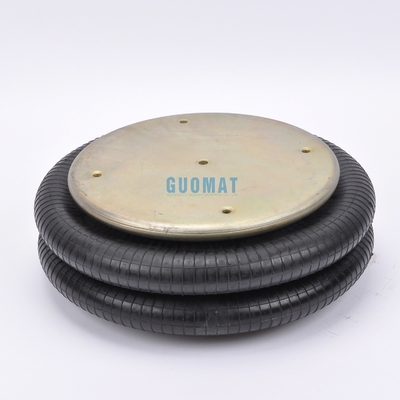

FIRESTONE Air Spring W013587135 Air Spring Bellows 21T2 GOODYEAR 2B14-360 Flex 556228554
2B7135 OEM Original Equipment Manufacturer:
GUOMAT NO.:2B53022
Contitech No:FD530-22 311
Contitech No:FD530 22 311
Firestone Air Spring:21T2 W01-358-7135
Firestone Air Spring:21T2 W01 358 7135
Firestone Air Spring:21T2 W013587135
GOODYEAR:2B14-360
GOODYEAR:2B14360
GOODYEAR:2B14 360
GOODYEAR::556 22 8 554
GOODYEAR::556-22-8-554
GOODYEAR::556228554
Technical Parameters of 2B7135
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4 pcs X M10X1.75
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M10X1.75
Screw Center Distance of Bottom Cover Plate : 159 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4NPT , Combination Stud/Air Inlet Stud

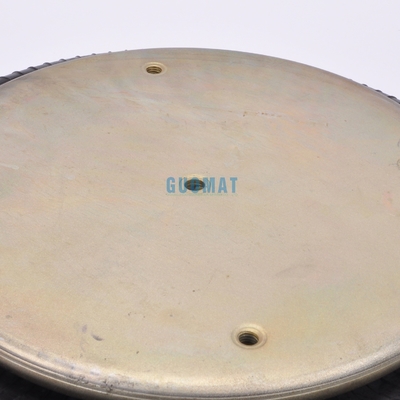

Cover Plate
Top Cover Plate Diameter (Width): 315 mm
Bottom Cover Plate Diameter (Width): 315 mm
Rubber Bellows
Rubber Bellows MAX Diameter : 395 mm
Maximum Height: 300 mm
Working Stroke : 90 mm
Bumper block / Buffer block
With Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Type
Order No.
Rubber bellows only
60406
with crimped plates, G1/4 air inlet
A = 79.4 mm excentrical
61362
with crimped plates, G3/4 air inlet
A = 79.4 mm excentrical
66512
with crimped plates, G1 air inlet
A = 79.4 mm excentrical
2682075000
Overall weight 6.9 kg
|
Vibration isolation - dynamic characteristic values
Design height H: recommended 250mm, minimum 225mm
|
|
Pressure p [bar]
|
3
|
4
|
5
|
6
|
7
|
8
|
Vol. V [l]
|
|
Force (Load) [kN]
|
15.2
|
20.7
|
25.8
|
31.5
|
36.8
|
42
|
|
|
Spring rate [N/mm]
|
222.5
|
286
|
349.5
|
413
|
476.5
|
540
|
19
|
|
Natural frequency [Hz]
|
1.9
|
1.8
|
1.8
|
1.8
|
1.8
|
1.7
|
|
|
Pneumatic application - static characteristic values
Force F [kN]
|
|
Pressure p [bar]
|
3
|
4
|
5
|
6
|
7
|
8
|
Vol. V [l]
|
|
Height H [mm]
|
260
|
14.1
|
19.3
|
24.1
|
29.5
|
34.5
|
39.4
|
20
|
|
220
|
18.2
|
24.4
|
30.5
|
37
|
43.2
|
49.1
|
17
|
|
180
|
21
|
28.2
|
35.3
|
42.6
|
49.7
|
56.8
|
14
|
|
140
|
23.1
|
31
|
38.7
|
46.5
|
54.3
|
61.9
|
11
|
|
100
|
24.4
|
32.3
|
40.4
|
48.7
|
56.8
|
64.7
|
7.2
|
