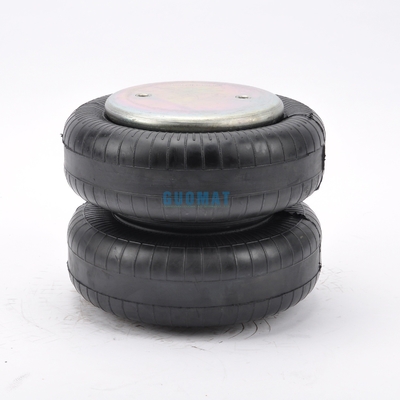

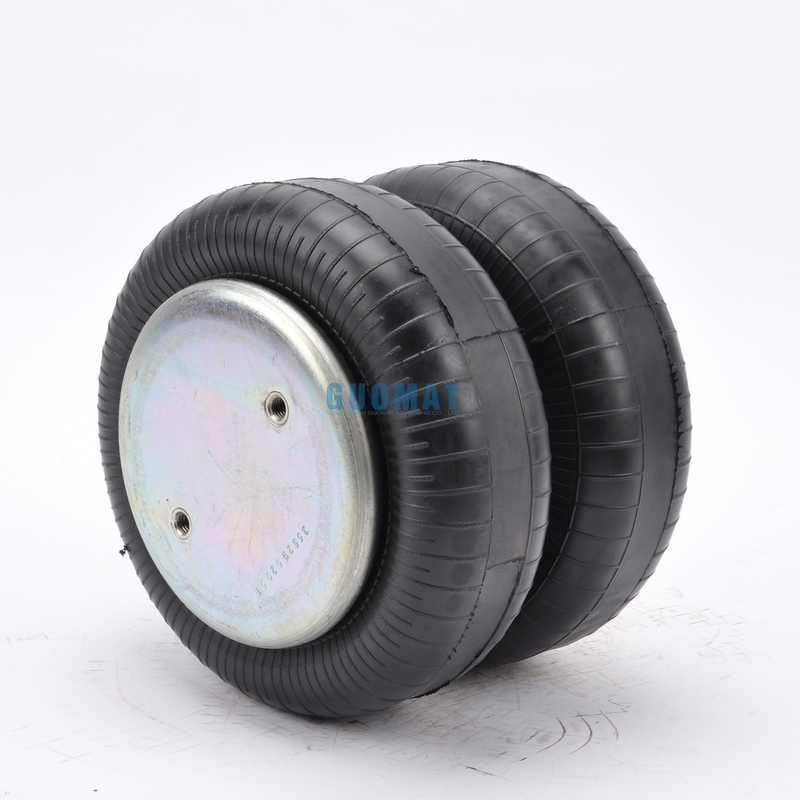

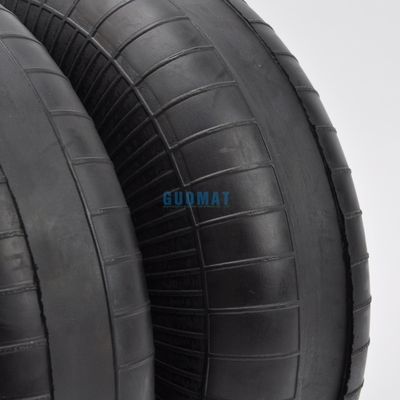

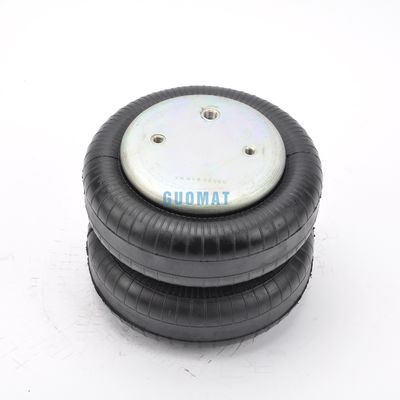

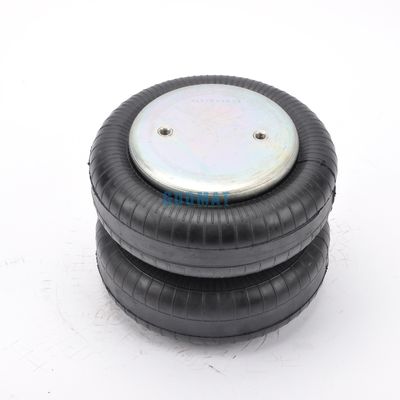

Contitech Rubber Air Spring FD200-25 Cross Firestone W013586951 Suspension Systems

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6951

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6951	Pressure Ability:	0.2-0.8 M PA
Warranty:	One Year	Goodyear:	2B9-253
Bellow Type:	Double Convoluted	Type:	Air Spring/Air Suspension
Min. Height:	77 MM	Max. Height:	325 MM \| Customized Request
Highlight:	Cross Firestone Rubber Air Spring , FD200-25 Rubber Air Spring , Suspension Systems Rubber Air Spring

Contitech Rubber Air Spring FD200-25 Cross Firestone W013586951 Suspension Systems

Air Spring Information

Cover Plate
Top Cover Plate Diameter: 161 mm
Screw Center Distance of Top Cover Plate: 89 mm
Bottom Cover Plate Diameter: 161 mm
Screw Center Distance of Bottom Cover Plate: 89 mm

Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 2×M8
Bottom Cover Plate Screw(Nut) Tooth: 2×M8

Gas Hole/Air Inlet/Air Fitting
Gas Hole: G 1/4

Rubber Bellow
Rubber Bellow Dia: 260 mm
Min. Height: 77 mm
Max. Height: 325 mm
Total Storke: 248 mm

Alternative Items

Goodyear Trimmed: 2B9253
Conti Tech: FD200-25427 / FD 200-25 427
FIRE STONE Air Spring W01-358-6951/ 20-2
Goodyear 2B9-253
Goodyear Flexmember: 578-92-3-206 / 578923206 / 578 92 3 206
Triangle Spring: 4427 / 6332
Firestone: 6945
Contitech: 64550
Batco: 10-96945
UCF / Impex: AB-2B9-253
T.W. Distribution: AB6945
Dallas Spring: AS6945
Midland / Haldex: CS209253
Euclid/Meritor Aftermarket: E-FS6945
Euclid/Meritor Aftermarket: FS6945
Leland: SC2125
Watson&Chalin : AS0119F / AS01451G

Air Spring Characters

2B6951 air springs provide users with an unparalleled suspension experience with their unique features:

Comfort: Provides excellent ride comfort and effectively absorbs road vibrations
Height adjustment: Allows users to adjust the vehicle height as needed to adapt to different driving conditions
Load adaptability: Automatically adjusts to different loads to maintain vehicle stability
Durability: Made of high-quality materials to ensure long-term durability and reliability

FAQ

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.

Q: How long does it take to get product after placing the order?
A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.

Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.

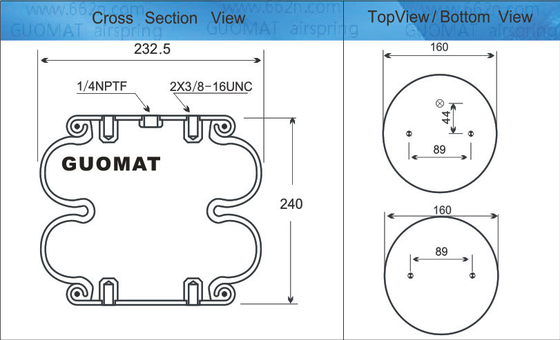

The Drawing And Data of GUOMAT 2B6951 Air Spring

Contitech Rubber Air Spring FD200-25 Cross Firestone W013586951 Suspension Systems 0
