W01-358-6902 Convoluted Type Air Suspension Spring Bags For Hendrickson S2630

W01-358-6902,Convoluted Type Air Suspension Spring Bags For Hendrickson S2630

OEM NO.

Firestone: W01-358-6902,W013586902,W01 358 6902

Contitech: FD 200-19 310

Goodyear :2B9-201

Taurus:KF218-6902

Manufacturer No.

Granning:4848

Hendrickson : S2630

R&S Truck: 1027505

Ridewell :1003586902C

Suspensions: 2000-42

Watson&Chalin: AS-0002

American Carrier

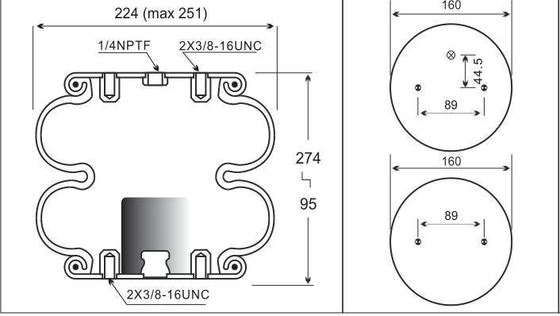

W01-358-6902 Firestone Double Convoluted Air Spring Data

Top Cover Plate Diameter:160mm

Bottom Cover Plate Diameter:160mm

Gas Hole / Air inlet:1/4NPTF

Rubber Bellows Natural Diameter:224mm

Rubber Bellows MAX Diameter:251mm

The Working Stroke:MAX 274 mm to MIN 95 mm

Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC

Screw Center Distance of Top Cover Plate:89mm

Screw Center Distance of Bottom Cover Plate:89mm

Screw And Gas Hole Distance of Top Cover Plate:44.5mm

Firestone Bellow Number 20

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

Package:Strong Brown Carton Box Or As Customers Need

Shiping:1.By Sea, By Air, By DHL Fedex

           2.Delivery time is 2-8 working days.
