W01-358-6905 American Truck Suspension Air Spring Contitech For Hendrickson

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6905

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD69.9-79.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Spring Type:	Rubber Air Spring	Car Make:	Hendrickson
Condition:	Brand-New	Function:	Reduce Shock
Quality:	100% Tested	Warranty:	1 Year
Type:	Gas-Filled	Goodyear:	2B9-206
Highlight:	American Truck Suspension Air Spring , W01-358-6905 Suspension Air Spring

W01-358-6905 American Truck Suspension Air Spring Contitech For Hendrickson

Product Information

Air bag is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities.

As the air pressure increases,the air spring can support more load while the spring rate increases.The larger the air spring,the greater the maximum loat it can support.

Product Name	Air Suspension Kit
Working Temperature	-40ºC bis +70ºC
Refer Numbers	Firestone:W01-358-6905
	Contitech:FD200-19 315
	Goodyear:2B9-206
	Taurus:KF218-6905
	Hendrickson:S3518/S5270
	Ridewell:1003586905C
	EZ Ride:8030120
	Watson&Chalin:AS-0020
Failure Testing	≥3 millions

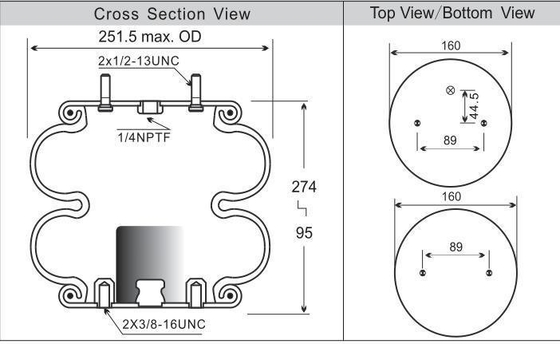

Technical data	Top Cover Plate Diameter:160mm
	Bottom Cover Plate Diameter:160mm
	Gas Hole / Air inlet:1/4NPTF
	Rubber Bellows MAX Diameter:251.5mm
	The Working Stroke:MAX 274 mm to MIN 95 mm
	Top Cover Plate Screw (Nut) Tooth:2X1/2-13UNC
	Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
	Screw Center Distance of Top Cover Plate:89mm
	Screw Center Distance of Bottom Cover Plate:89mm
	Screw And Gas Hole Distance of Top Cover Plate:44.5mm
Notice	These air suspension bags are aftermarket ones.They will replace the original air spring bags. --Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts. --Instruction isn't included.Professional installation is recommended. --Contact us please for whatever we can help

Features
* Features with heavy duty double convoluted crimped design which allows safe and comfortable load capacity up to 2500 pounds.
* Built to strict quality control standards.
* Designed for Comfort Suspension.
* Bring better handling and ride comfort.

More Recommend Products

W01-095-0021 W01-358-7598 W01-358-9079 W01-681-7368 W01-095-0063 W01-358-7667 W01-358-9082
W01-681-9091 W01-095-0087 W01-358-7725 W01-358-9083 W01-681-9098
W01-095-0118 W01-358-7731 W01-358-9084 W01-681-9242 W01-095-0189 W01-358-7781 W01-358-9089 W01-968-6286 W01-095-0190 W01-358-7788 W01-358-9092 W01-F79-7349
W01-095-0191 W01-358-7795 W01-358-9093 W01-M58-0736 W01-095-0195 W01-358-7808 W01-358-9096 W01-M58-0749 W01-095-0197 W01-358-7892 W01-358-9101 W01-M58-0756
W01-095-0198 W01-358-7897 W01-358-9104 W01-M58-0775 W01-095-0204 W01-358-7994 W01-358-9105 W01-M58-0776 W01-095-0205

Advantages

1.Excellent materials

2.Effective shock

3.In situ installation

4.Comfortable and stable

5.Long life

6.Slove the abnormal noise

W01-358-6905 American Truck Suspension Air Spring Contitech for Hendrickson
