FD 200-19 362 Contitech Air Rubber Bellow 2B9-210 Goodyear Air Ride Spring Bags

FD 200-19 362 Contitech Air Rubber Bellow 2B9-210 Goodyear Air Ride Spring Bags

  • FD 200-19 362 Contitech Air Rubber Bellow 2B9-210 Goodyear Air Ride Spring Bags
  • FD 200-19 362 Contitech Air Rubber Bellow 2B9-210 Goodyear Air Ride Spring Bags
  • FD 200-19 362 Contitech Air Rubber Bellow 2B9-210 Goodyear Air Ride Spring Bags
  • FD 200-19 362 Contitech Air Rubber Bellow 2B9-210 Goodyear Air Ride Spring Bags
  • FD 200-19 362 Contitech Air Rubber Bellow 2B9-210 Goodyear Air Ride Spring Bags
FD 200-19 362 Contitech Air Rubber Bellow 2B9-210 Goodyear Air Ride Spring Bags
Product Details:
Place of Origin: Guangzhou China
Brand Name: GUOMAT
Certification: ISO/TS16949, ISO9001
Model Number: 2B6908
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD59.9-69.9/PC
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 3-7 Working Days
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Contact Now
Detailed Product Description
Model Name: Convoluted Air Springs Sample: Available
Quality: 100% Tested Warranty: 1 Year
Material: Rubber And Steel Firestone: W01-358-6908
Convolutions: 2 Contitech: FD 200-19 362
Highlight:

Contitech Air Rubber Bellow

,

FD 200-19 362 Contitech Air Rubber Bellow

,

2B9-210 Goodyear Air Ride Spring Bags

FD 200-19 362 Contitech Air Rubber Bellow 2B9-210 Goodyear Air Ride Spring Bags



Product Description



Refer No.

Contitech FD 200-19 362/161294
Firestone W01-358-6908
Firestone Style 20
Goodyear 2B9-210/578923206
Watson&Chalin AS-0035
Triangle 6325/4362
Ridewell 1003586908C
FleePride AS6908
Taurus 6325
Loadguard SC2766
TRP AS69080
Automann SP2B12R-6908
Warren 8030120

Part Number 2B 6908
OEM Number FD 200-19 362
Working temperature -40°C bis +70°C
Failure testing ≥3 millions

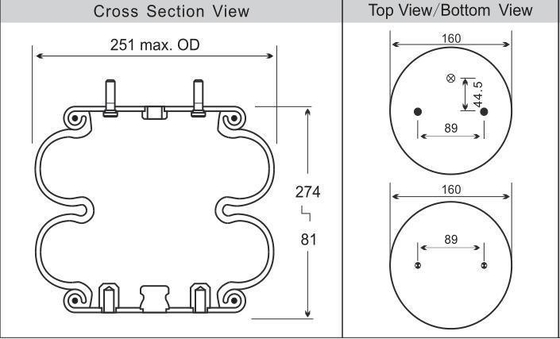

Top Cover Plate Diameter 160mm
Bottom Cover Plate Diameter 160mm
Gas Hole / Air inlet 1/4NPTF
Rubber Bellows MAX Diameter 251mm
The Working Stroke MAX 274 mm to MIN 81 mm
Screw Center Distance of Top Cover Plate 89mm
Screw Center Distance of Bottom Cover Plate 89mm
Screw and Air inlet Distance of Top Cover Plate 44.5mm


FD 200-19 362 Contitech Air Spring Technical Data

Plate Diameter: Ø6.31

Stud: 2X1/2-13UNC

Air Fitting: 1/4-18NPTF

Distance Between Studs: 3.50

Distance Between Stud and Air Hole: 1.75

Stud on Bottom Plate: 2X3/8-16 UNC

Max.Height: 10.40

Min.Height: 3.00

Stud Height: 1.60

The Rubber Bellows Max.Diameter: Ø9.80

Weight: 6.5lb

Style: Double Bellows

1/2-13UNC: max.35 lbf ft

1/4-18NPTF: max.22 lbf ft

3/8-16UNC: max.20 lbf ft



Air springs offer significant performance advantages:

  • High comfort and can be installed in tight spaces
  • Lightweight design improves fuel economy and payload
  • Stability over an extended operating temperature range



FD 200-19 362 Contitech Air Rubber Bellow 2B9-210 Goodyear Air Ride Spring Bags 0FD 200-19 362 Contitech Air Rubber Bellow 2B9-210 Goodyear Air Ride Spring Bags 1FD 200-19 362 Contitech Air Rubber Bellow 2B9-210 Goodyear Air Ride Spring Bags 2FD 200-19 362 Contitech Air Rubber Bellow 2B9-210 Goodyear Air Ride Spring Bags 3


Tag:

air helper springs,

air suspension parts,

convoluted air spring
