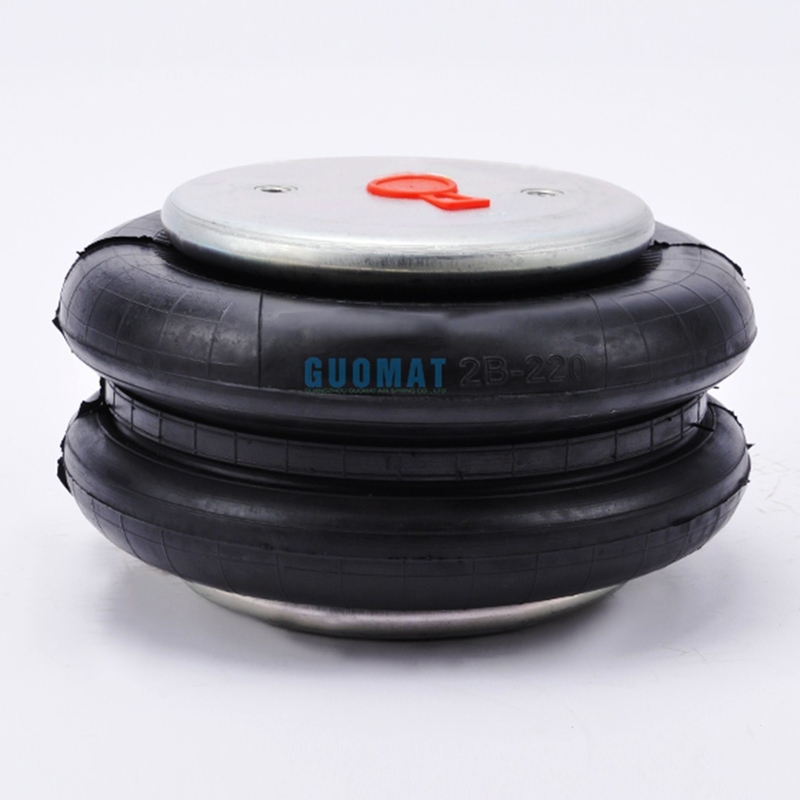

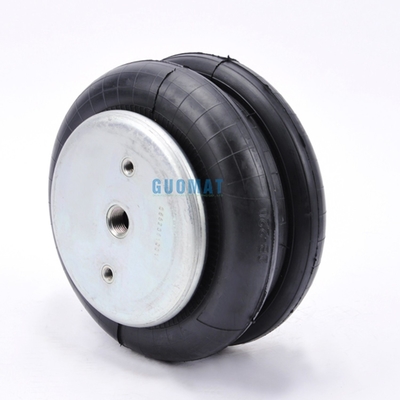

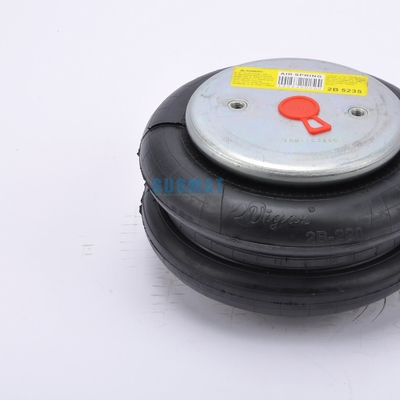

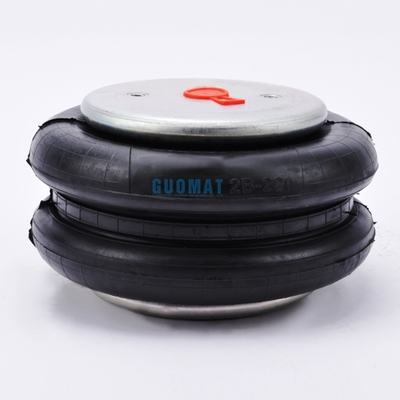

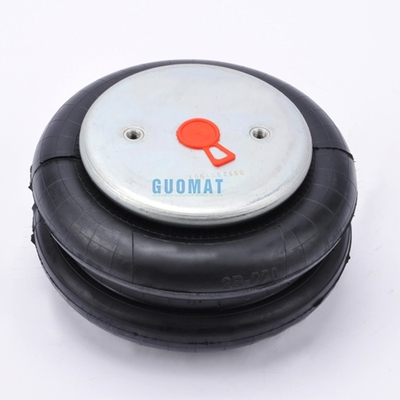

Double Convoluted Rubber Industrial Air Spring Bellow No 2B200 Air Bag

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2b 5235

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Name:	Double Convoluted Air Spring	Condition:	Brand-New
Sample:	Available	Function:	Reduce Shock
Quality:	100% Tested	Natural Height:	210mm
MAX.Diameter:	251mm	Convolution:	2
Highlight:	Double Convoluted Rubber Industrial Air Spring , 2B200 Industrial Air Spring

Double Convoluted Rubber Industrial Air Spring Bellow No 2B200 Air Bag For Industrial

Product details

100% quality assurance tested, more responsive, less expensive, easier to install.
This Air Bag will give you the performance you crave. With more lift, a softer, smoother ride, and the lowest price in the
industry!

Top Cover Plate Dia.:160mm

Bottom Cover Plate Dia:160mm

Screw Center Distance Of Top Cover Plate:85mm

Screw Center Distance Of Bottom Cover Plate:85mm

Gas Hole Type:ZG1/2

Screw(Nut)Tooth Of Top Cover Plate :2 X M10X1.25

Screw(Nut)Tooth Of Bottom Cover Plate :M14X2.0

Rubber Bellows Dia.:224mm(MAX.215)

The Stroke:210mm

Air springs can reduce your costs and increase your profits. Last at least twice, and as much as four times longer than steel springs Require little or no maintenance Increase life of tires and brake linings Substantially reduce breakage and maintenance of other vehicle components, including electrical, air conditioning, cab mounts, exhaust, chassis, seals, wiring and drive train Let you haul anything; eliminate expensive deadheading runs Reduce driver discomfort and dangerous fatigue; improve driver safety, productivity and loyalty Allow perfect load equalization between axles; let you run at the maximum legal limit Provide smoother ride for payload, reducing costly insurance claims and the expense of overpackaging Pay you back at trade-in time; trucks and trailers with air suspensions are worth more 100% of all air spring assemblies are pressure tested before they leave Firestones factory. Fire-stone is the original designer of composite pistons. Fire-stone rubber compounds have superior 'flex' range through temperatures of -65 F to 135 F. Air Spring Components Inside the World's No. 1 Air Spring: Airide springs are available in single, double and triple convolution types plus reversible sleeve models for virtually every conceivable heavy-duty vehicle suspension application.

1)	Stud - Manufactured as a permanent part of the bead plate assembly for maximum strength and durability. Used to attach the spring to the vehicle's suspension.
2)	Combo Stud - Serves the dual purpose of mounting the spring to the suspension and providing an entrance for air.
3)	Blind Nut - Also a permanent part of the bead plate assembly. Provides an alternative mounting system to the stud.
4)	Air Fitting - Usually 1/4 N.P.T. Provides an air entrance to the bellows.
5)	Bead Plate - Crimped onto the bellows at the factory for a more durable design.
