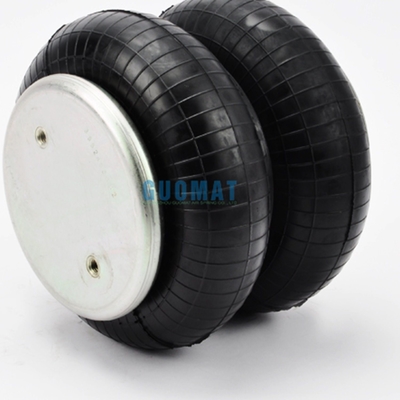

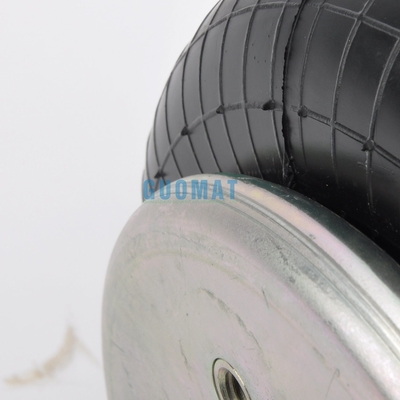

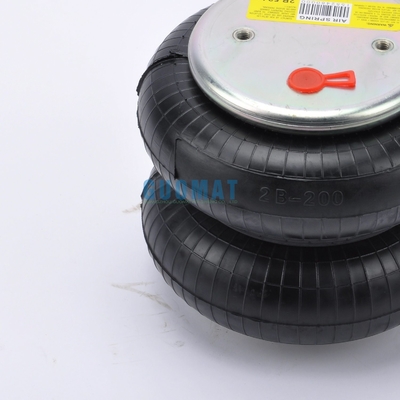

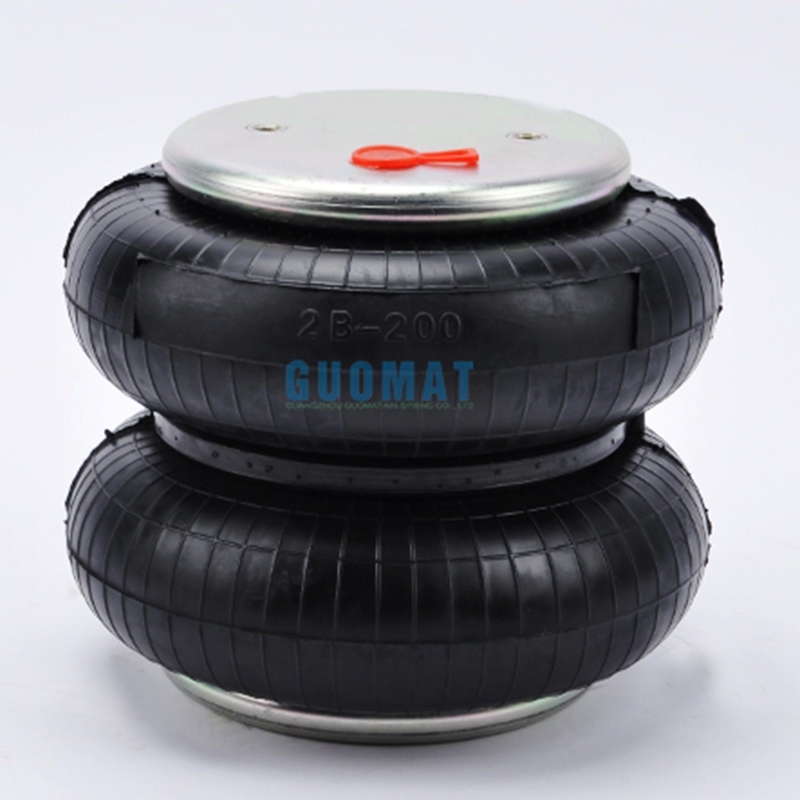

Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B5248

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6910	Sample:	Available
Function:	Reduce Shock	Quality:	100% Tested
Gas Hole:	1/4NPTF	Firestone:	W01-358-6910
Goodyear:	2B9-200/202/216	Contitech:	FD 200-19 320
Highlight:	Vehicle Rubber Air Spring , W01-358-6910 Rubber Air Spring

Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910

Product details

Cross references
Firestone	W01-358-6910	Contitech	FD200-19 320
Goodyear	2B9-200	Goodyear	578423202
Triangle	6325/4320	Taurus	KF218-6910

Original parts
Brake&Wheel	M3501	Dina	A812719/AZ812719
Dayton	3546910	Leland	Sc2011
Navistar	554783C1	Hendrickson	S8768/458433
Ridewell	1003586910C	SAF Holland	57006910
Trailers De	133128	Tuthill	1371
Watson&Chalin	AS-0001	Watson&Chalin	AS-0156G

Item	Value
OEM.NO.	W01-358-6910
Type	Air Spring
Warranty	12 Months
Color	Black
Place of Origin	Guangzhou,China
Certification	ISO/TS16949:2009
Material	Rubber+Steel
Packing	Neutral Packing
MOQ	1 Pcs
Quality	High-Quality
Position	Auto/Truck parts/Industrial equipment
Application	Auto Suspension Systems

2B200 Durable Fire-stone Suspension Spring Technical Data

Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2X3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth :2X3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

Screw and Gas Hole Distance of Top Cover Plate:44.5mm

Cover Plate

Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm

Rubber Bellows
Rubber Bellows MAX Diameter: MAX.251mm

Rubber Bellows Natural Diameter :224mm
The Working Stroke : MAX 260 mm to MIN 75 mm
Maximum Height : 260 mm
Minimum Height :75 mmx
Compression Height :185 mm

We also have many sizes of air springs, if you need them, please contact me.

Contitech	Goodyear	Fire-stone	Phoenix
928N	8042	W01-095-0228	2E23A
943N	9001	W01-095-0189
973N	8012	W01-095-0198	1F21A
945N	9014	W01-095-0063	1E21C
975N		W01-095-0437	1E10
		W01-095-0294
		W01-358-9391
4913NP02	1R14-753	W01-095-0500	1D28H-16
	1R14-869
4159NP06		W01-M58-0736
810NTB	1R14-713	W01-M58-0749	1DK28A4
4022NP02	1R11-709	W01-M58-0756
4022NP02	1R11-709	W01-M58-0756
836MB		W01-M58-0775	1DF25-4
836MB	1R12-700	W01-M58-0776	1DF25-1
836M2K1	1R12-711	W01-M58-8721	1DF25-13
887M	1R11-796	W01-M58-0780
889MK2		W01-M58-0781
		W01-M58-0918
4004NP02		W01-M58-0919
4004NP02		W01-M58-0919


6603NP02
4183NP23
4883N1P07
6609NP01
