Firestone Rubber Air Bag W01-M58-7679 Gart Air Spring T291/2B 291.2.265
Product Information
| Product Name |
Air Suspension Kit |
| Working Temperature |
-40ºC bis +70ºC |
| Failure Testing |
≥3 millions |
|
Technical data
|
Top Cover Plate Diameter:160mm(6.31 inches) |
| Bottom Cover Plate Diameter:160mm(6.31 inches) |
| Gas Hole / Air inlet:1/4NPT |
| Rubber Bellows MAX Diameter:262mm |
| The Working Stroke:MAX325 mm to MIN 95 mm |
| Top Cover Plate Screw (Nut) Tooth:2XM10X1.5 |
| Bottom Cover Plate Screw (Nut) Tooth:2XM10X1.5 |
| Screw Center Distance of Top Cover Plate:89mm |
| Screw Center Distance of Bottom Cover Plate:89mm |
| Screw And Gas Hole Distance of Top Cover Plate:44mm |
|
Notice
|
These air suspension bags are aftermarket ones.They will replace the original air spring bags.
-Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts.
-Instruction isn't included.Professional installation is recommended.
-Contact us please for whatever we can help
|
OEM Number
| Manufacturer |
Original-Part No. |
| Volvo |
20541504 / 20 541 504 |
| Volvo |
22573233 / 22 573 233 |
| Renault |
20541501 |
Contitech Cross Number: FD 200-25
Contitech Cross Number: FD200-25
Contitech Cross Number: FD 200-25 M24 M10
Contitech Cross Number: FD200-25 M24 M10
Goodyear Cross Number: 2B9-703
Goodyear Cross Number: 2B 9-703
Goodyear Cross Number: 2B9-741
Goodyear Cross Number: 2B 9-741
Goodyear Cross Number: 2B9-605
Goodyear Cross Number: 2B 9-605
Goodyear Cross Number: 2B9-743
Goodyear Cross Number: 2B 9-743
Goodyear Cross Number: 2B9-269
Goodyear Cross Number: 2B 9-269
Goodyear Flex Member No.: 578-92-3-206
Goodyear Flex Member No.: 578 92 3 206
Goodyear Flex Member No.: 578923206
Sabo Cross Number: SA520348
Sabo Cross Number: SA 520348
Firestone Cross Number: W01-M58-7679
Firestone Cross Number: W01 M58 7679
Firestone Cross Number: W01M587679
Firestone Type Number: 20C2
Dunlop Cross Number: S09280 / S0 9280
Gart Cross Number: T291/2B
Gart Cross Number: 291.2.265
GUOMAT 2B7679 Packing and Shipping
| Net weight |
4.07KG |
| Gross Wright |
4.45KG |
| Packing Size |
24x24x24 (cm) |
Shipment: Ship by Fedex,UPS,DHL,EMS......
Ship by air, sea
Port of shipment: NINGBO, SHANGHAI, TIANJING, GUANGZHOU, SHENZHEN
Applications
Various applications for the vehicle industry such
---as steering damping, engine vibration damping, belt
---tensioning damping for engines and on driver seats in commercial vehicles, etc.
On household products such as washing machines
Special shock absorbers for bicycles
On commercial lawn movers
In the medical equipment industry ie. on wheelchairs

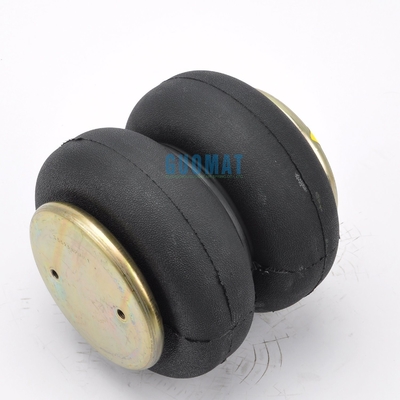

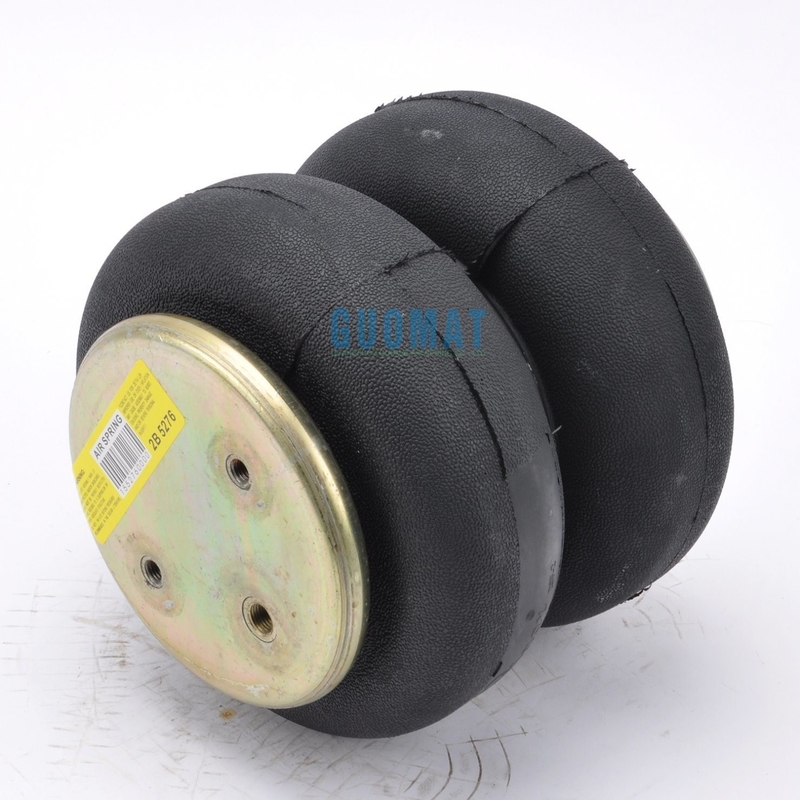

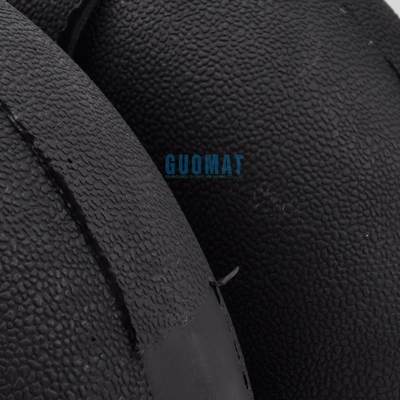

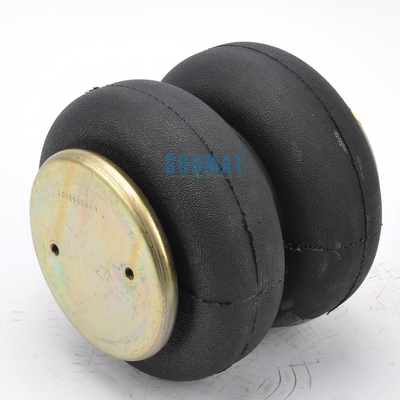

Image For Goodyear Double Covoluted Air Spring
