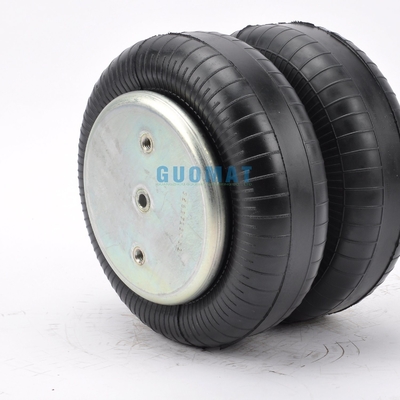

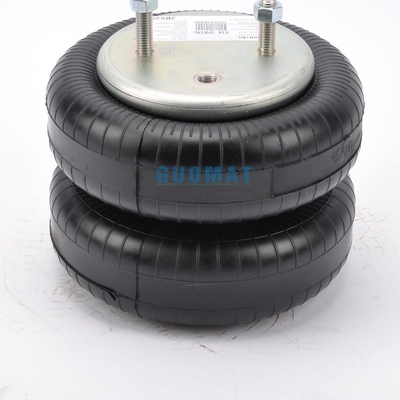

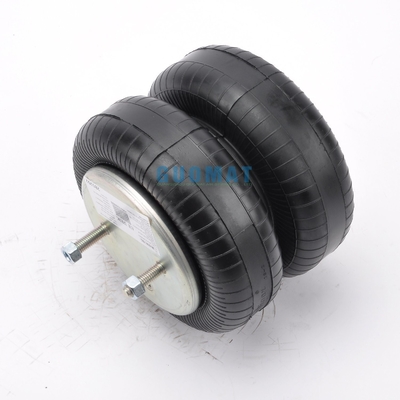

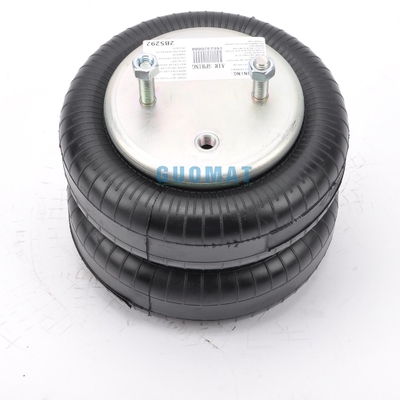

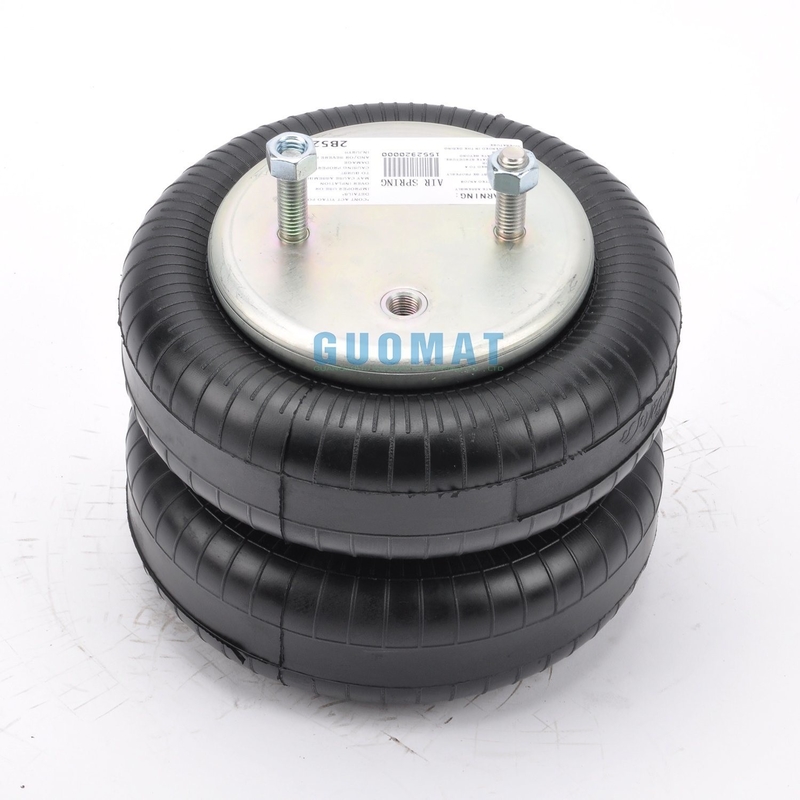

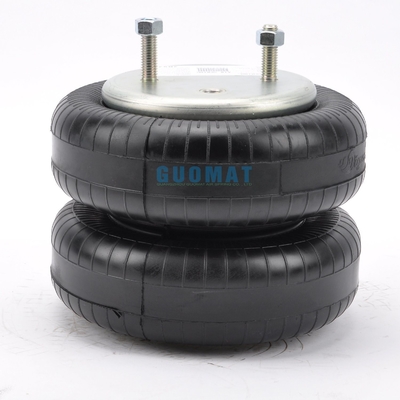

Suspension Spring Assembly Firestone W01-358-6945 Convoluted Indurtial Air Spring

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6945

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Service:	Sample And OEM	Gas Hole:	1/4NPTF
Screw Tooth:	2X3/8-16UNC	Spring Material:	Rubber
Condition:	Brand-New	Goodyear:	2B9-253
Firestone:	W01-358-6945
Highlight:	W01-358-6945 Convoluted Indurtial Air Spring , Convoluted Indurtial Air Spring

Suspension Spring Assembly Firestone W01-358-6945 Convoluted Indurtial Air Spring

Cross OEM Original Equipment Manufacturer

Air Spring Supplier: Firestone

Reference: 20-2

Competitor/Supplier Number: W01-358-6945 / W01 358 6945 / W013586945

Air Spring Supplier: Contitech
Reference: 64550
Competitor/Supplier Number: FD200-25 427 / FD 200-25 427 / FD200-25427

Air Spring Supplier: Goodyear
Reference: 578923206 / 578 92 3 206 / 578-92-3-206
Competitor/Supplier Number: 2B9-253 / 2B 9-253 / 2B9 253

Air Spring Supplier: Triangle
Reference: 6332
Competitor/Supplier Number: 4427

Ridewell Refer Numbers: 1003586945C

Leland Refer Numbers: Sc2125

Loadguard Refer Numbers: SC2125

TRP Refer Numbers: AS69450

Automann Refer Numbers: SP2B12RA-6945

Watson&Chalin Refer Numbers: AS0119F / AS-0119-F

Watson&Chalin Refer Numbers: AS01451G / AS-0145-1G

2B6945 GUOMAT Air Spring Technical Data

Top Cover Plate Diameter:160mm
Bottom Cover Plate Diameter:160mm
Air Inlet:1/4 NPTF
Bolt Center Distance Of Top Cover Plate:89mm
Threaded Hole Center Distance Of Bottom Cover Plate:89mm
Bolt And Gas Hole Diameter Of Top Cover Plate:44mm
Rubber Bellow MAX Diameter:232.5mm
The Working Stroke:235mm

Our Services
1. Welcome OEM manufacturing: products, packaging
2. Sample order is available. If you place a large order after receiving the sample, we will refund the sample fee as a discount.
3. We will reply your inquiry within 24 hours.
4. After shipment, we will track the products for you every two days until you receive the products. When you receive the goods, please test them and give me feedback. If you have any questions about the problem, please contact us and we will provide you with a solution.

Advantages of GUOMAT Air Springs

1	Excellent material
2	Effective shock absorption
3	Easy installation
4	Comfortable and stable
5	Long service life
6	Solve abnormal noise

20-2 Firestone Industrial Air Spring

	Description	Assembly Order No.
Style 20-2	Blind nuts,1/4 NPT	W01-358-6951
Style 20-2	Blind nuts,1/4 NPT,rubber bumper	W01-358-6947
Two Ply Bellows	Blind nuts,3/4 NPT	W01-358-6952
	Countersunk steel bead rings,1 3/4 bolts,nuts,washers	W01-358-7789
	Rubber bellows only	W01-358-0305
