W01-358-7545 Firestone Air Suspension Double Convoluted Air Rubber Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2T7545

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model W01-358-7545NO.:	2T7545	Structure:	Double Convoluted
Sample:	Available	Function:	Reduce Shock
Trademark:	GUOMAT	Type:	Gas-Filled
Firestone:	W01-358-7545	Air Inlet:	1/4 -18 NPT
Highlight:	Double Convoluted Air Rubber Bellow , W01-358-7545 Air Rubber Bellow

W01-358-7545 Firestone Air Suspension Double Convoluted Air Rubber Bellow

Product Specification

Cover Plate

Top Cover Plate Diameter: 9 in.
Screw Center Distance of Top Cover Plate: 6.2 in.
Bottom Cover Plate Diameter: 9 in.
Screw Center Distance of Bottom Cover Plate: 6.2 in.

Nut/Blind Nut

Top Cover Plate Screw(Nut) Tooth: 3/8-16 UNC
Bottom Cover Plate Screw(Nut) Tooth: 3/8-16 UNC

Gas Hole/Air Inlet/Air Fitting

Air Hole: 1/4 NPT

Rubber Bellow

Rubber Bellow Dia: 12.8 in.
Minimum Height: 3.5 in.
Maximum Height: 14.5 in.

Cross Reference

Firestone	W01-358-7545, W01 358 7545, W013587545 WO1-358-7545, WO1 358 7545, WO13587545
Contitech	FD 331-26 514, FD 331 26 514, FD33126514, FD331-26 514
Goodyear	578923315, 2B12-345, 2B12 345, 2B12345
AUX.	001796
WATSON & CHALIN	AS-0087-1F, AS 0087 1F, AS00871F

Product Characteristics

1. Low installation height
In comparison to conventional pneumatic cylinders, ContiTech air actuators contain no piston rod, making it possible to reduce
the design height considerably.This allows compact constructions to be made.

2. Angular movement
Depending on the type, ContiTech air actuators can be used for tilt angles up to 30°. This enables the designer to simplify the articulated construction.

3. Low purchase price
The purchasing costs are considerably less than for conventional pneumatic cylinders.And thanks to the long service life and freedom from maintenance,running costs are reduced as well.

FAQ

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

Q: How do you make our business a long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure our customers benefit;

2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.

Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.

Q: How long does it take to get product after placing the order?
A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.

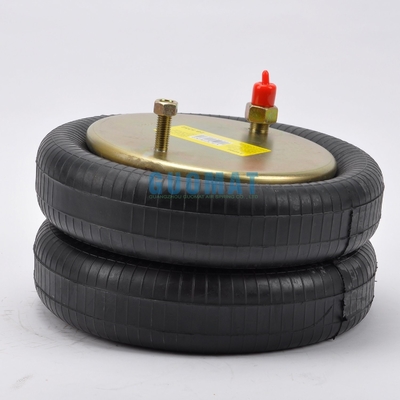

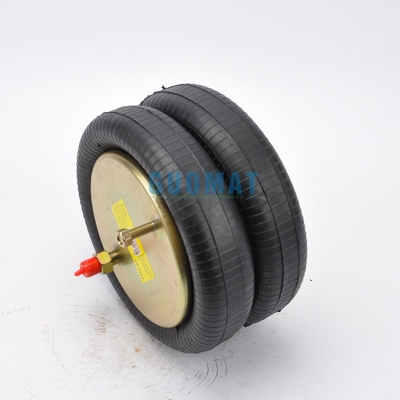

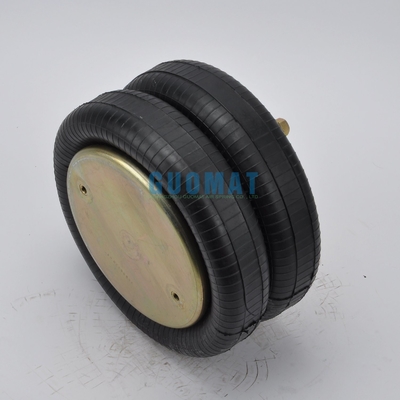

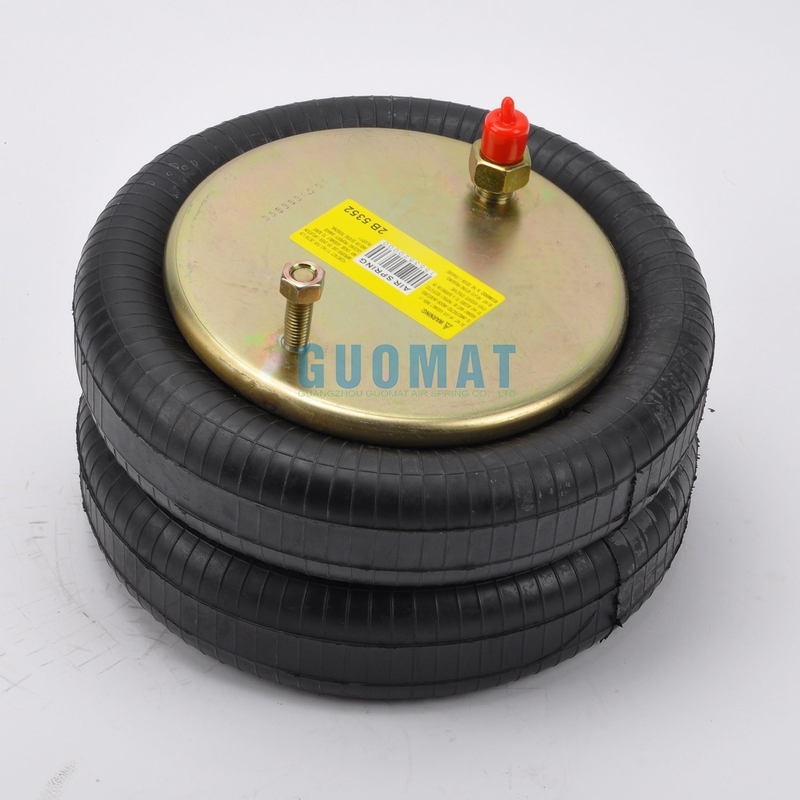

The Detailed Pictures

W01-358-7545 / Fd331-26514/ 2b12-345 Double Convoluted Air Spring for Hendrickson Aux. 001796
