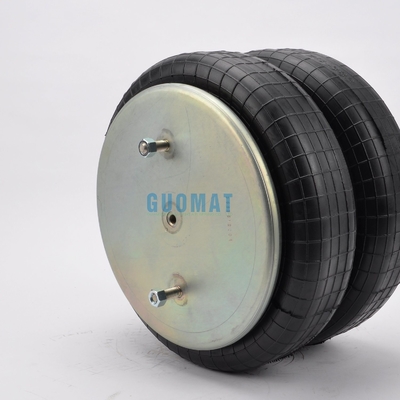

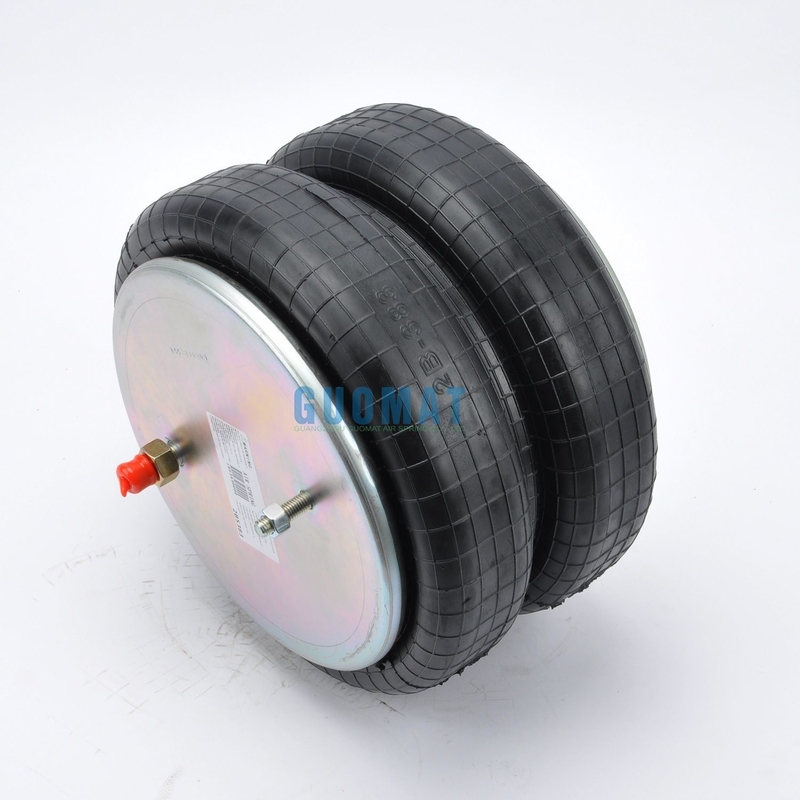

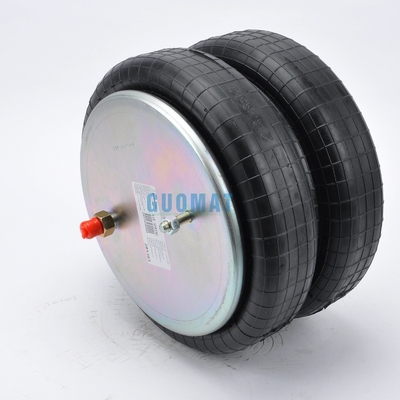

Double Convoluted Air Spring W01-358-7557 Suspension System Contitech FD530-35530

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B7557

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Condition:	Brand-New	Quality:	100% Tested
Transport Package:	Cartons	HS Code:	8708809000
Customization:	Available \| Customized Request	Goodyear:	2B14-383
Application:	Industrial Machine	Color:	Black
Highlight:	Contitech FD530-35530 Air Spring , Double Convoluted Air Spring , Suspension System Air Spring

Double Convoluted Air Spring W01-358-7557 Suspension System Contitech FD530-35530

Description
Air spring is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities.
As the air pressure increases, the air spring can support more load while the spring rate increases.The larger the air spring, the greater the maximum load it can support.

To be sure you choose the correct replacement air bag, we offer tips on identifying of an air spring.ou can use them as a guide, but feel free to contact us to help you determine your spring.

Feature

Require little to no maintenance
Pressure tested for quality assurance
Increase towing and hauling capabilities
Replace worn out oem air bags
Increase life of other suspension components

Warranty Infomattion

One Year-warranty

Cross Reference

Airspring Supplier:Fire-stone

Competitor/Supplier Number:W01-358-7557

Airspring Supplier:Contitech

Competitor/Supplier Number: FD 530-35 530

Airspring Supplier:Goodyear

Reference: 578923356

Competitor/Supplier Number: 2B14-383

Airspring Supplier:Triangle

Reference: 6412

Competitor/Supplier Number:4530

Airspring Supplier:Reyco

Competitor/Supplier Number:19983-1(21AR,74AR)

Airspring Supplier:Watson&Chalin

Competitor/Supplier Number:AS-0089

Airspring Supplier:Histeer

Competitor/Supplier Number:10316

Airspring Supplier:Twthill

Competitor/Supplier Number:1998301

Cross references are not a guarantee that a part will fit a specific application.

Please check all available information before relying on a cross reference to make a purchase.

Technical Data

Cover Plate	Top Cover Plate Diameter:289mm
Cover Plate	Bottom Cover Plate Diameter:289mm
Air Inlet	1/4 NPT
Blind Nut	Screw and Gas Hole Distance Of Top Cover Plate:158mm
	Screw Center Distance Of Bottom Cover Plate:158mm
	Screw Center Distance Of Top Cover Plate:M18X1.5
	Top Cover Plate Screw (Nut) Tooth:M12X1.75
	Bottom Cover Plate Screw (Nut) Tooth:2XM12X1.75
Rubber Bellow	Rubber Bellow MAX Diameter:353mm
	The Working Stroke:MAX 391mm to MIN 104mm
	Maximum Height:391mm
	Minimum Height:104mm
	Compression Height:287mm
