Universal Double Bellow Air Bag Shock Absorber W01-358-7781 for in Suspension System

Name: Universal Double Bellow Air Bag Shock Absorber W01-358-7781 for in Suspension System
Brand: GUANGZHOU GUOMAT AIR SPRING CO. , LTD
Price: 400.00 USD
Availability: InStock

Product Details:

Contact Now

Detailed Product Description

Model NO.:	W01-358-7781	Structure:	Double Convoluted
Brand:	Guomat/Neutral	Damping Force Direction:	Bidirectional
Condition:	Brand-New	Sample:	Available
Function:	Reduce Shock	Quality:	100% Tested
Transport Package:	Cartons	Trademark:	GUOMAT
Origin:	Guangzhou	HS Code:	8708809000
Supply Ability:	5000PCS/Month	After-sales Service:	12 Months
Part:	Air Spring	Position:	Front/Rear
Type:	Gas-Filled	Spring Type:	Air Spring
Spring Material:	Rubber	Samples:	US$ 69.9/Piece 1 Piece(Min.Order) \| Request Sampl
Customization:	Available \| Customized Request
Highlight:	W01-358-7781 Air Bag Shock Absorber , Suspension System Air Bag Shock Absorber

Universal Double Bellow Air Bag Fit Shock Absorber Ride Suspension kit W01-358-7781

Air Spring OEM Number

Fire-stone:W01-358-7781,W013587781,7781

Contitech:FD 530-35545,FD53035545,FD 530 355 45

Original Manufacturer

Ridewell:1003587781C

Air Spring Drawings And Parameter

Double Fire-stone Suspension Spring Technical Data
Nut/Blind Nut
Top Cover Plate Screw (Nut) Tooth	4X3/8 -13 UNC
Screw Distance of Top Cover Plate	157mm
Bottom Cover Plate Screw (Nut) Tooth	4X3/8-16UNC
Screw Center Distance of Bottom Cover Plate	159mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet	3/4NPT
Cover Plate
Top Cover Plate Diameter	289mm
Bottom Cover Plate Diameter	289mm
Rubber Bellow
Rubber Bellows MAX Diameter	406mm
The Working Stroke	MAX 391mm to MIN 104 mm
Maximum Height	391mm
Minimum Height	104mm
Compression Height	287mm

Our Advantage

The rubber is of high quality.
The plate is the steel,coated Zn,high capacity and anti-corrosion.
All air spring types can be used at a working temperature between -40°C and 70°
We also have our strict series quality control.
OEM Manufacturing welcome: Product
Sample order is available.
We will reply you for your inquiry in 24 hours.
After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

Common Applications for Air Spring

Various applications for the vehicle industry such as steering damping, engine vibration damping, belt tensioning damping for engines and on driver seats in commercial vehicles, etc.
On household products such as washing machines
Special shock absorbers for bicycles
On commercial lawn movers
In the medical equipment industry ie. on wheelchairs

Air Spring Delivery Time

Generally The Goods Will be send immediately by the Air/the Sea/the Express(DHL,UPS,FEDEX...)in 2-8 working days after receive your payment.And will keep you informed any news about your order process.

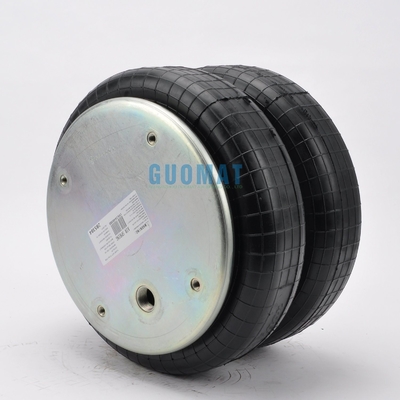

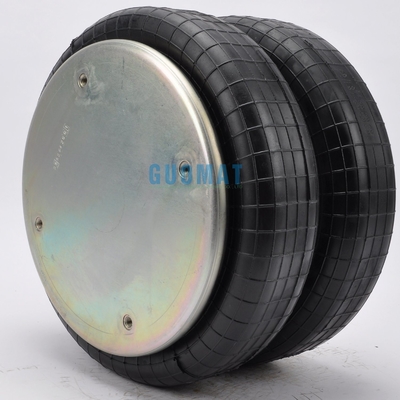

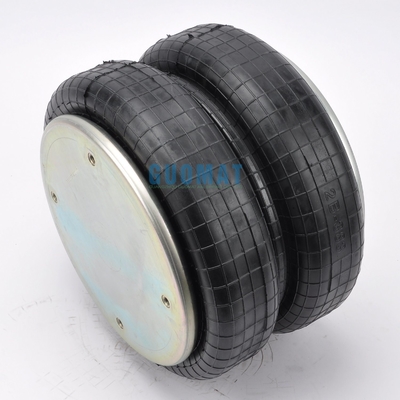

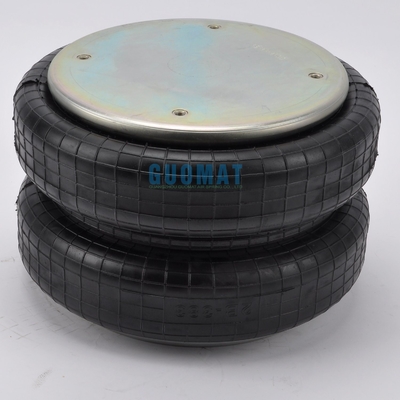

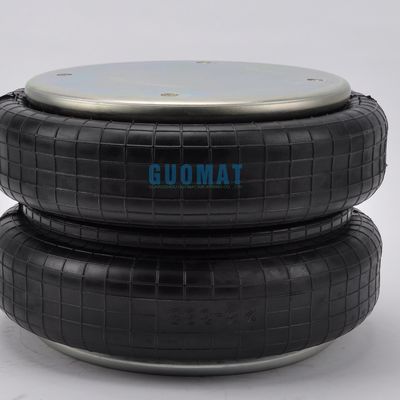

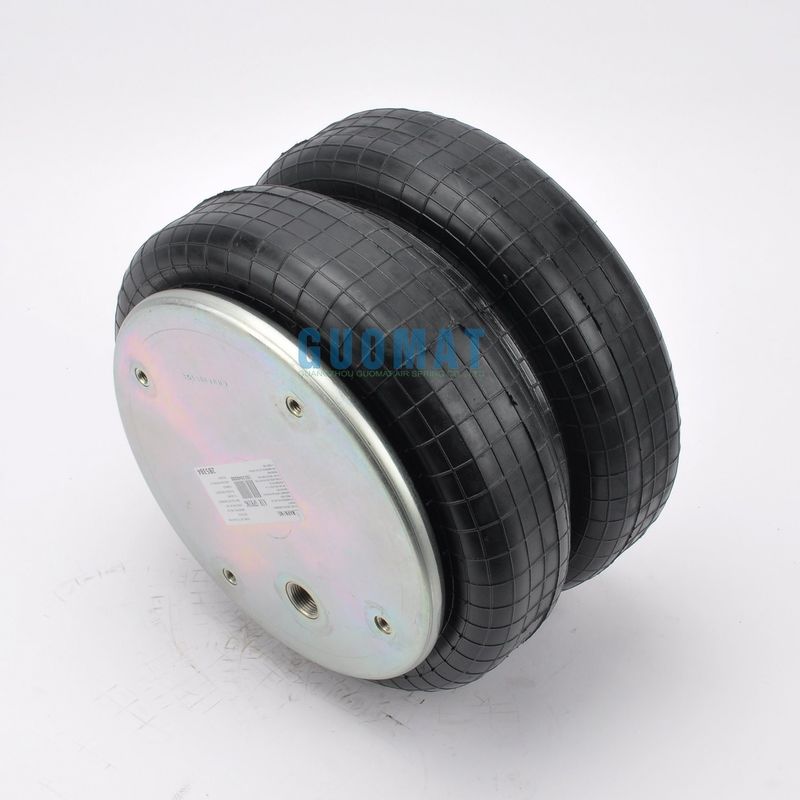

Air Spring Picture
