Dunlop Air Actuator SP253 Norgren M/31082 Air Spring Suspension for Presses

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B8×2T

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B8×2T	Brand:	GUOMAT
Contitech:	FD 138-18 DS	Bellows Type:	Double Convoluted
Maximum Diameter:	230 MM	Total Stroke:	225 MM
Parker:	9109011	Sample:	Available
Highlight:	Presses Air Actuator SP253 , Norgren Air Actuator SP253 , Dunlop Air Actuator SP253

Dunlop Air Actuator SP253 Norgren M/31082 Air Spring Suspension for Presses

Product Dimensions

Maximum Diameter: 230 mm

Space Reuquired: 240 mm

Minimum Height: 72 mm

Maximum Height: 225 mm

Total Stroke: 153 mm

Natural Height: 150 mm

Bellows Weight: 4 kg

2B8×2T Replaces These Air Bellows

Firestone

W01-R58-4055, W01 R58 4055, W01R584055

WO1-R58-4055, WO1 R58 4055, WO1R584055

Dunlop Pneuride

8''×2, 8'×2, 8×2

Dunlop Springride

SP1490, SP 1490, SP 14 90

Contitech

FD 138-18 DS, FD138-18 DS, FD13818 DS

Norgren

M/31082, M31082, M 31082

Parker

9109011

Storage Precautions of Air Springs

1. Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight
2. Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced
3. Air springs are best stored in a free state without any external force
4. Do not store in an environment with a temperature exceeding 50 degrees Celsius

Other Double Convoluted Flange Air Suspensions

GUOMAT NO.	Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
2 3/4''×2		2 3/4''×2	SP2904	FD 22-4 DI		9109009
2B4.5×2	W01R584051	4 1/2''×2	SP2441	FD 44-10 DI	PM/31042	9109401
2B4.5×2-E
2B6×2T(AI)	W01R584070	6''×(AI)	SP2917	FD 76-14 DI	PM/31062	9109001A
2B6×2T(Steel)	W01R584053	6''×2(Steel)	SP1482	FD 76-14 DS	M/31062	9109001
2B8×2T	W01R584055	8''×2	SP1490	FD 138-18 DS	M/31082	9109011
2B10×2T	W01R584058	10''×2	SP1538	FD 210-22 DS	M/31102	9109021
2B12×2T	W01R584061	12''×2	SP1541	FD 412-22 DS	M/31122	9109041
2B12''×2-E	W01R584039	12''×2 Extend	SP2782NB
2B14 1/2''×2T	W01R584064	14'' 1/2×2	SP1556	FD 614-26 DS	M/31142	9109061
2B16×2T	W01R584067	16''×2	SP1557	FD 816-30 DS	M/31162	9109171
2B21 1/2''×2T		21 1/2''×2	SP1408		M/31212	9109153
2B26''×2T		26''×2	SP2342		M/31262	9109159

Product Images

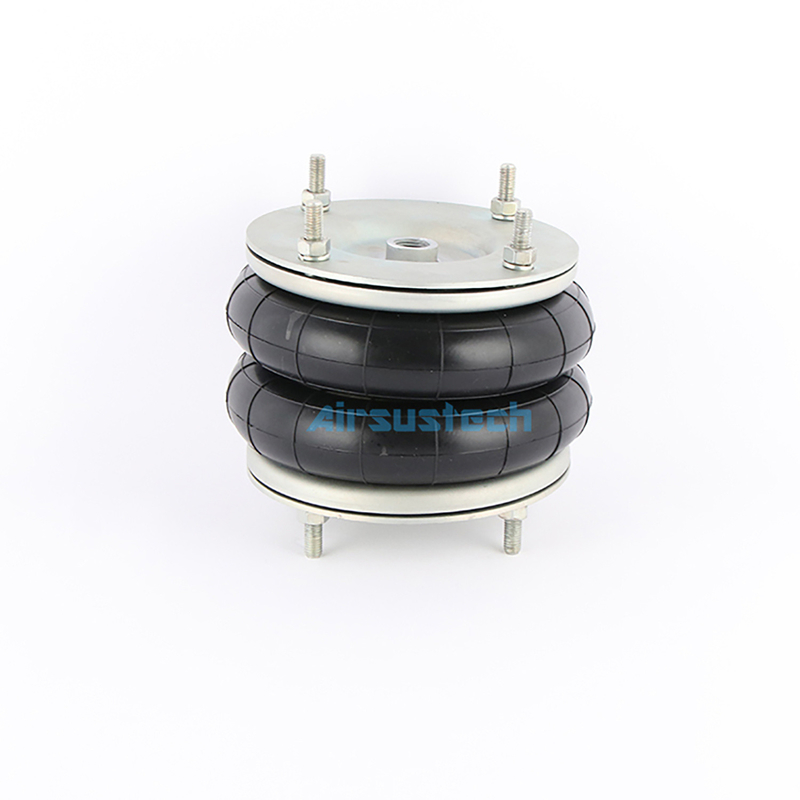

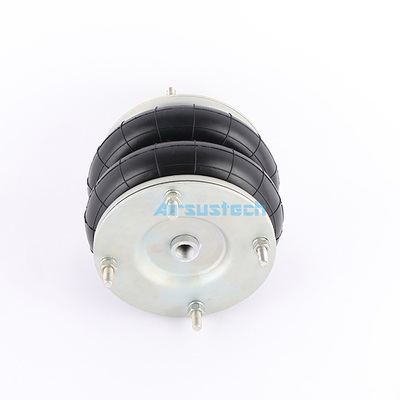

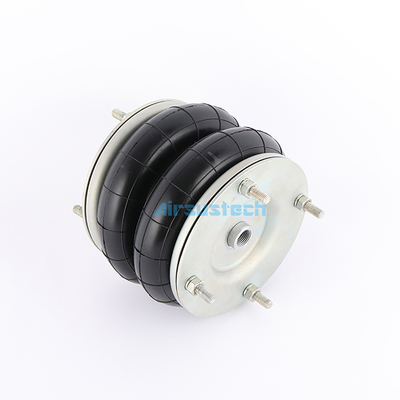

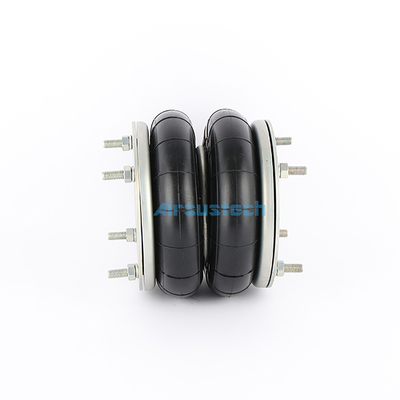

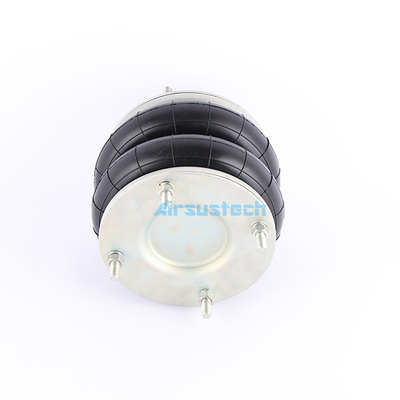

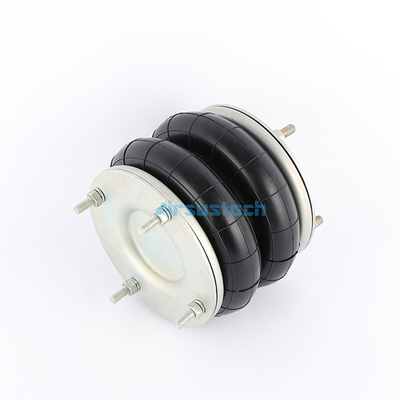

Dunlop Air Actuator SP253 Norgren M/31082 Air Spring Suspension for Presses 0
