Genuine Contitech FD 70-13 Air Springs For Convoluted Type Shock Absorber

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B7013

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Item No.:	FD 70-13	Condition:	100% Brand New
Gas Hole:	1/4 NPT	Screw Tooth:	2×3/8UNC
Brand:	GUOMAT	Place Of Origin:	Guangzhou
Type:	Gas-Filled	Structure:	Double Convoluted
Highlight:	Contitech FD 70-13 Air Springs , Genuine Contitech FD 70-13 Air Springs

Genuine Contitech FD 70-13 Air Springs For Convoluted Type Shock Absorber

Product Introduction

GUOMAT air springs come in single, double, or triple bellow designs and serve various roles in different suspensions and applications. You'll find Continental air springs in a range of trucks, trailers, and on industrial sites. These air springs stand out for their ability to execute linear or angular movements with a much lower profile than traditional air cylinders. They are incredibly adaptable and serve a variety of functions in machinery used for pressing, tensioning, rolling, conveying, lifting, and packaging. Additionally, as vibration dampers, they effectively minimize the detrimental impact of vibration.

Specification For FD 70-13

Compressed Height	2.83''
Max Expanded Height	7.87''
Max Diameter	6.5''
Max Inflation Pressure	120 psi
Max Stroke	5.04''
Air Inlet Type	Imperial
Air Inlet	1/4''
Min Temperature	-40℃
Max Temperature	+70℃
Bellows Type	Double Convoluted
Weight	3.31 lbs.

Double Convoluted Air Bellows Other OEM Number

FD 40-10 CI

FD 70-13 CI

FD 110-15 CI

FD 120-17 CI

FD 120-20 CI

FD 200-19 CI

FD 200-22 CI

FD 200-25 CI

FD 330-22 CI

FD 330-30 CI

FD 530-22 CI

FD 530-30 CI

FD 530-35 CI

FD 960-22 CI

FD 1330-25 CI

Product Features

Crimped Assembly: This robust construction method ensures the structural integrity and reliability of the air actuator, bolstering its ability to withstand operational demands over a prolonged period.
Convoluted Bellow Made with Natural Rubber: Crafted with high-quality natural rubber, the convoluted bellow ensures extraordinary dynamic performance. This feature offers exceptional versatility, making the actuator suitable for a broad spectrum of applications.
Exceptional Dynamic Capability: Designed for peak performance, this air actuator exhibits a very high dynamic capability. This allows for excellent responsiveness and adaptability under various operating conditions, further enhancing its effectiveness.
Excellent Universal Properties: With its premium construction and intelligent design, the air actuator exhibits outstanding universal properties. This allows it to adapt to diverse operational requirements and ensure consistent, high-quality performance.
Crimped Steel Zinc Plated Top and Bottom Plates: The air actuator is equipped with top and bottom plates crafted from crimped, zinc-plated steel. This results in enhanced durability and corrosion resistance, ensuring that the device can endure even the harshest of operating environments.

FAQ

1. Are you a Manufacture factory?
Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 12years experience from 2008 years.

2. What is your main products?
Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.

3. Is the sample available?
Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.

4. What is your warranty term?
Our company offer 1% free spare parts to FCL order.There is a 12months warranty for our export products has run out from the date of the shipment.If warranty ,our customer should pay for the replacement parts.

5. Can i use my own logo and design on products?
YES,OEM is welcomed.

6. I can not find out the items what i want from your website, can you offer the products i need?
YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.

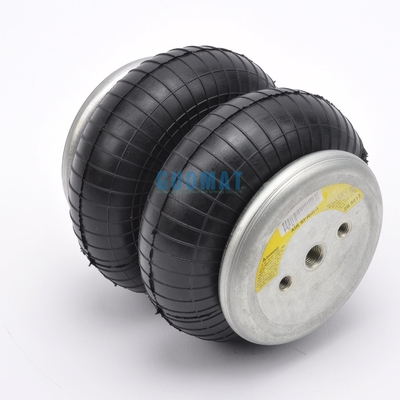

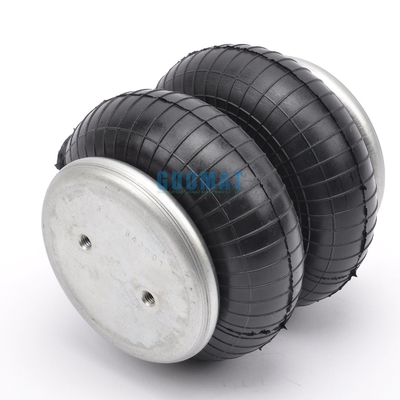

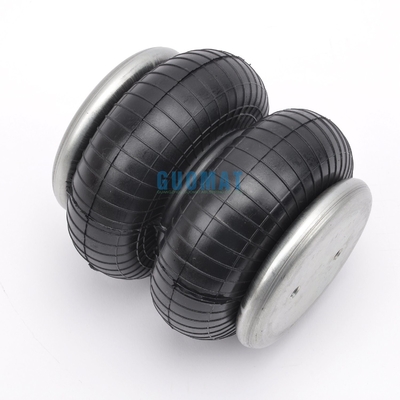

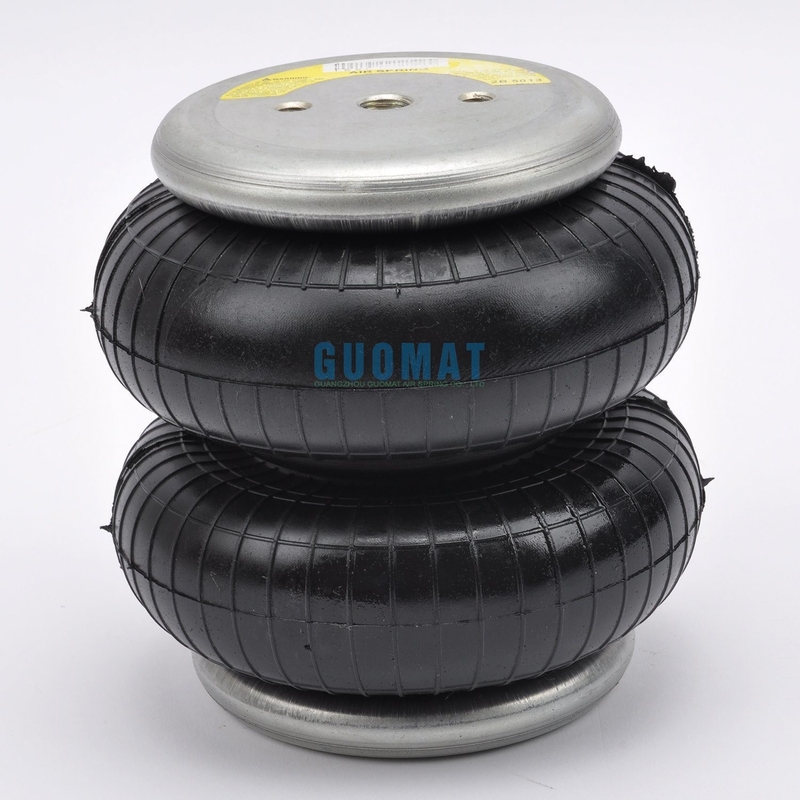

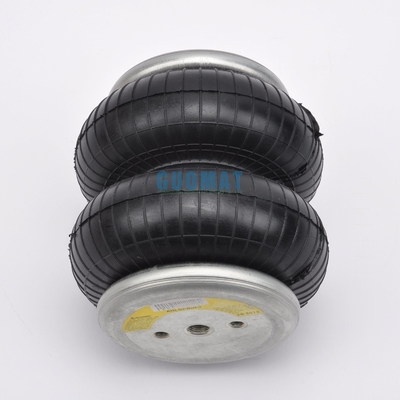

Product Image
