Firestone Double Convoluted W01-358-7180 Air Suspension For Pneumatic Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B7180

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	W01-358-7180	Structure:	Double Convoluted
Damping Force Direction:	Bidirectional	Air Inlet:	1/4NPT
Screw(Nut):	3/8-16unc	Manufacturer:	GUOMAT
Type:	Gas-Filled	Customization:	Available \| Customized Request
Highlight:	Double Convoluted Industrial Air Spring , Industrial Air Spring W01-358-7180

Firestone Double Convoluted W01-358-7180 Air Suspension For Pneumatic Bellow

Product Specification

Cover Plate
Top Cover Plate Diameter	9 in.
Screw Center Distance of Top Cover Plat	6.2 in.
Bottom Cover Plate Diameter	9 in.
Screw Center Distance of Bottom Cover Plate	6.2 in.
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth	3/8-16 UNC
Bottom Cover Plate Screw(Nut) Tooth	3/8-16 UNC
Gas Hole/Air Inlet/Air Fitting
Air Hole	1/4 NPT
Rubber Bellow
Rubber Bellow Dia	12.9 in.
Minimum Height	3.2 in.
Maximum Height	12 in.

Cross Information

Fire-stone : YR01-358-7140

Granning:1015

Hendnickson:1003587140C

Wastonchalin:AS-0008

OEM Information

Contitech:FD 530-22 316

Goodyear:2B 14-359

:578923351/353

Style 22 Has Other OEM Number

Blind nuts, 1/4 NPT	W01-358-7180, W01 358 7180, W013587180 WO1-358-7180, WO1 358 7180, WO13587180
Blind nuts, 1/4 NPT, bumper	W01-358-7400, W01 358 7400, W013587400 WO1-358-7400, WO1 358 7400, WO13587400
Blind nuts, 3/4 NPT	W01-358-7184, W01 358 7184, W013587184 WO1-358-7184, WO1 358 7184, WO13587184
Blind nuts, 3/4 NPT, bumper	W01-358-7185, W01 358 7185, W013587185 WO1-358-7185, WO1 358 7185, WO13587185
Countersunk steel bead rings, 15/8 bolts, nuts, washers	W01-358-7431, W01 358 7431, W013587431 WO1-358-7431, WO1 358 7431, WO13587431
Rubber bellows only	W01-358-0226, W01 358 0226, W013580226 WO1-358-0226, WO1 358 0226, WO13580226

Optimized Air Spring Maintenance Protocol for Enhanced Vehicle Performance

Comprehensive Inspection of Air Suspension Components**: Conduct a meticulous examination of the air lines and associated devices to ascertain the absence of leaks and to confirm their smooth operational rotation.
Assessment of Bellows and Bearings: Scrutinize the bellows for any signs of damage, ensuring proper fastening, absence of deformation, and the lack of sharp edges that could compromise structural integrity.
Shock Absorber Functionality and Integrity: Evaluate the shock absorbers for seamless operation, impermeability, and to verify their tightness and bearing condition.
Torque Verification of Fasteners: Regularly inspect the nuts and bolts to ensure they are torqued correctly. Consult the manufacturer's manual for specific torque recommendations to maintain optimal suspension performance.
Examination of Axle Suspension Components**: Inspect the axle suspension, trailing arms, and connecting rods for signs of wear and tear, which could affect the vehicle's stability and handling.
Height Control Valve Functionality: Verify the proper operation of the height control valve, as its efficient functioning can significantly reduce unnecessary maintenance costs.
Scheduled Maintenance: Adhere to a routine inspection schedule as outlined by the manufacturer's instructions to prolong the vehicle's lifespan and minimize overall maintenance expenses.

By adhering to this advanced maintenance protocol, vehicle owners can ensure the longevity and optimal performance of their air spring systems, aligning with best practices for vehicle upkeep.

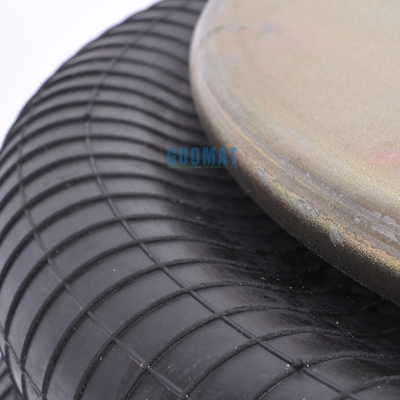

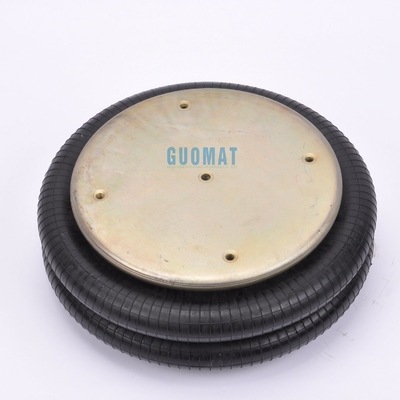

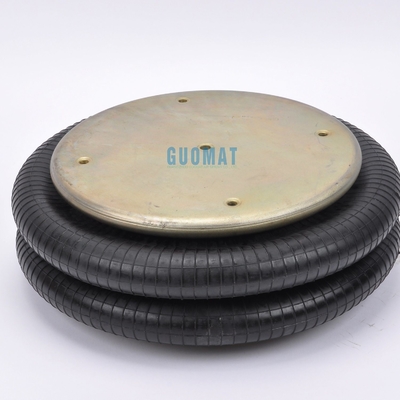

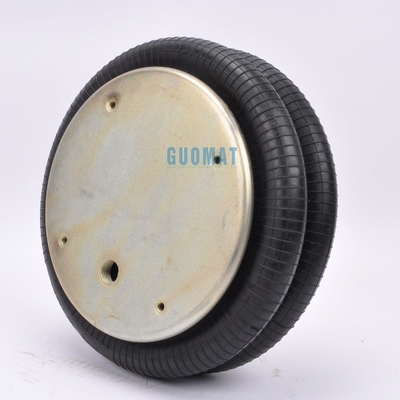

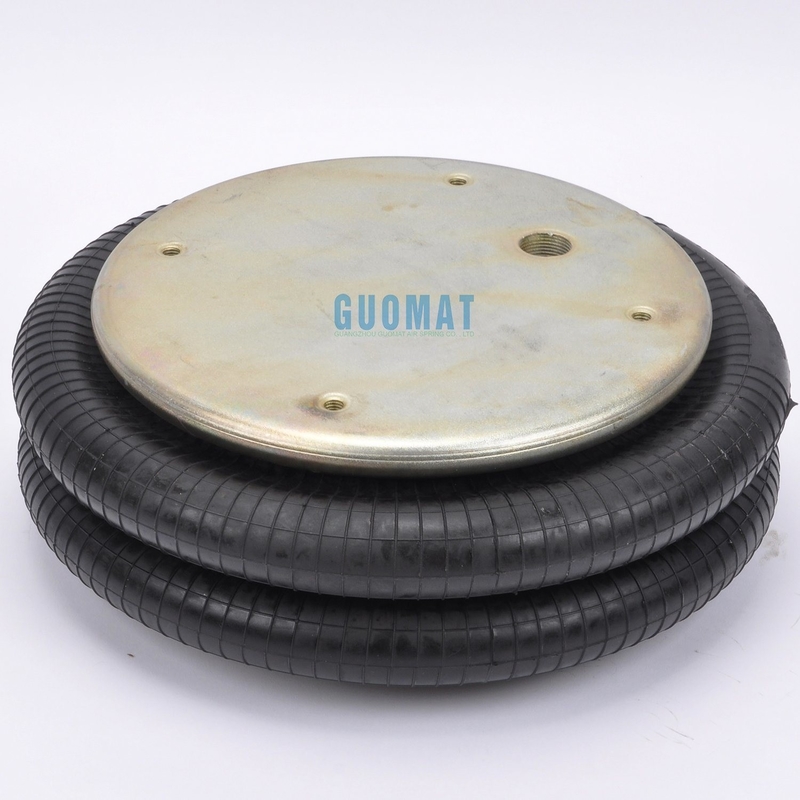

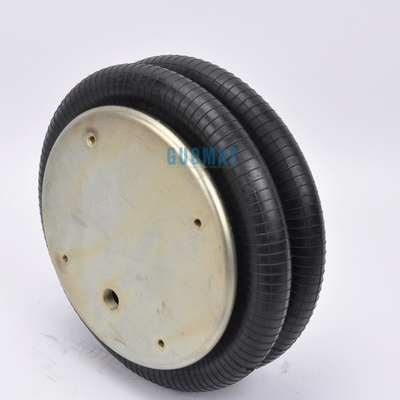

Product Picture
