| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-240-2 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD99.9-129.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Type: | Punching Air Spring | Model NO.: | F-240-2 |
|---|---|---|---|
| Structure: | Double Convoluted | Sample: | Available |
| Function: | Reduce Shock | Quality: | 100% Tested |
| Position: | Punching Machine | Spring Material: | High Quality Rubber |
| High Light: | Double Convoluted Air Suspension Air Spring,S-240-2 Air Suspension Air Spring |
||

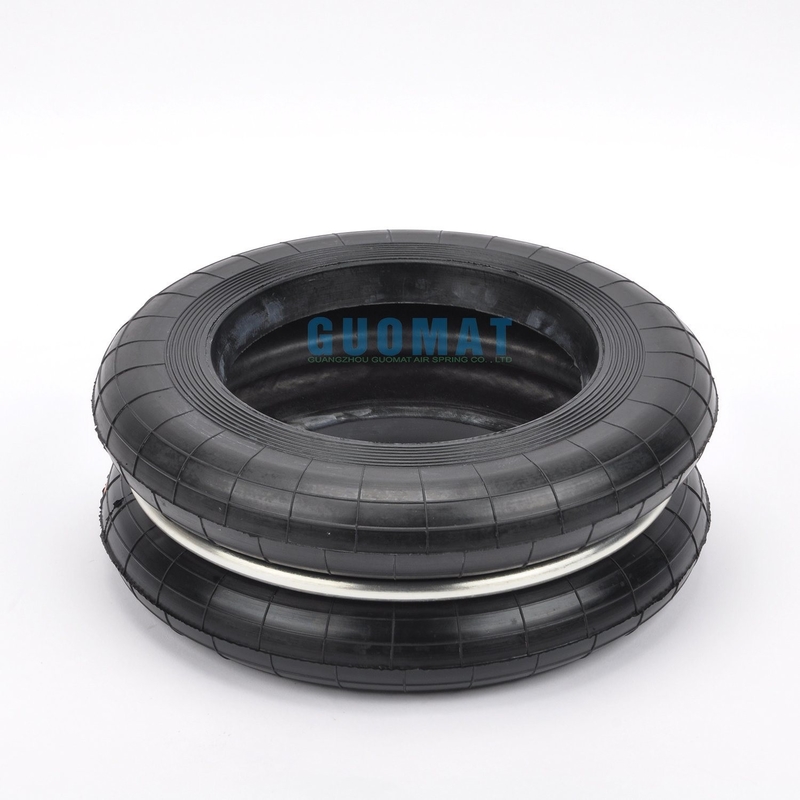

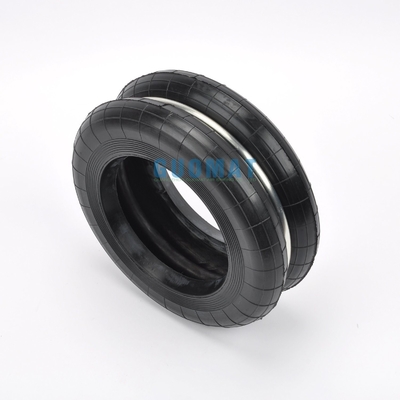

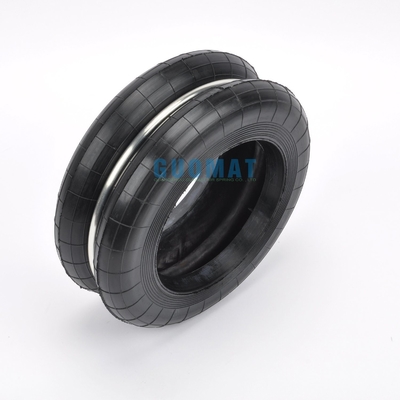

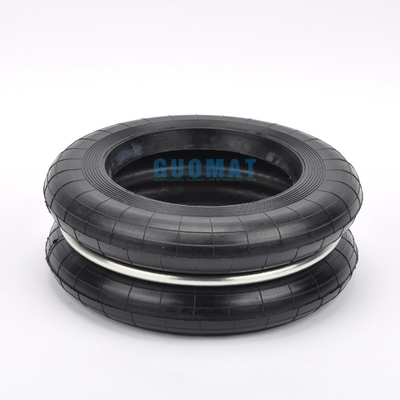

Universal Lift Bag S-240-2 Double Industrial Convoluted Air suspension/Air Spring/Lift Up
| Item | Air Spring/Shock Absorber Spring/Air Bellows |
| Brand | Guomat/Neutral |
| Model Number | F-240-2 |
| Material | Natural Rubber |
| Warranty | 1 Year |
| MOQ | 1 PCS If We Have Stock |
| Package | (1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package |
| Delivery Time | 2-8 Working Days |
| Payment | T/T, L/C, PayPal, Western Union |
| After Service | (1) Examination Before Shipment (2) Follow Up The Customers' Feedback |
| Main products we sell | Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump |
Technical Dada Purchase Order Data
| GUOMAT NO. | Reference NO. | Height H(mm) | Common Maximum Travel (mm) | Compression Max Outside Diameter (mm) |
Effective Area (cm2) |
Volume(L) | ||
| Design Height (mm) | Max Height (mm) | Min Height(mm) | ||||||
| F-240-4 | S-240-4 | 206 | 316 | 111 | ±80 | 300 | 450 | 10.1 |
| F-240-3 | S-240-3 | 152 | 232 | 82 | ±60 | 300 | 450 | 7.3 |
| F-240-2 | S-240-2 | 98 | 148 | 53 | ±40 | 300 | 450 | 4.4 |
| F-240-1 | S-240-1 | 72 | 110 | 40 | ±30 | 340 | 450 | 3.5 |
| GUOMAT NO. | Reference NO. | Load (KN) | Dynamic Spring Constant(n/mm) | Natural Vibration Frequency(Hz) | Maximum Internal Pressure(MPa) | Internal Pressure Failure(MPa) |
| F-240-4 | S-200-4 | 22.2 | 235 | 1.6 | 0.88 | 2.9-3.9 |
| F-240-3 | S-200-3 | 22.2 | 324 | 1.9 | 0.88 | 2.9-3.9 |
| F-240-2 | S-200-2 | 22.2 | 520 | 2.4 | 0.88 | 2.9-3.9 |
| F-240-1 | S-240-1 | 22.2 | 765 | 2.9 | 0.88 | 2.9-3.9 |
Industrial Air Spring
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.
GUOMAT Other Related Product
| Contitech | Goodyear | Fire-stone | Phoenix |
| 928N | 8042 | W01-095-0228 | 2E23A |
| 943N | 9001 | W01-095-0189 | |
| 973N | 8012 | W01-095-0198 | 1F21A |
| 945N | 9014 | W01-095-0063 | 1E21C |
| 975N | W01-095-0437 | 1E10 | |
| W01-095-0294 | |||
| W01-358-9391 | |||
| 4913NP02 | 1R14-753 | W01-095-0500 | 1D28H-16 |
| 1R14-869 | |||
| 4159NP06 | W01-M58-0736 | ||
| 810NTB | 1R14-713 | W01-M58-0749 | 1DK28A4 |
| 4022NP02 | 1R11-709 | W01-M58-0756 | |
| 4022NP02 | 1R11-709 | W01-M58-0756 | |
| 836MB | W01-M58-0775 | 1DF25-4 | |
| 836MB | 1R12-700 | W01-M58-0776 | 1DF25-1 |
| 836M2K1 | 1R12-711 | W01-M58-8721 | 1DF25-13 |
| 887M | 1R11-796 | W01-M58-0780 | |
| 889MK2 | W01-M58-0781 | ||
| W01-M58-0918 | |||
| 4004NP02 | W01-M58-0919 | ||
| 4004NP02 | W01-M58-0919 | ||
| 6603NP02 | |||
| 4183NP23 | |||
| 4883N1P07 | |||
| 6609NP01 |
