Rubber Air Contitech Spring FD70-13 Style Bellows For Lifted Machine

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/Ts16949:2009
Model Number:	2B7070

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Pressure Ability:	0.2-0.8 M PA	Air Inlet:	1/4NPTF
Trademark:	GUOMAT	Origin:	Guangzhou, China
HS Code:	8708809000	OEM:	Contitech FD70-13
Natural Height:	162mm	Other Name:	Contitech Helper Spring
Highlight:	FD70-13 Style Industrial Air Spring , Rubber Industrial Air Spring

Rubber Air Contitech Spring FD70-13 Style Bellows For Lifted Machine

OEM NO.

Contitech	FD 70-13
Contitech	FD 70 13
Contitech	FD70-13
Contitech	FD70 13
Contitech	FD7013
Contitech	FD 7013

2B70-13 Rubber Air Spring Tecnical Data

1. Nut/blind nut Top plate screw (nut) teeth: 2 x M8X1.25

Top plate screw center distance: 44.5 mm

2. Bottom cover plate screw (nut) teeth: 2 xM8X1.25

Bottom plate screw center distance : 44.5 mm
2. Air hole/air inlet/air fitting air hole/air inlet: G1/4
3. Top plate diameter (width): 105 mm, bottom cover diameter (width): 105 mm bell-shaped rubber bellows rubber bellows diameter: 146 mm

4. Bumper block/bumper block without bumper
5. Belt loop/belt loop with belt loop: with one belt loop

6. Net Weight: 1.6

7. Gross Weight: 2.0

The competitive advantage of the product

1. The product quality is excellent, natural rubber imported from Thailand, combined with German technology.

2. For products with the same price in the market, Gaomat strives for better quality. For products of the same quality, Gaomat strives for lower prices.
3. More than ten years of production technology, products cover the world.

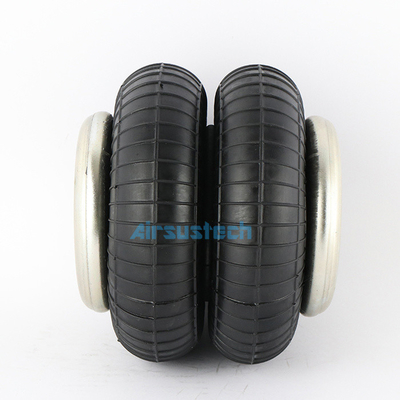

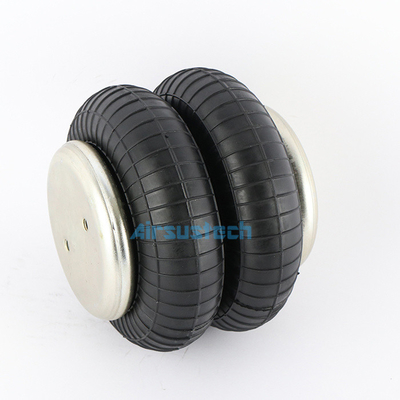

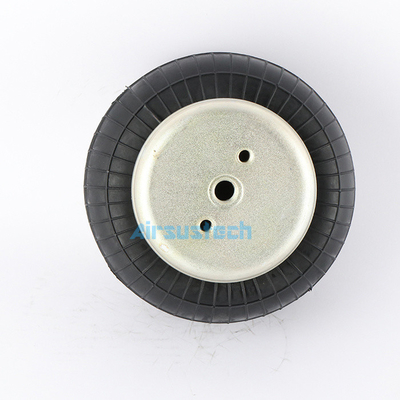

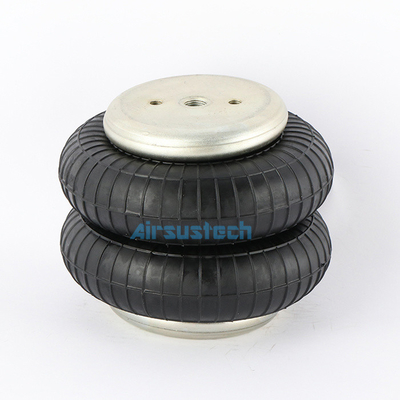

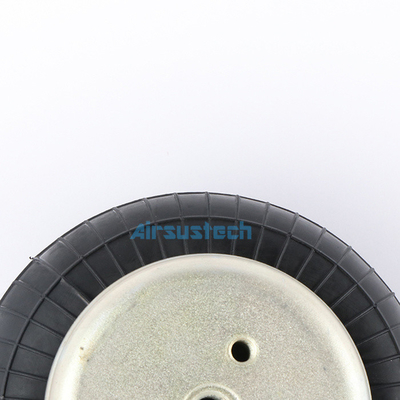

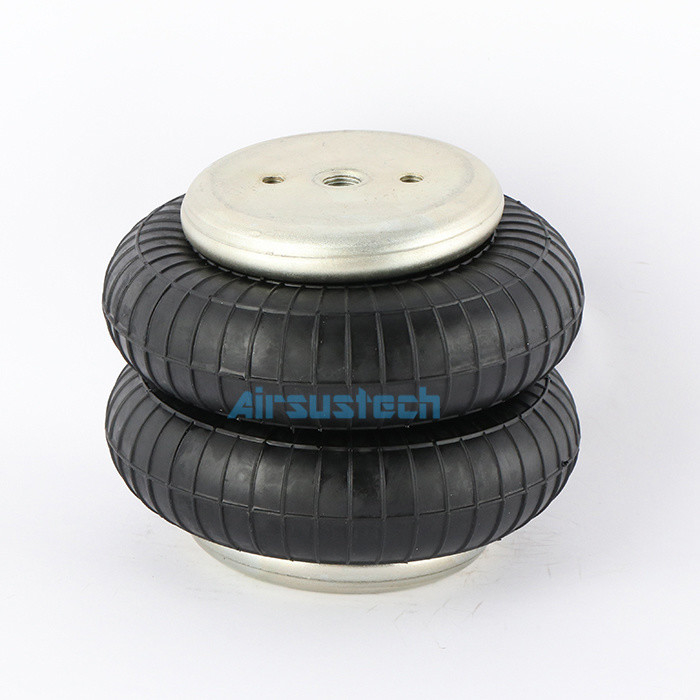

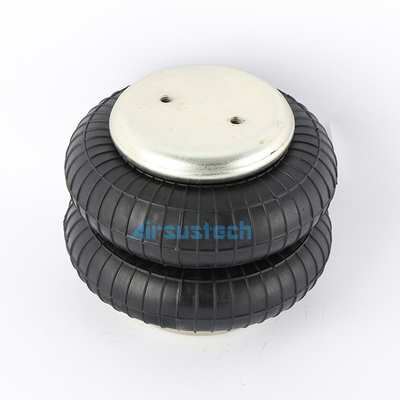

The picture

Rubber Air Contitech Spring Fd70-13 Style Bellows for Lifted Machine
