Contitech Double Convoluted Air Bellow FD76-14 CR G1/2 Air Inlet For Industries

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/Ts16949:2009
Model Number:	2B6×2T

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product Number:	2B6×2T	Brand Name:	GUOMAT
Spring Type:	Air Spring/Air Suspension	Minimum Height:	75 MM
Maximum Height:	190 MM	Bellow Max. Dia.:	178 MM
Space Required:	195 MM	DUNLOP:	SP1482
Highlight:	Industries Air Bellow , FD76-14 CR Air Bellow

Contitech Double Convoluted Air Bellow FD76-14 CR G1/2 Air Inlet For Industries

GUOMAT 2B6×2T Specification

Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 127 mm
Bottom Plate Diameter: 153.5 mm
Bottom Plate Hole Quantity: 5
Bottom Plate Type: Steel

Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 127 mm
Top Plate Diameter: 153.5 mm
Top Plate Hole Quantity:4
Top Plate Type: Steel

Maximum Diameter: 178 mm
Maximum Height: 190 mm
Minimum Height: 75 mm
Spring Type: Double Convoluted

Air Inlet: G1/2
Nut/Nuts Type: 4×M10

2B6×2T Other OEM Number

ContiTech: FD 76-14 1/2 M10
ContiTech: FD 76-14 DS G1/2
ContiTech: FD 76-14 DS G1/2 CR
ContiTech: FD 76-14 DS CR G1/2
ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR
ContiTech Bellow: FD 76-14 / FD76-14 / FD7614
Norgren: PM/31062 / PM 31062 / PM31062
Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2
Dunlop FR: SP1482
Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112
Double Convoluted Air Spring 2B180-115 D185
Double Convoluted Air Spring 2B180-115 D185
Replaces These Air Springs (Air Bellows)

Product Operation

Due to their flexible construction the mounting of Air Bellows is less critical than with conventional pneumatic cylinders, which normally require rigid fixing and guidance and provide only one axis within a limit of 15° between faces. Additionally the axial location of the end plates may be off set by up to 10 mm.
When pressurised Air Bellows will follow the line of leased resistance. Accordingly care must be taken with the mounting geometry in angled applications.
When depressurised Air Bellows will fit in to surprisingly small spaces, especially useful for clamping or moving awkwardly shaped or very heavy loads.
In operation it is recommended that the unit is not allowed to "bottom out" or achieve its maximum height. Various mechanical devices may be employed to achieve this.

FAQ

Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.

Q: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world

Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.

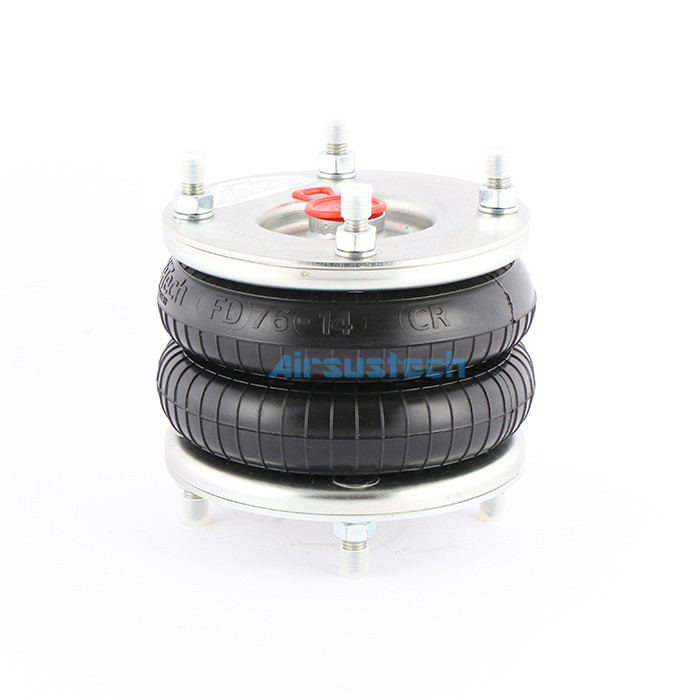

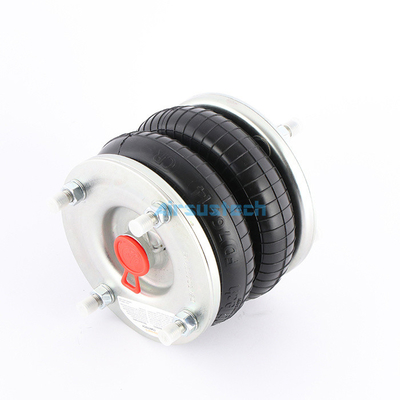

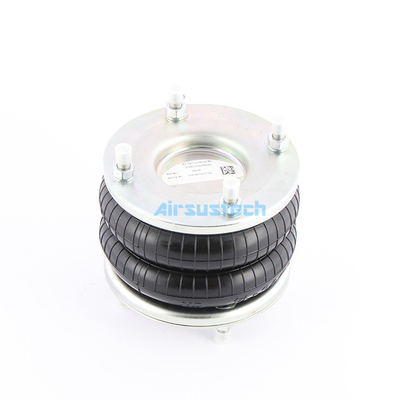

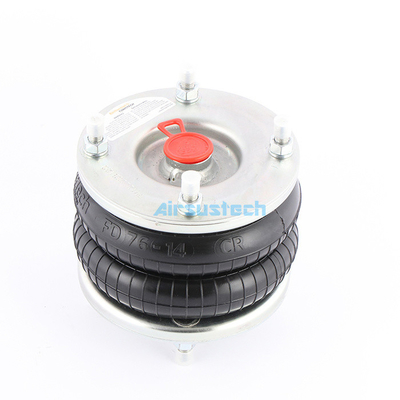

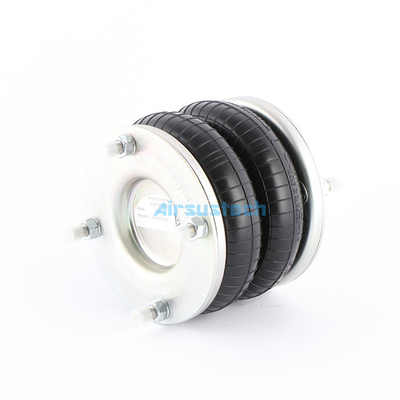

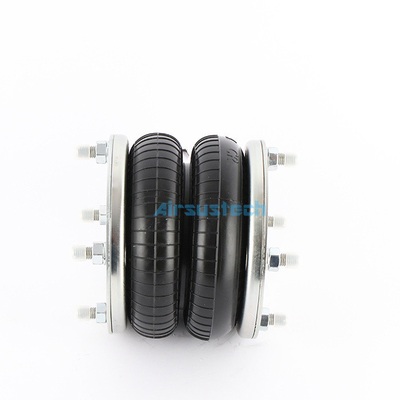

The Picture of The Product

Contitech Double Convoluted Air Bellow FD76-14 CR G1/2 Air Inlet For Industries 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Contitech Double Convoluted Air Bellow FD76-14 CR G1/2 Air Inlet For Industries 2

Factory Workshop
