Double Convoluted Air Bellow NORGREN M/31122 (M31122) Air Spring

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/Ts16949:2009
Model Number:	2B12X2

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD119.9-159.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Structure:	Double Cylinder	Pressure Ability:	0.2-0.8 M PA
Key:	Norgren M/31122	After-sales Service:	12 Months
Type:	Gas-Filled	Material:	Rubber+Steel
Contitech:	FD 412-18	Firestone:	W01-R58-4061
Highlight:	NORGREN M/31122 Air Bellow , Double Convoluted Air Bellow , M31122 Air Bellow

Double Convoluted Air Bellow NORGREN M/31122 (M31122) Air Spring

Feature:
▪ Frictionless operation
▪ No maintenance or lubrication required
▪ Suitable for short stroke, high force applications
▪ High vibration isolation level
▪ Simple and compact installation

OEM NO.

AIRSUSTECH NO. 2B12X2
Norgren NO. M/31122
Norgren NO. M 31122
Norgren NO. M31122
Weweler USN 510011KD
Contitech FD 412-18 1/2 M10
Contitech FD 412 18 1/2 M10
Contitech FD412-18 1/2 M10
Contitech FD412 18 1/2 M10
Order No 60040070 ST 20301.F Air Spring
Gigant 881202
Firestone W01 R58 4061
Firestone W01-R58-4061
Granning 15813
Goodyear 2B12-2452 Ø260
Goodyear 578-92-3-2452 Rp 1/2"
Airtech 2B-300 / 113300
Weight (Kg): 6,42 QIP: 45
Order No 60040071 ST 20301-01.F Air Spring

BPW HB10350
Contitech FD 412-18 P01
Fruehauf UJB 0985
Firestone 12 x 2 NB
SAE-SMB M063796
Firestone W01-R58-4073 Ø260
Granning 15814 Goodyear 2B12-2457
Goodyear 578-92-3-2452 M16x1.5
Airtech 2B -300 / 113301 4xM10x1.5

Specifications and Detailed Technical Parameters:AIRSUSTECH 2B12X2

Top/Bottom Cover Plate Screw (Nut) Tooth	4PCS X M10Nut / Blind Nut
Gas Hole / Air inlet	G1/2
Top/Bottom Cover Plate Diameter (Width)	210 mm
Material top and bottom plate	Steel
Stroke of Rubber Bellows	75 mm-300m
Bumper block / Buffer block	Without
Girdle Hoop / Girdle Ring	One Pieces of Girdle Hoop
Rubber material Standard up to 70°C natural rubber

The competitive advantage of the product

1. The product quality is excellent, natural rubber imported from Thailand, combined with German technology.

2. For products with the same price in the market, Gaomat strives for better quality. For products of the same quality, Gaomat strives for lower prices.
3. More than ten years of production technology, products cover the world.

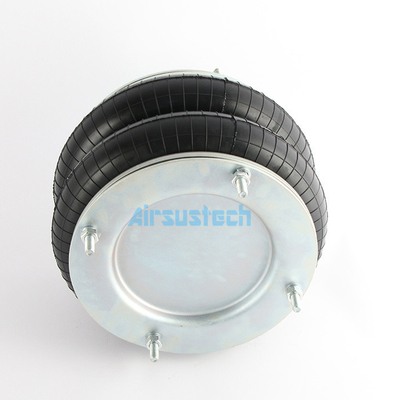

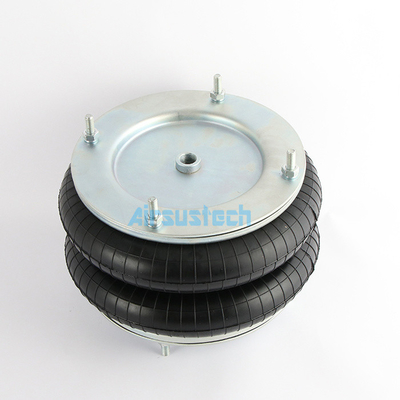

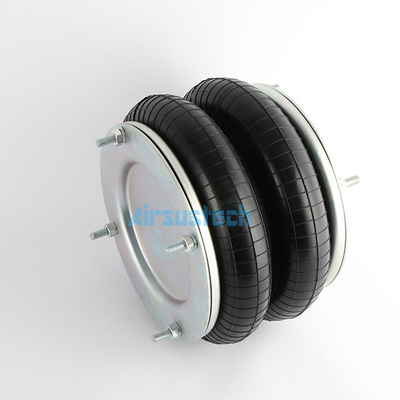

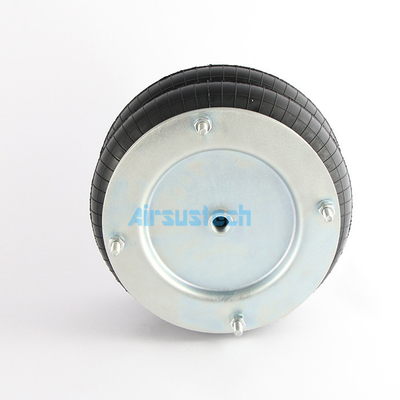

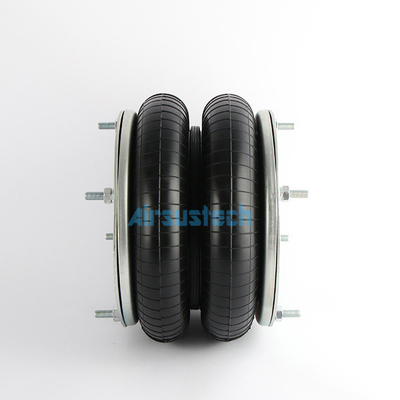

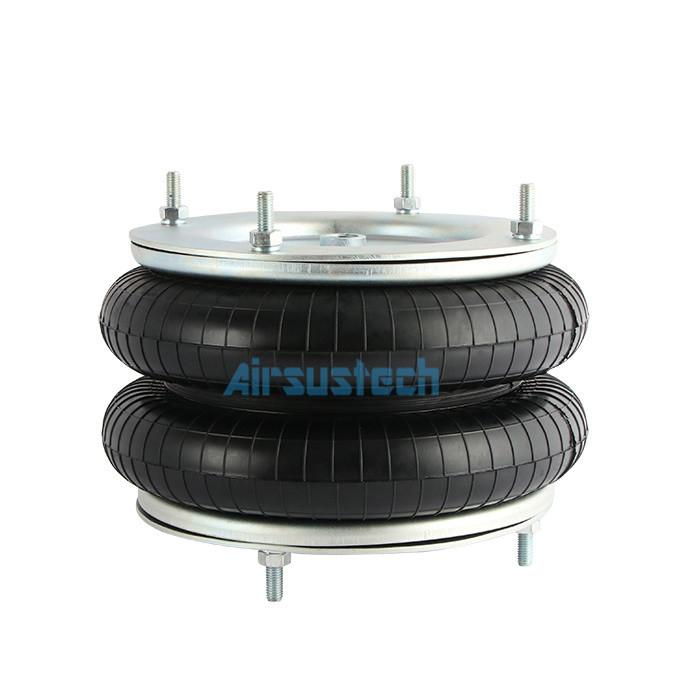

The picture of the product

Double Convoluted Air Bellow NORGREN M/31122 (M31122) Air Spring 0
