W01-358-6926 Firestone Air Shock Absorption Natural Rubber Bellow Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6926

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product NO.:	2B6926	Bellow Type:	Double Convoluted
Quality:	100 % Tested	Fuction:	Shock Absorption
Firestone:	W01-358-6926	Manufacturer:	GUOMAT
After-sales Service:	12 Months	Type:	Gas-Filled
Highlight:	Natural Rubber Bellow Air Spring , Firestone Air Bellow Spring , Firestone Bellow Air Spring

W01-358-6926 Firestone Air Shock Absorption Natural Rubber Bellow Air Spring

2B6926 Specification

Nut/blind nut

Top plate screw (nut) teeth:2X3/8-16UNC
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 89 mm

Air hole/air inlet/air fitting

Air hole/air inlet: 1/4NPTF
The screw center distance between the air hole and the nut: 38mm

Cover plate

Top plate diameter: 160 mm
Diameter of the bottom cover: 160mm

Rubber bellows

Rubber bellows diameter: 224mm(MAX251)
The Maximum Height: 274mm
The Minimum Height: 95 mm

Bumper block/bumper block

With bumper block

Belt loop/Belt loop

With belt loop: One belt loop

Min. pressure: 0bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 3.2kg

Cross References

Firestone	W01-358-6926, W01 358 6926, W013586926 WO1-358-6926, WO1 358 6926, WO13586926
Contitech	FD 200-19 504, FD 200 19 504, FD200-19 504 FD200 19 504, FD20019504, FD200-19504
Triangle	6325, 4504
RR Load	LS20, LS 20

Product Technical Data

Pneumatic application-static characteristic values
Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	250	4.9	6.6	8.2	9.5	11.7	13.4	6.5
	210	6.7	8.8	11.0	13.3	15.5	17.6	5.8
	170	7.9	10.5	13.1	15.7	18.3	20.7	4.9
	130	9.1	12.0	15.0	17.8	20.7	23.4	4.0
	90	9.9	13.2	16.6	19.8	23.0	25.8	2.9

Product Applications

Applications
Scissor lift
Hopper vibration and damping
Mechanical handling stop
Quick lock device
Reel tensioning
Machine isolation
Direct force
Impact absorbtion
Roller tensioning
Platform lift
Short stroke mechanical linkage
Hot foll stamping press

The Related Picture

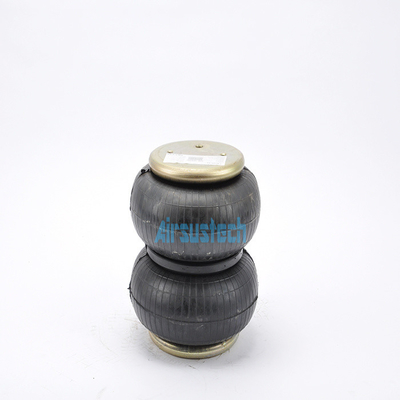

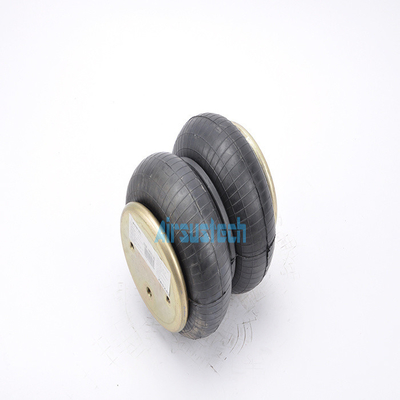

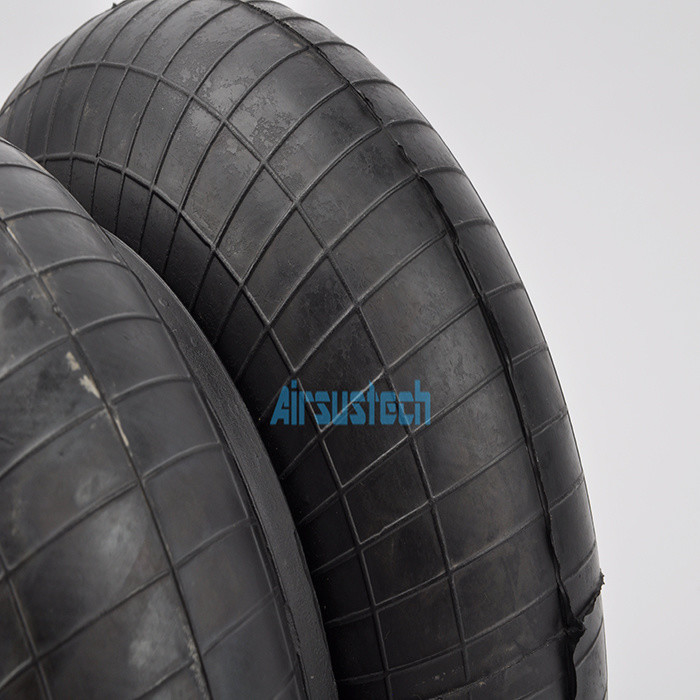

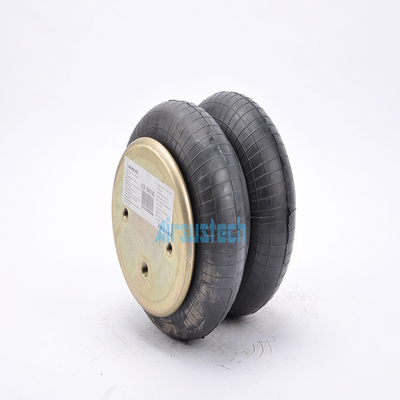

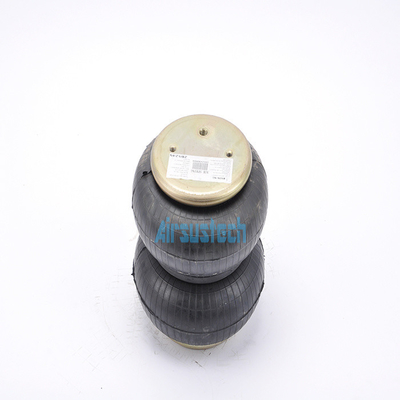

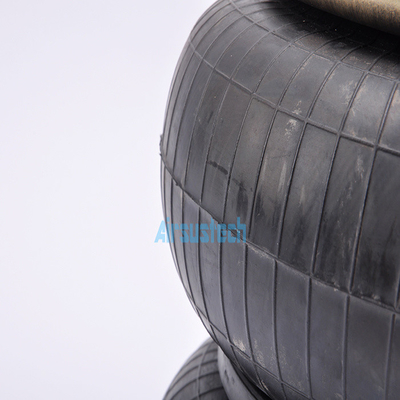

W01-358-6926 Firestone Air Shock Absorption Natural Rubber Bellow Air Spring 0
