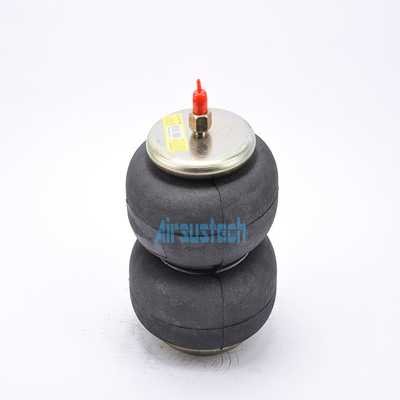

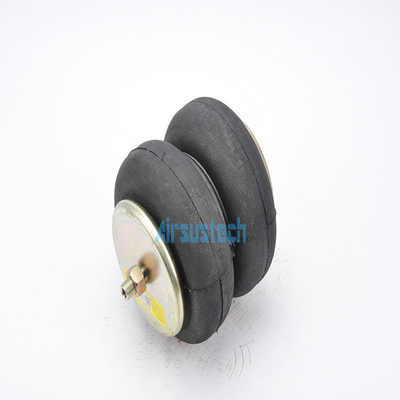

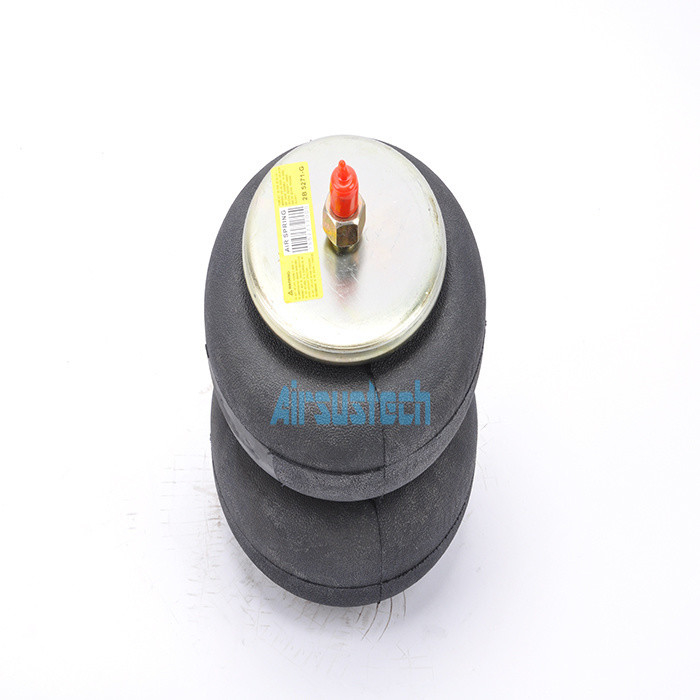

Rubber Convoluted Air Bags Replace For W01-358-6927 Spring Bellows

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6927

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Quality:	100 % Tested	Fuction:	Reduce Shock
Firestone:	W01-358-6927	HS Code:	8708809000
Warranty:	12 Months	SAF Holland:	57006927
Max.Height:	325mm	Min.Height:	81mm
Highlight:	Rubber Convoluted Air Bags , W01-358-6927 Convoluted Air Bags , 8708809000 Industrial Air Spring

Rubber Convoluted Air Bags Replace For W01-358-6927 Spring Bellows

OEM NO.

Firestone	W01-358-6927
Firestone	WO13586927
Firestone	WO1-358-6927
Firestone	W013586927
FIRESTONE	W01-358-6927
FIRESTONE	WO13586927
FIRESTONE	WO1-358-6927
FIRESTONE	W013586927
Contitech	FD 200-25 453
Contitech	FD 200 25 453
Contitech	FD200-25 453
Contitech	FD 200 25 453
Contitech	FD20025453
Contitech	161366
Triangle	6332
Triangle	4453
Goodyear	2B9-218
Goodyear	2B9 218
Goodyear	578923206/2
Reyco	12906-01
Reyco	12906 01
Leland	Sc2072
SAF Holland	57006927
Tuthill Technology	1290601

Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6927

Nut/blind nut

Top plate screw (nut) teeth: 1X3/4-16UNF
The screw center distance of the top cover plate: In the middle
Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 89 mm

Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPTF
The screw center distance between the air hole and the nut: 35mm

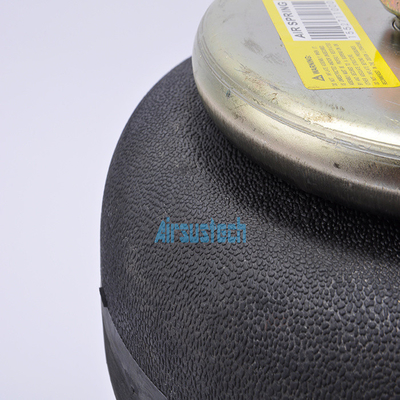

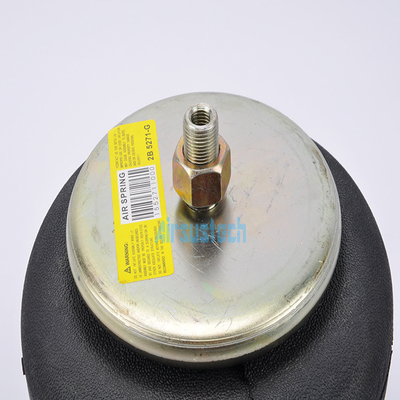

Cover plate

Top plate diameter: 160 mm
Diameter of the bottom cover: 160mm

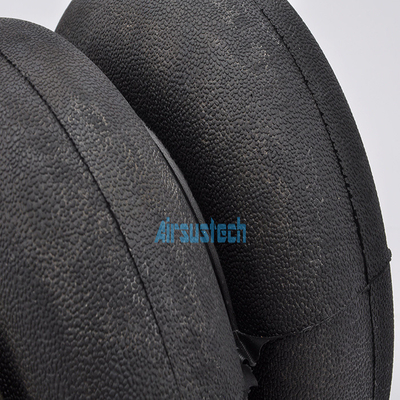

Bell rubber bellows

Maximum diameter of rubber bellows: 262 mm
Natural diameter of rubber bellows:240 mm
Working stroke: minimum 81 mm to maximum 325 mm
Maximum height: 325mm
Minimum height: 81 mm
Stroke height: 244mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop

With belt loop: One belt loop

Min. pressure: 0bar
Return force to min.height: ≤250N
Overall weight with clamped plates: 3.5kg

Vibration isloation-dynamic characteristic values
Design height H: recommended 254mm, minimum 230mm

Pressure p [bar]	3	4	5	6	7	8	Vol. V [l]
Force (Load) [KN]	6.0	8.1	10.2	12.3	14.4	16.5	8.6
Spring rate [N/cm]	730	930	1200	1390	1660	1840
Natural frequency [Hz]	1.8	1.8	1.7	1.7	1.7	1.7

Pneumatic application-static characteristic values
Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	290	4.1	5.6	7.3	9.0	10.5	12.4	9.4
	260	5.6	7.3	9.4	11.3	13.4	15.4	8.9
	230	6.6	8.8	11.1	13.4	15.8	18.1	8.4
	200	7.5	9.9	12.5	15.0	17.6	20.2	7.7
	170	8.3	11.0	13.8	16.6	19.4	22.2	7.0
	140	8.9	11.8	14.8	17.7	20.7	23.6	6.1
	110	9.3	12.3	15.6	18.7	21.9	24.6	5.1
