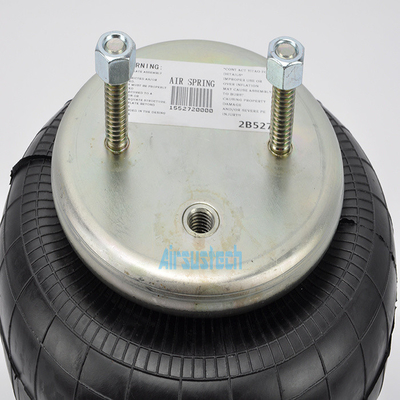

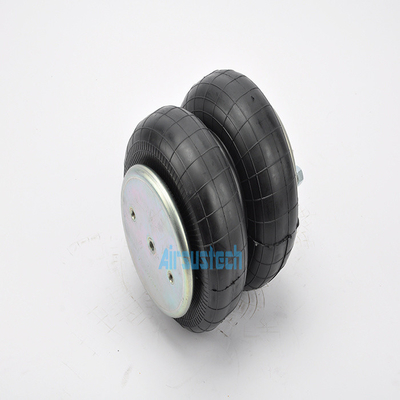

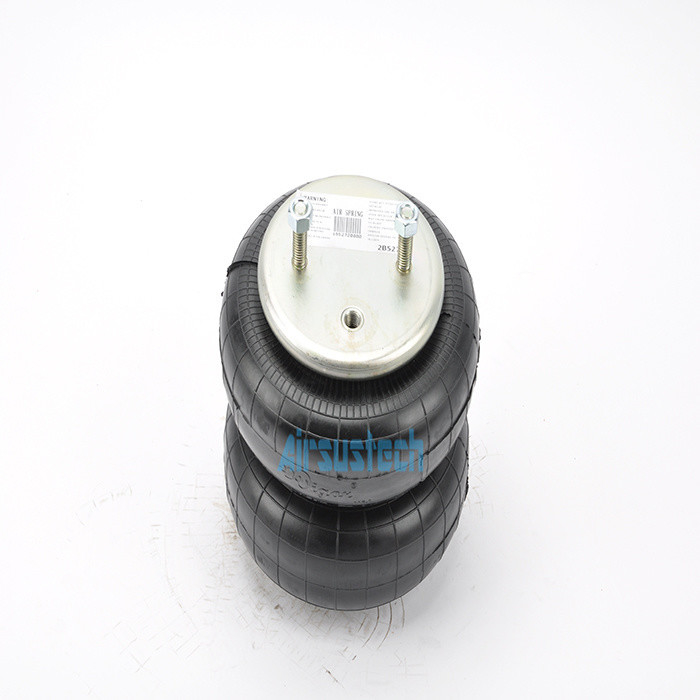

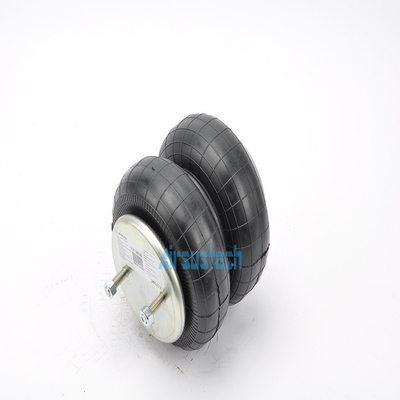

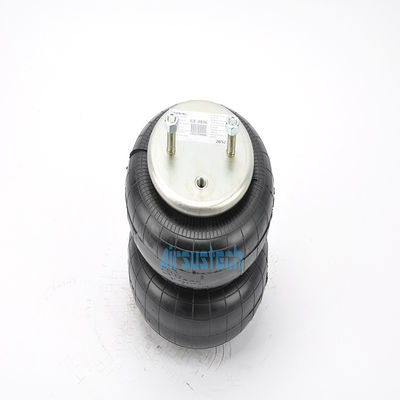

Goodyear 2B9-250 Air Spring Rubber W01-358-6943 Firestone Double Bellow Suspension Air Bags

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6943

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Item Name:	Plate Industrial Rubber Bellows	Quality:	100 % Tested
Fuction:	Reduce Shock	Firestone:	W01-358-6943
After-sales Service:	12 Months	Type:	Gas-Filled
Goodyear:	2B9-250	Stroke:	79mm-325mm
Highlight:	Goodyear 2B9-250 Air Spring , 2B9-250 Air Spring , W01-358-6943 Suspension Air Bags

Goodyear 2B9-250 Air Spring Rubber W01-358-6943 Firestone Double Bellow Suspension Air Bags

OEM NO.

Firestone	W01-358-6943
Firestone	WO13586943
Firestone	WO1-358-6943
Firestone	W013586943
FIRESTONE	W01-358-6943
FIRESTONE	WO13586943
FIRESTONE	WO1-358-6943
FIRESTONE	W013586943
Contitech	FD 200-25 426
Contitech	FD 200 25 426
Contitech	FD200-25 426
Contitech	FD 200 25 426
Contitech	FD20025426
Contitech	161332
Triangle	6332
Triangle	4426
Goodyear	2B9-250
Goodyear	2B9 250
Goodyear	578923206
Watson&Chalin	AS-0041
Watson&Chalin	AS 0041
Neway/SAF	90557237
Ridewell	1003586943C
Tuthill	6352
Van Raden
V-Steer ll (Lift Bag

Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6927

Nut/blind nut

Top plate screw (nut) teeth: 2X1/2-13UNF
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-13UNC
The screw center distance of the bottom cover plate: 89 mm

Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPTF
The screw center distance between the air hole and the nut: 44.5mm

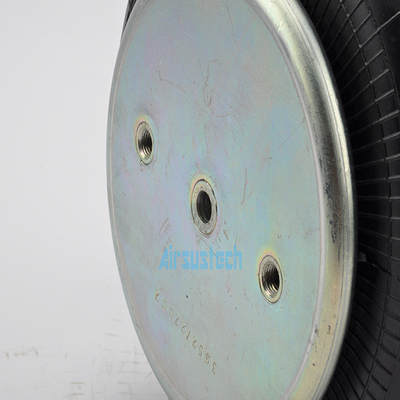

Cover plate

Top plate diameter: 160 mm
Diameter of the bottom cover: 160mm

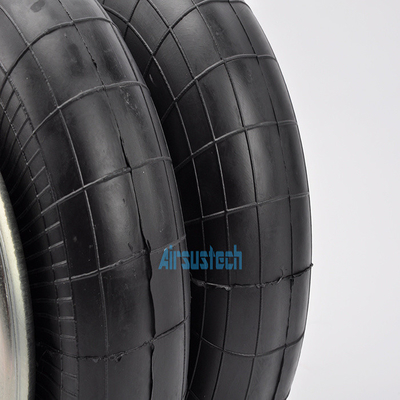

Bell rubber bellows

Maximum diameter of rubber bellows: 262 mm
Natural diameter of rubber bellows:240 mm
Working stroke: minimum 79 mm to maximum 325 mm
Maximum height: 325mm
Minimum height: 79 mm
Stroke height: 246mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop

With belt loop: One belt loop

Min. pressure: 0bar
Return force to min.height: ≤250N
Overall weight with clamped plates: 3.5kg

Vibration isloation-dynamic characteristic values
Design height H: recommended 254mm, minimum 230mm

Pressure p [bar]	3	4	5	6	7	8	Vol. V [l]
Force (Load) [KN]	6.0	8.1	10.2	12.3	14.4	16.5	8.6
Spring rate [N/cm]	730	930	1200	1390	1660	1840
Natural frequency [Hz]	1.8	1.8	1.7	1.7	1.7	1.7

Pneumatic application-static characteristic values
Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	290	4.1	5.6	7.3	9.0	10.5	12.4	9.4
	260	5.6	7.3	9.4	11.3	13.4	15.4	8.9
	230	6.6	8.8	11.1	13.4	15.8	18.1	8.4
	200	7.5	9.9	12.5	15.0	17.6	20.2	7.7
	170	8.3	11.0	13.8	16.6	19.4	22.2	7.0
	140	8.9	11.8	14.8	17.7	20.7	23.6	6.1
	110	9.3	12.3	15.6	18.7	21.9	24.6	5.1
