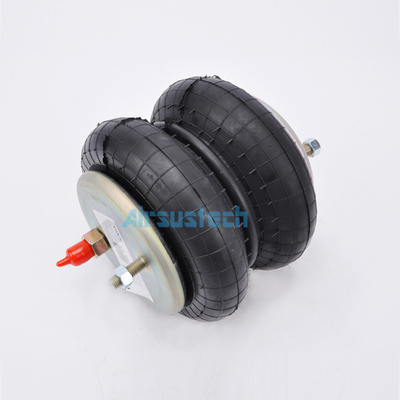

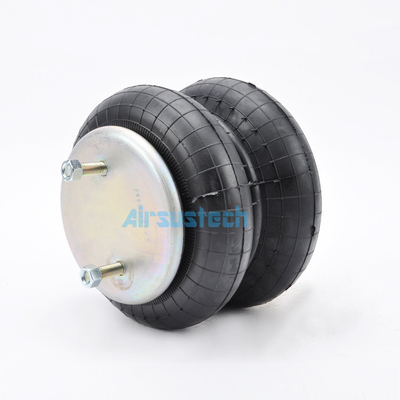

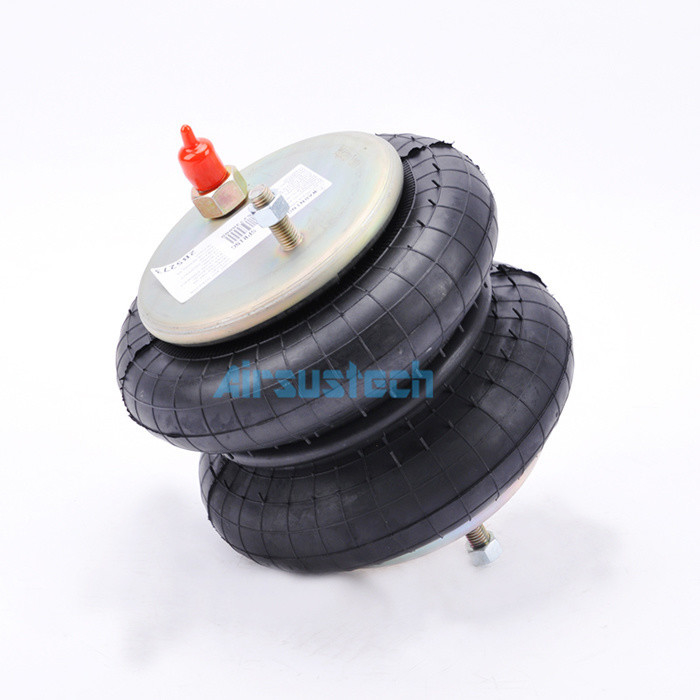

Contitech FD200-25 463 Air Spring 2B9-254 Goodyear Rubber Double Bellow Suspension

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6946

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Spring Type:	Convoluted Air Spring	Spring Material:	Rubber
Quality:	100 % Tested	Fuction:	Reduce Shock
Firestone:	W01-358-6946	After-sales Service:	12 Months
Part:	Air Spring	Type:	Gas-Filled
Highlight:	Goodyear Rubber Air Spring , 2B9-254 Air Spring , FD200-25 Air Spring

Contitech FD200-25 463 Air Spring 2B9-254 Goodyear Rubber Double Bellow Suspension

OEM NO.

Firestone	W01-358-6946
Firestone	WO13586946
Firestone	WO1-358-6946
Firestone	W013586946
FIRESTONE	W01-358-6946
FIRESTONE	WO13586946
FIRESTONE	WO1-358-6946
FIRESTONE	W013586946
Contitech	FD 200-25 463
Contitech	FD 200 25 463
Contitech	FD200-25 463
Contitech	FD 200 25 463
Contitech	FD20025463
Contitech	161338
Triangle	6332
Triangle	4463
Goodyear	2B9-254
Goodyear	2B9 254
Goodyear	578-92-3-206
Goodyear	578 92 3 206
Goodyear	578923206
Arvin Meritor	200180
Ridewell	1003586946C
Leland	Sc2126

Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6946

Nut/blind nut

Top plate screw (nut) teeth: M12×1.75 M18×1.5
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate: 2XM12×1.75
The screw center distance of the bottom cover plate: 89 mm

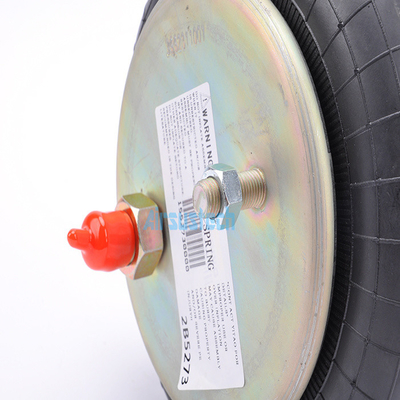

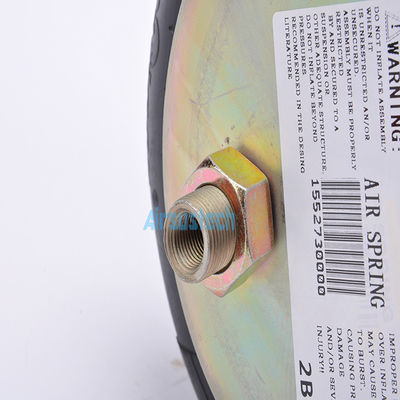

Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPTF
The screw center distance between the air hole and the nut: together

Cover plate

Top plate diameter: 160 mm
Diameter of the bottom cover: 160mm

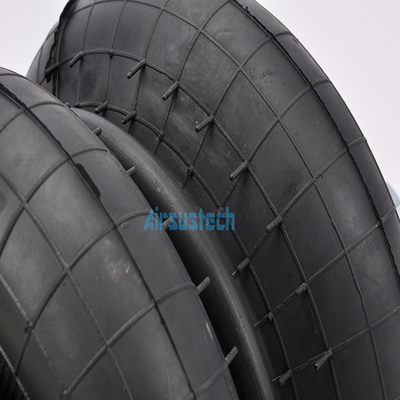

Bell rubber bellows

Maximum diameter of rubber bellows: 262 mm
Natural diameter of rubber bellows:240 mm
Working stroke: minimum 95 mm to maximum 325 mm
Maximum height: 325mm
Minimum height: 95 mm
Stroke height: 220mm

Bumper block/bumper block

With bumper block

Belt loop/Belt loop

With belt loop: One belt loop

Min. pressure: 0bar
Return force to min.height: ≤250N
Overall weight with clamped plates: 3.5kg

Vibration isloation-dynamic characteristic values
Design height H: recommended 254mm, minimum 230mm

Pressure p [bar]	3	4	5	6	7	8	Vol. V [l]
Force (Load) [KN]	6.0	8.1	10.2	12.3	14.4	16.5	8.6
Spring rate [N/cm]	730	930	1200	1390	1660	1840
Natural frequency [Hz]	1.8	1.8	1.7	1.7	1.7	1.7

Pneumatic application-static characteristic values
Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	290	4.1	5.6	7.3	9.0	10.5	12.4	9.4
	260	5.6	7.3	9.4	11.3	13.4	15.4	8.9
	230	6.6	8.8	11.1	13.4	15.8	18.1	8.4
	200	7.5	9.9	12.5	15.0	17.6	20.2	7.7
	170	8.3	11.0	13.8	16.6	19.4	22.2	7.0
	140	8.9	11.8	14.8	17.7	20.7	23.6	6.1
	110	9.3	12.3	15.6	18.7	21.9	24.6	5.1
