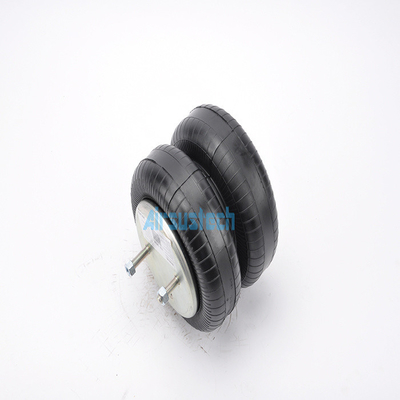

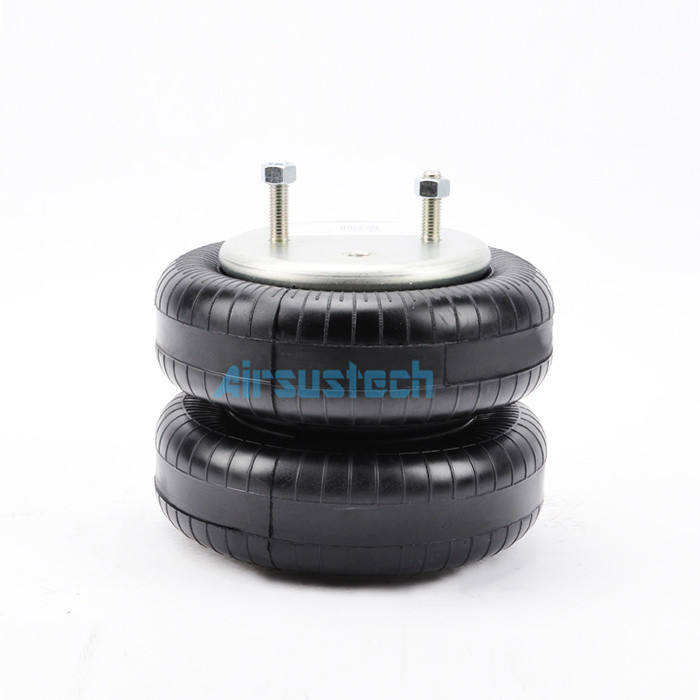

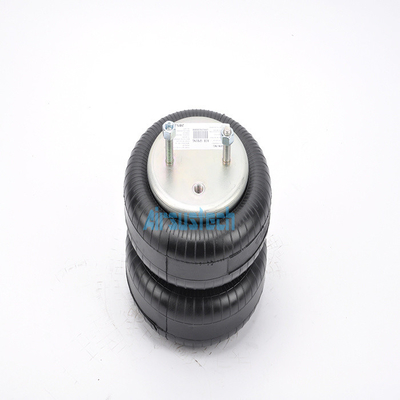

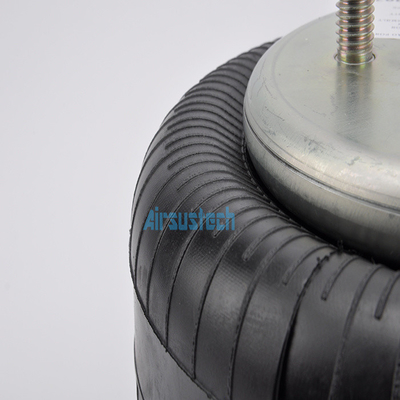

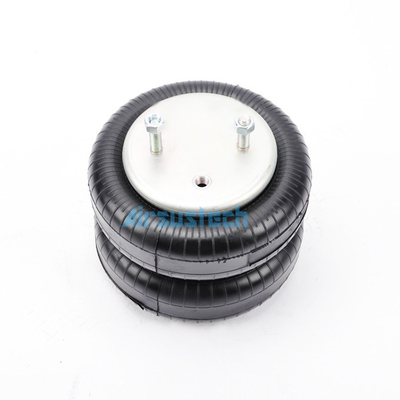

Firestone Air Bags W01-358-6945 Rubber Double Convoluted Spring 20-2 Style

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6945

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6945	Spring Material:	Rubber
Structure:	Double Cylinder	Damping Force Direction:	Bidirectional
Quality:	100 % Tested	Cetification:	ISO/Ts16949:2009
Fuction:	Reduce Shock	Product Name:	2b6945
Fire Stone:	W01-358-6945	Trademark:	GUOMAT
Origin:	Guangzhou, China	HS Code:	8708809000
Supply Ability:	1000PCS/Week	After-sales Service:	12 Months
Warranty:	12 Months	Part:	Air Spring
Position:	Guomat Or Neutral	Type:	Gas-Filled
Spring Type:	Air Spring	Samples:	US$ 59.9/Piece 1 Piece(Min.Order) \| Request Sampl
Customization:	Available \| Customized Request
Highlight:	Firestone Air Bags W01-358-6945 , Double Convoluted Firestone Air Bags

Firestone Air Bags W01-358-6945 Rubber Double Convoluted Spring 20-2 Style

OEM NO.

OEM FIRESTONE	W01-358-6945 / W01 358 6945 / W013586945
OEM FIRESTONE	20-2
OEM CONTITECH	FD 200-25 427 / FD200-25 427 / FD200-25427
OEM GOODYEAR	2B9-253 / 2B 9-253 / 2B9 253
OEM GOODYEAR	578923206 / 578 92 3 206 / 578-92-39206
OEM TRIANGLE	6332 / 4427
Ridewell	1003586945C
Leland	Sc2125
Watson&Chalin	AS0119F / AS01451G

Specifications and Detailed Technical Parameters:GUOMAT 2B6945

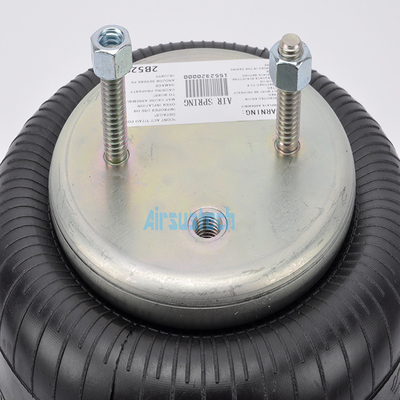

Nut/blind nut

Top plate screw (nut) teeth: 2X1/2-13UNC
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 89 mm

Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPTF
The screw center distance between the air hole and the nut: 44mm

Cover plate

Top plate diameter: 160 mm
Diameter of the bottom cover: 160mm

Bumper block/bumper block

With bumper block

Belt loop/Belt loop

With belt loop: One belt loop

The 2B6945 can replace Firestone W01-358-6945. They have same fuctions. And GUOMAT 2B6945 air spring advantages are as follow.

Excellent damping capacity Guomat air spring shock absorbers have high vibration isolation capability among all types of vibration shock absorbers. The natural frequency of the system can be as low as 1 hz. The system's natural frequency can be even lower if an additional air storage chamber is added. In order to achieve the same effect, the static deformation of traditional spiral spring shock absorbers is required to reach 220 mm.
Stable damping effect The unique feature of Guomat air spring shock absorbers is that the natural frequency of the system does not change significantly when the load changes. This characteristic, combined with precise height control, makes it particularly suitable for mounting Guomat air spring shock absorbers at various mounting points on equipment with uneven loads.
precise height control Guomat air spring shock absorbers provide precise height control by adjusting the internal air pressure. This feature eliminates fatigue and one-time setup problems common in other types of isolators.
Wide size range Guomat air spring shock absorbers have vibration isolation loads from 10KG to more than 10 tons per installation point.
