Firestone W01-358-6951 Industrial Air Spring For Smooth And Stable Operation

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6951

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product Number:	2B6951	Damping Force Direction:	Bidirectional
Quality:	100 % Tested	Fuction:	Reduce Shock
Key:	Firestone W01-358-6951	Trademark:	GUOMAT Air Spring
Structure:	Double Convoluted	Type:	Gas-Filled
Highlight:	W01-358-6951 Industrial Air Spring , Firestone W01-358-6951 Industrial Air Spring

Firestone W01-358-6951 Industrial Air Spring For Smooth And Stable Operation

Product Specification And Technical Data

AIRSTROKE ACTUATOR
Maximum Diameter @ 100 PSIG (inches)	10.4
Maximum Height (inches)	11
Maximum Stroke (inches)	8
Minimum Usable Height (inches)	3
Force @ 80PSI at Stroke of 1 Inch (pounds)	4125
Force @ 80PSI at Stroke of 3 Inch (pounds)	3753
Force @ 80PSI at Stroke of Maximum Stroke (pounds)	2122
Material	2-Ply Standard Cord
END CLOSURE DETAILS
Bead plate Type	3
Blind Nut Centers (inches)	3.5
Port Offset from Blind Nut Centerline (inches)	1.75
AIRMOUNT ISOLATOR
Design Height	10
Load (at Design Height) at: 40 psig (pounds)	1184
Load (at Design Height) at: 60 psig (pounds)	1848
Load (at Design Height) at: 80 psig (pounds)	2531
Natural Frequency (@80 psig) (cpm)	97
% of Isolation at Forced Frequency 400 CPM	93.7
% of Isolation at Forced Frequency 800 CPM	98.5
% of Isolation at Forced Frequency 1500 CPM	99.5

Cross References

Fire stone. W01-358-6951

Fire stone. W01 358 6951

Fire stone. W013586951

CONTITECH FD 200-25

CONTITECH FD 200 25

CONTITECH FD 20025

GOODYEAR 556238332

FIRE STONE W01-358-0305/20-2

FIRE STONE W01 358 0305/20-2

FIRE STONE W013580305/20-2

Product Advantages

100% Brand New
Durable and long service life.
Direct replacement for your old or broken one, easy installation.
Built to meet standard specification, strictly follow factory quality control.
Due to the light and screen difference, the item's color may be slightly different from the pictures.

FAQ

Q: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world

Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.

Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

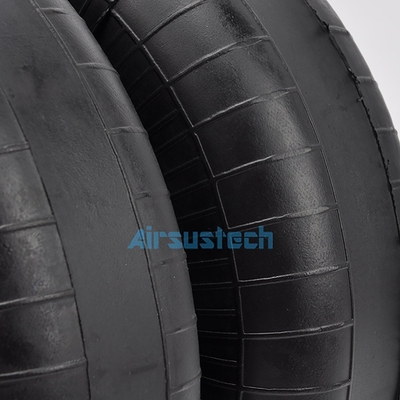

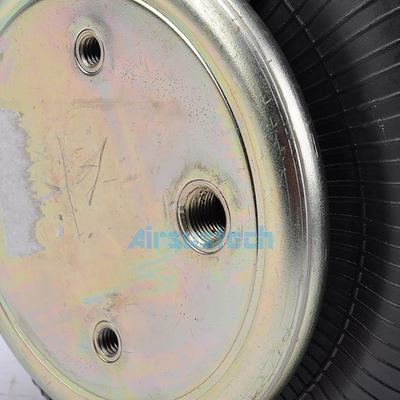

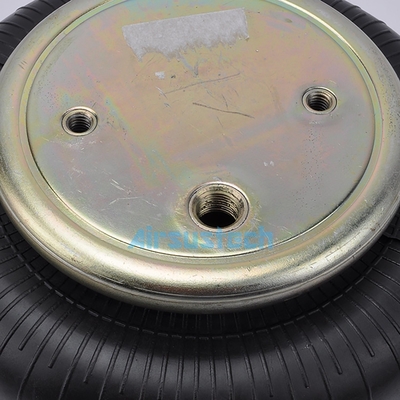

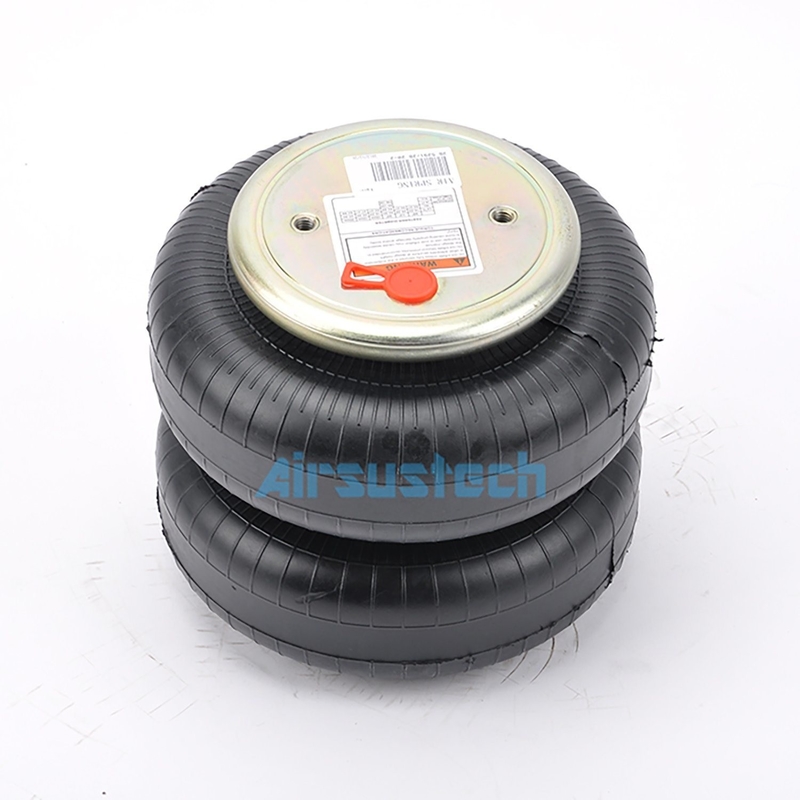

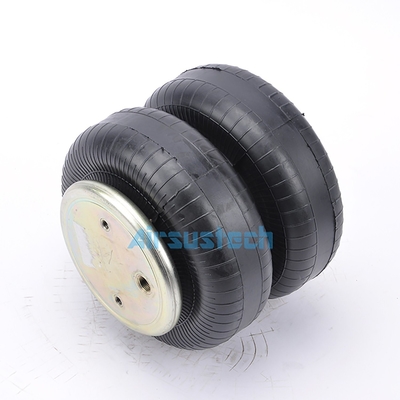

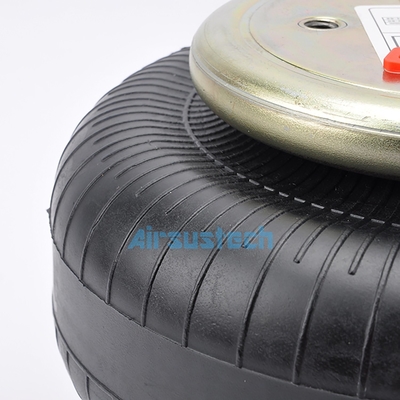

The Related Picture of 2B6951

Firestone W01-358-6951 Industrial Air Spring For Smooth And Stable Operation 0
