W01-358-7136 Firestone Pneumatic Bellow Double Convoluted Air Rubber Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B53022

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2B53022	Spring Material:	Rubber And Steel
Fuction:	Shock Absorption	Goodyear Air Spring:	2B14-356
Trademark:	GUOMAT	After-sales Service:	12 Months
Operation:	Gas-Filled	Sample:	Available
Highlight:	Double Convoluted Air Rubber Bellow , W01-358-7136 Double Convoluted Air Rubber Bellow

W01-358-7136 Firestone Pneumatic Bellow Double Convoluted Air Rubber Bellow

Product Introduction

The GUOMAT Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.

Product Specification

Top Cover Plate Diameter: 315 mm

Screw Center Distance of Top Cover Plate: 159mm

Bottom Cover Plate Diameter: 315 mm

Screw Center Distance of Bottom Cover Plate: 159mm

Top Cover Plate Screw(Nut) Tooth: 4×M10×1.5

Bottom Cover Plate Screw(Nut) Tooth: 4×M10×1.5

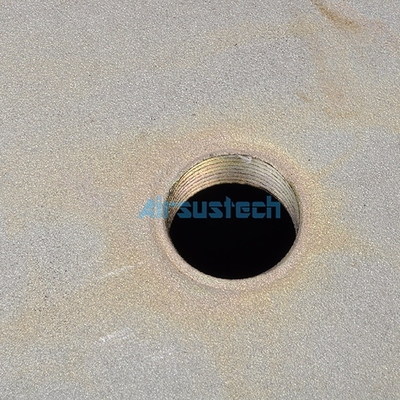

Air Hole: Rc 1/4

Rubber Bellow Dia: 360 mm

Max. Dia.: 385 mm

Minimum Height: 90 mm

Maximum Height: 300 mm

Cross References

Firestone Air Spring	W01-358-7136, W01 358 7136, W013587136 WO1-358-7136, WO1 358 7136, WO13587136 W01-358-7146, W01 358 7146, W013587146 WO1-358-7146, WO1 358 7146, WO13587146 W01-358-7143, W01 358 7143, W013587143 WO1-358-7143, WO1 358 7143, WO13587143
Goodyear Air Spring	2B14-356, 2B14 356, 2B14356 2B14-453, 2B14 453, 2B14453 2B14-355, 2B14 355, 2B14355 2B14-352, 2B14 352, 2B14352
Contitech Air Spring	556-22-8-554, 556 22 8 554, 556228554
Contitech Air Spring	FD530-22 321 ,FD530 22 321, FD53022321
Triangle Air Spring	6329, 4321
Dayton Air Spring	3547136
Leland Air Spring	Sc2014
Navistar Air Spring	554798C1
Hendrickson Auxillary Air Spring	QW12AX
Ridewell Air Spring	1003587136C
Tuthill Technology Air Spring	1626
Watson&Chalin Air Spring	As004
Brake & Wheel Air Spring	M3503

Product Features

GUOMAT manufactures efficient, strong, and premium 2B53022 air springs for all your vehicle steering needs. Not only is it efficient in performance, it is also extremely durable, providing long-lasting quality without compromising its effectiveness.
These 2B53022 air springs are made of high-quality materials, including metal, which ensures maximum stability, durability, and sustainability for demanding use, and is also equipped with the latest features for consistent, optimal performance. These products are certified and tested by regulatory boards to ensure safe use and superior quality.
When purchasing our products, you can also enjoy a host of after-sales services, including low-cost maintenance, installation guidance, and more. The GUOMAT air springs here are environmentally friendly, with features such as anti-corrosion and anti-rust, and have a longer service life.

FAQ

Q:Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.

Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.

Q: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world

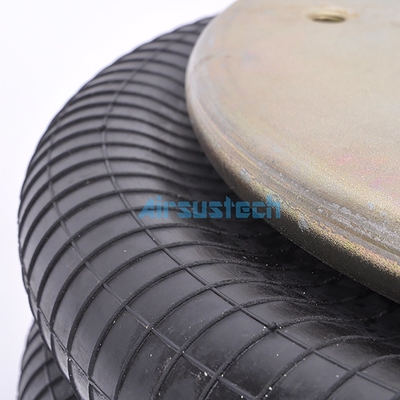

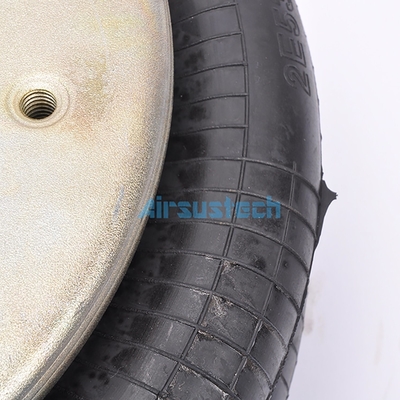

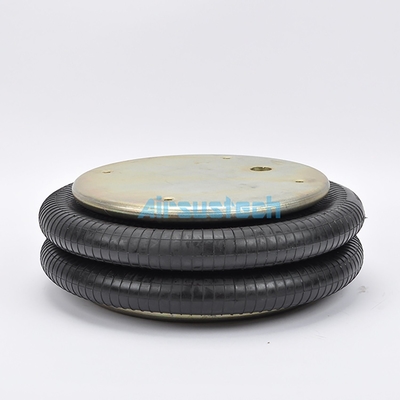

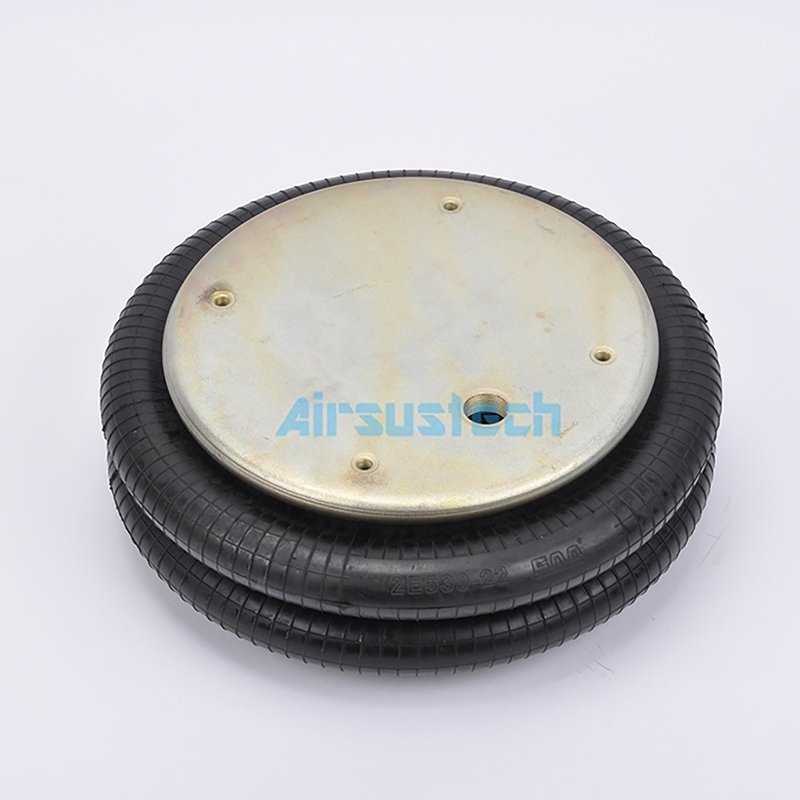

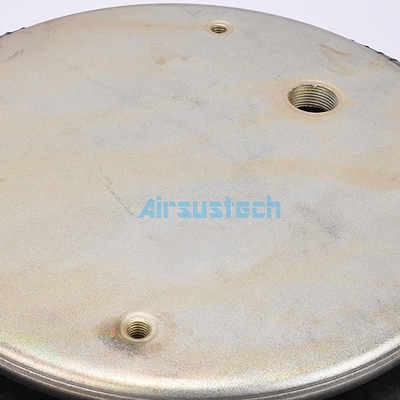

The Related Picture of 2B53022
