Contitech Dust Removal Equipment FD 120-17 Air Spring For Truck Suspension

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B12017

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Item Number:	2B12017	Material:	Rubber And Steel
Style:	Double Convoluted Air Spring	Key Word:	Contitech Fd120-17
Manufacturer:	GUOMAT	Part:	Air Spring/Air Lift/Air Suspension
Sample:	Available \| Customized Request	Truck Model:	For Firestone/Contitech/Goodyear,etc
Highlight:	FD 120-17 Air Spring , Truck Suspension Air Spring

Contitech Dust Removal Equipment FD120-17 Air S[ring For Truck Suspension

Product Specification

Bottom Cover Plate
Bottom Plate Alignment	Parallel
Bottom Plate Center To Center Diameter	2.76 in.
Bottom Plate Diameter	5.55 in.
Bottom Plate Hole Quantity	2
Bottom Plate Type	Steel
Top Cover Plate
Top Plate Alignment	Parallel
Top Plate Center To Center Diameter	2.76in.
Top Plate Diameter	5.55 in.
Top Plate Hole Quantity	3
Top Plate Type	Steel
Rubber Bellow
Bellow Maximum Diameter	8.46 in.
Compressed Height	3 in.
Spring Type	Double Convoluted
Air Hole/Air Inlet/Gas Hole/Gas Fitting
Air Inlet	3/4 NPT
Nut/Blind Nuts Type	2×3/8UNC

Product Technical Data Sheet

Force[kN]

Pressure p	[psi]	40	60	80	100	120	Vol. V[in.³]
Height H [in.³]	8.0	681	1070	1440	1820	2180	240
	7.0	885	1340	1790	2260	2710	220
	6.0	1070	1580	2210	2650	3170	200
	5.0	1210	1790	2390	3000	3570	170
	4.0	1330	1970	2640	3310	3910	140
	3.0	1420	2120	2840	3560	4160	120

Refer Number

Contitech	FD 120-17, FD 120 17, FD120-17, FD120 17, FD12017
Firestone	W01-358-7235, W01 358 7235, W013587235 WO1-358-7235, WO1 358 7235, WO13587235
Goodyear	2B8-150, 2B8 150, 2B8150, 2B8-153, 2B8 153 2B8153, 2B8-550, 2B8 550, 2B8550, 579923530
Triangle	6392, 4509
American Carrier	8003006
E.R.F	1398567
Mack	227QS32, 57QK1113
Watson&Chalin	AS-0030, AS 0030, AS0030
Hendrickson	NA1821, NA 1821, S14395, S 14395
Ridewell	1003587325C
SAF Holland	57007325
Sauer	P10754, P 10754
Terberg	21065660
Tirescone	26C

Storage Precautions

Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight
Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced
Air springs are best stored in a free state without any external force
Do not store in an environment with a temperature exceeding 50 degrees Celsius

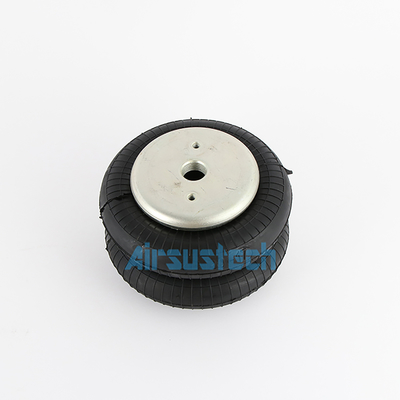

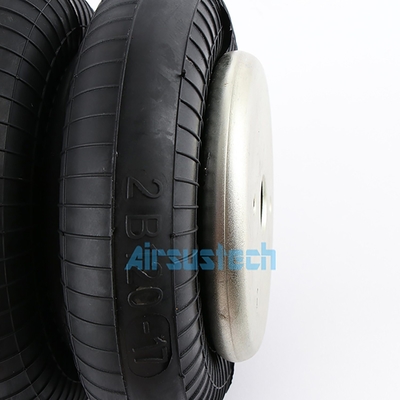

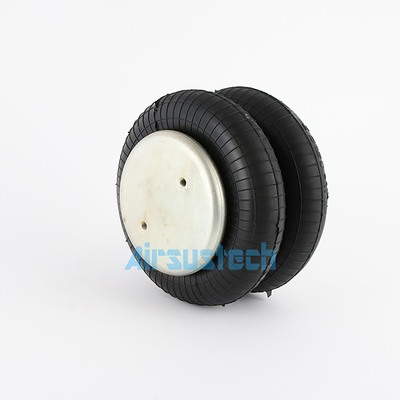

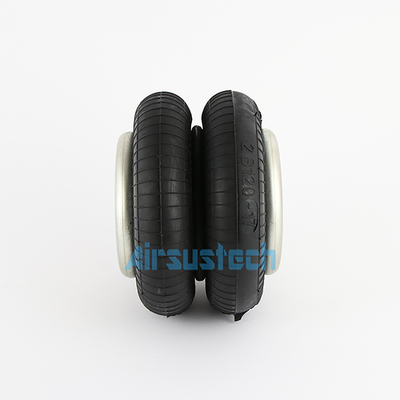

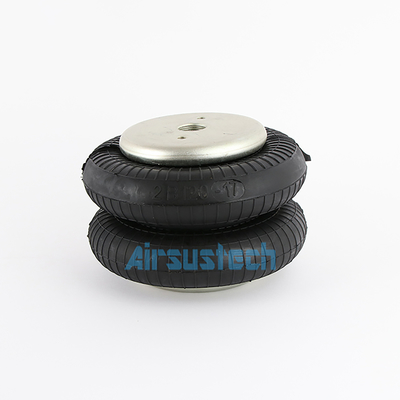

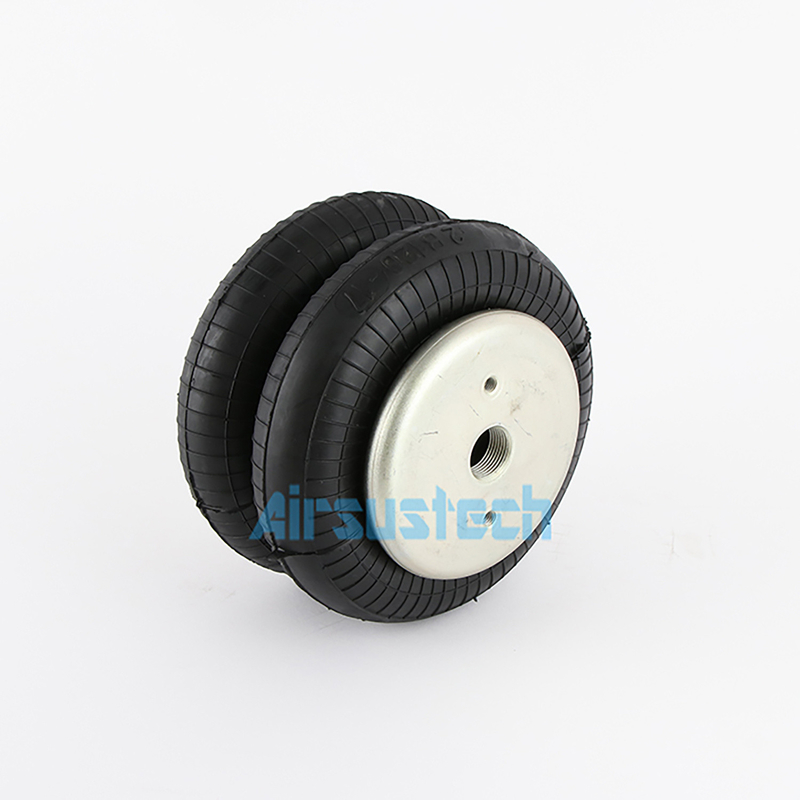

2B12017 Detailed Images

Contitech Dust Removal Equipment FD 120-17 Air Spring For Truck Suspension 1
